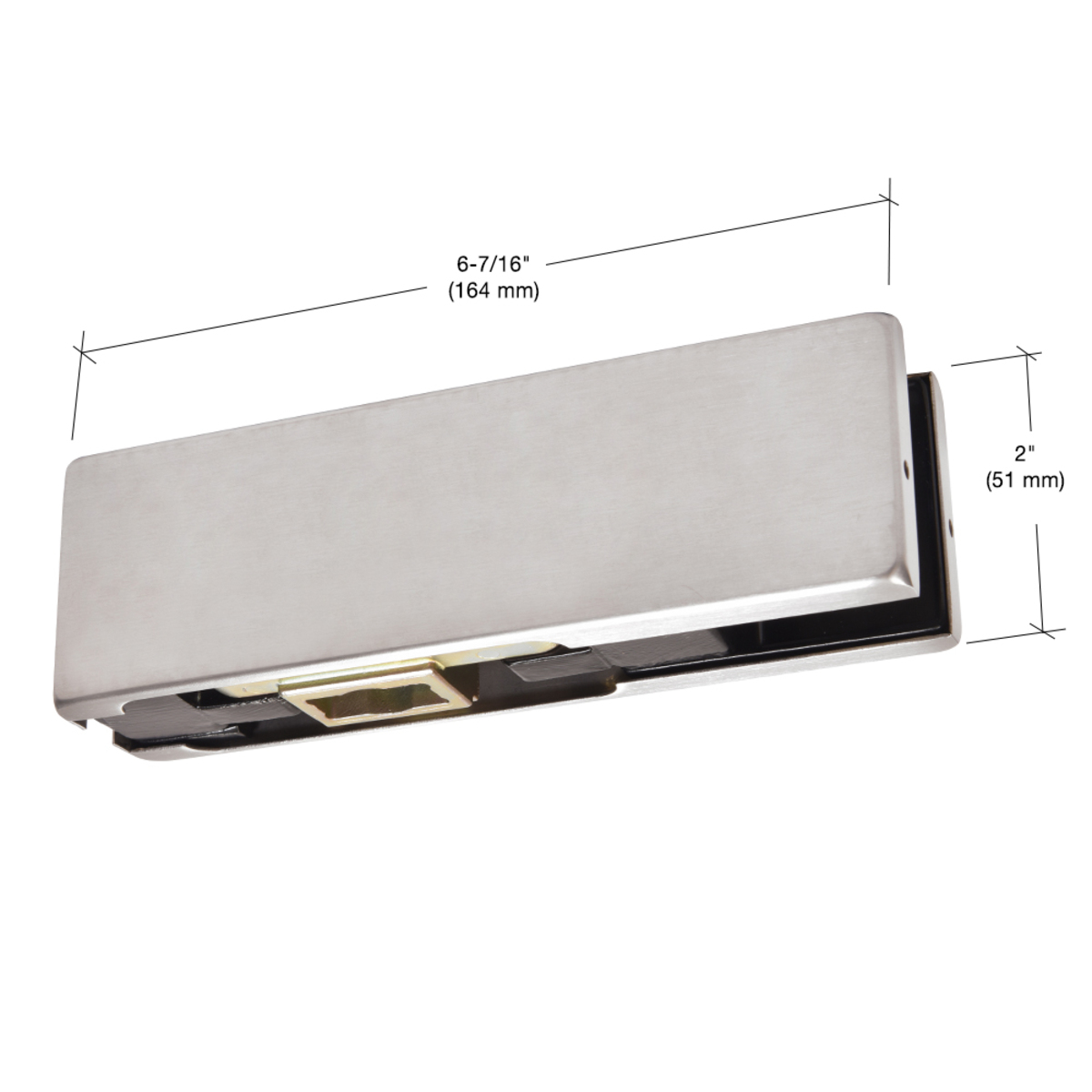

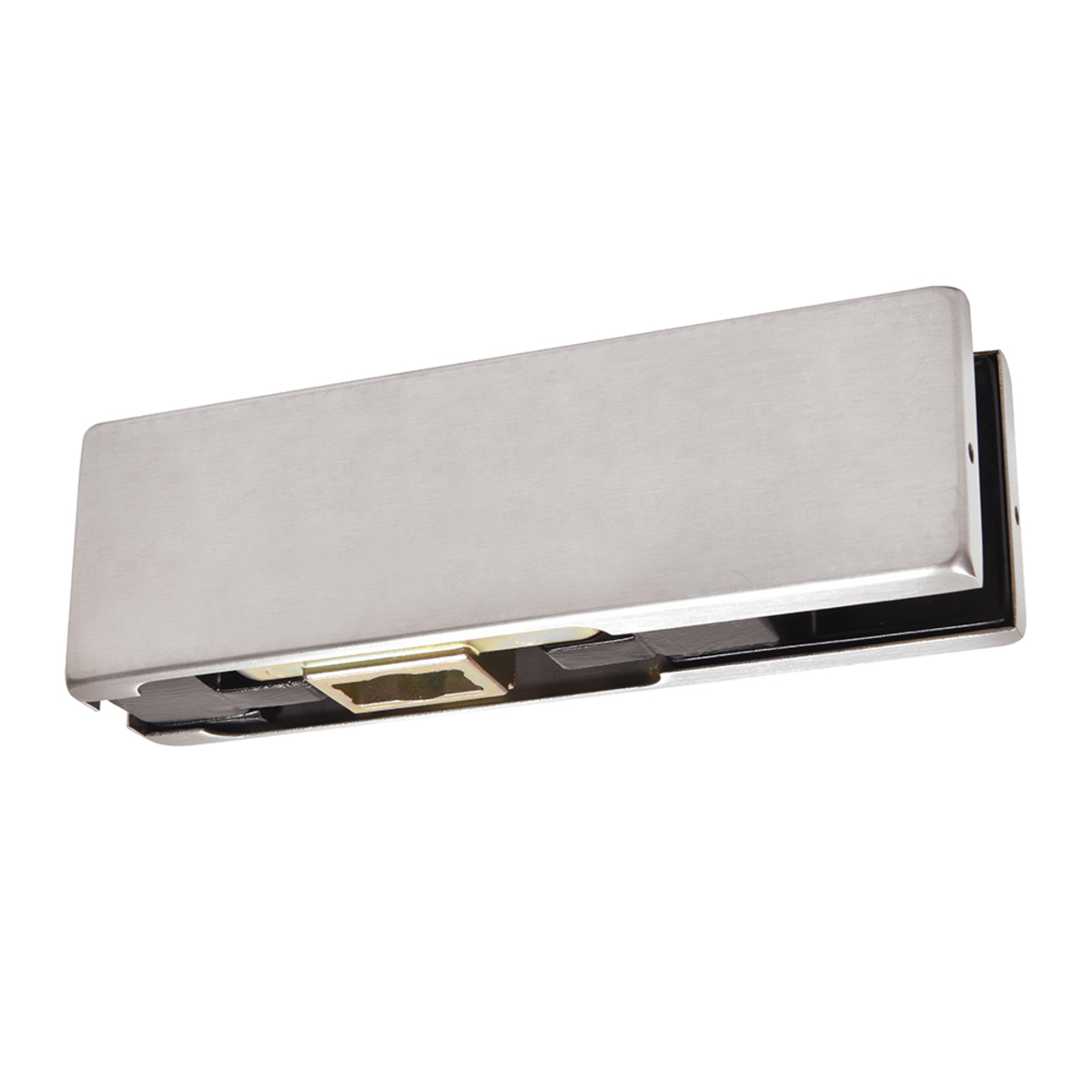

CRL PT1034BS DORMAKABA Brushed Stainless Bottom Door Patch Fitting with Bottom Insert is designed for seamless integration with 3/4" (19 mm) monolithic tempered glass, enhancing the aesthetics and functionality of your door systems. This fitting boasts a 2-3/4" (70 mm) pivot setback, ensuring precise alignment and smooth operation. The DORMAKABA® Bottom Patch Fitting is specifically engineered for use with bottom door pivots or floor closers, fitting neatly into the lower corner of the glass panel. It requires a hole and cut-out in the glass for installation, and each unit comes with a template and instructions for hassle-free assembly. This fitting accommodates doors with a maximum height of 102" (2.59 m), a maximum weight of 194 lbs. (88 kg), and a maximum width of 42" (1.09 m). For doors exceeding these specifications, full door rails are recommended to ensure stability and safety. Crafted from brushed stainless steel, this fitting combines durability with a modern finish, although regular maintenance is advised to preserve its appearance. Note that this product is not suitable for laminated glass, ensuring optimal performance and safety in your architectural applications.
DORMAKABA Brushed Stainless Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/4 in. (19 mm)
Pivot Setback: 2-3/4
Series: DORMAKABA®
Shipping Limitations: None
Type: Bottom
With Insert: Yes

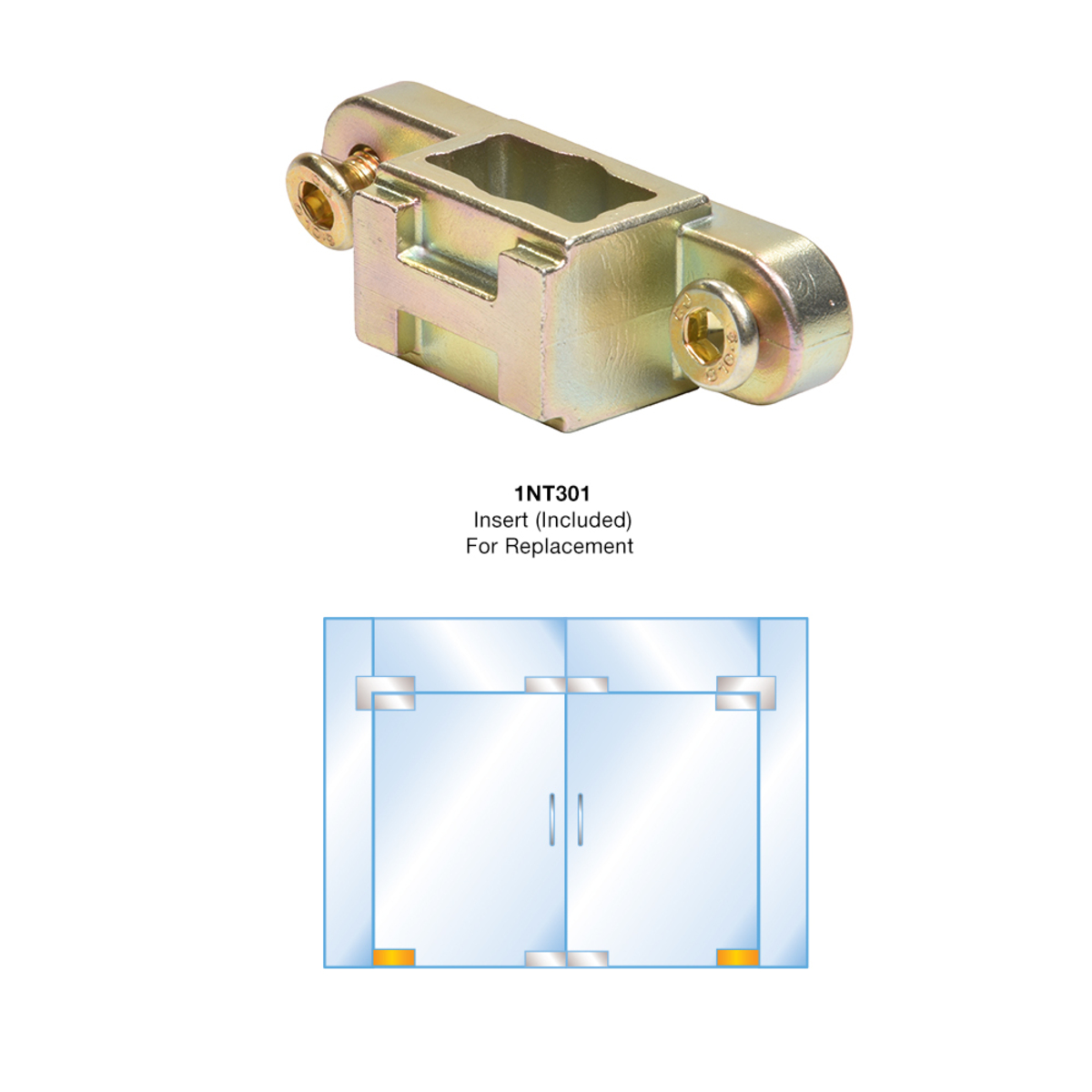

Works With: 1NT301 Insert
