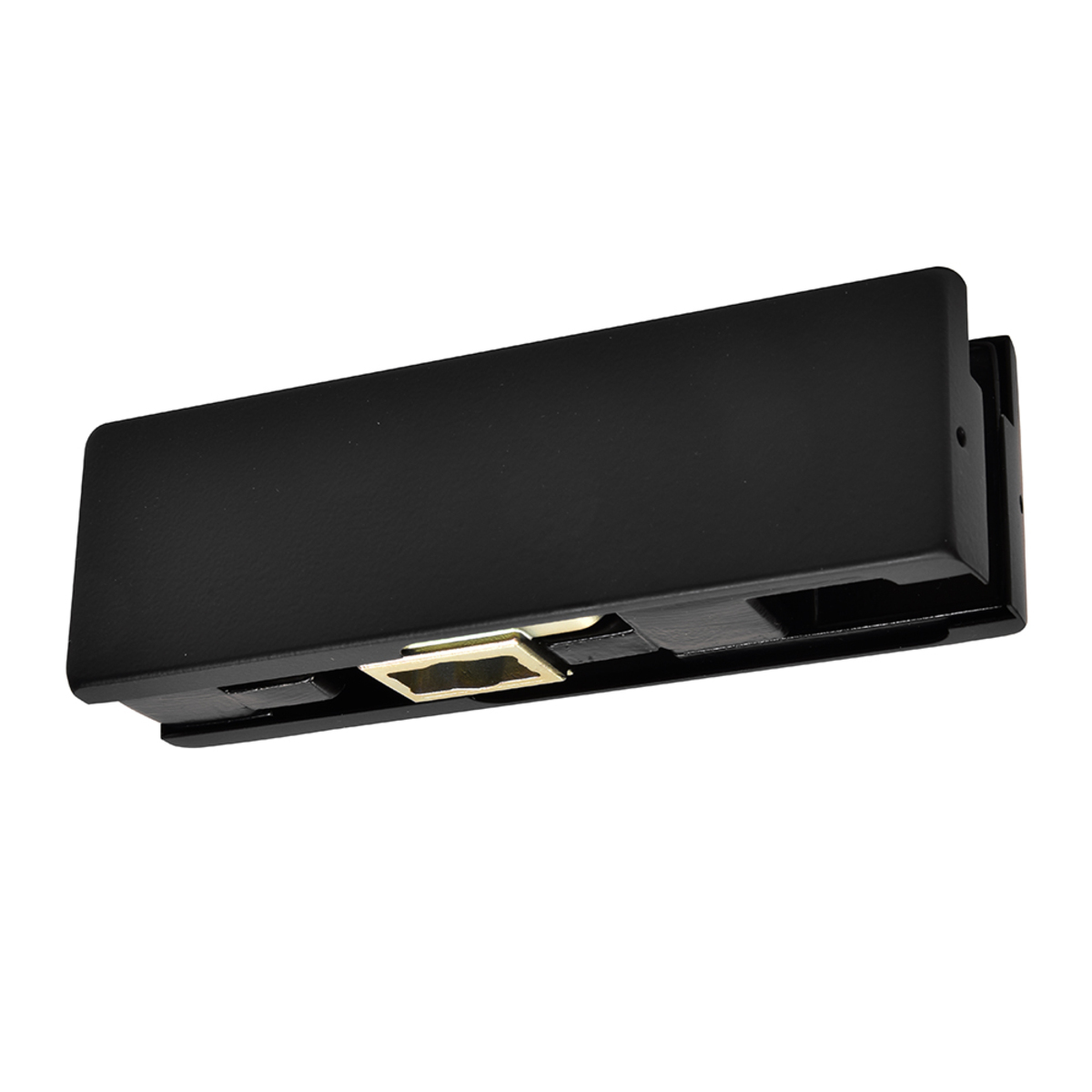

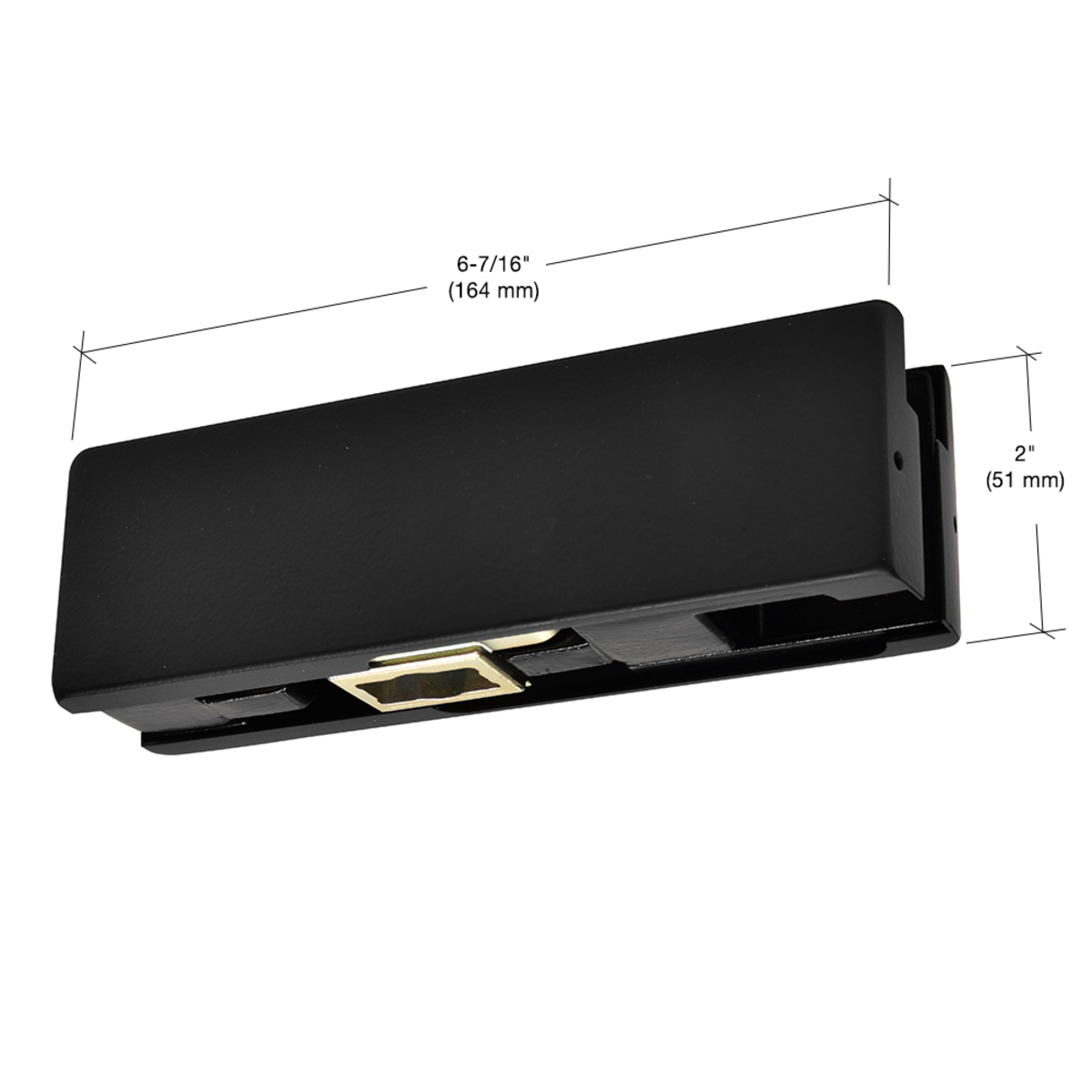

C.R. Laurence PT1034MBL DORMAKABA Matte Black Bottom Door Patch Fitting with Bottom Insert for 3/4" Glass offers a sleek and professional solution for your glass door installations. Designed specifically for monolithic tempered glass, this fitting accommodates glass thickness of 3/4" (19 mm) and features a 2-3/4" (70 mm) pivot setback, ensuring a secure and reliable fit. Ideal for use with bottom door pivots or floor closers, this bottom patch fitting fits seamlessly into the lower corner of the glass panel. To achieve the correct installation, a diameter hole and corner notch must be fabricated into the glass. With a maximum height capacity of 102" (2.59 m) and a weight limit of 194 lbs. (88 kg), it provides flexibility for various door designs, with a maximum width of 42" (1.09 m). Included with your purchase are a template and instructions for straightforward installation. Note that laminated glass is not compatible with this fitting. Available in a modern matte black finish, the PT1034MBL not only enhances functionality but also elevates the aesthetic appeal of your space. For those seeking a reliable solution in architectural hardware, this bottom door patch fitting is an excellent choice.
DORMAKABA Matte Black Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass
DORMAKABA® Bottom Patch Fittings are used with our bottom door pivots or floor closers. It fits in the lower corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed or polished stainless steel finishes.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/4 in. (19 mm)
Pivot Setback: 2-3/4
Series: DORMAKABA®
Shipping Limitations: None
Type: Bottom
With Insert: Yes
Works With: 1NT301 Insert
