CRL PT2034BS DORMAKABA Brushed Stainless Top Door Patch Fitting for 3/4" Glass

Your Price: $208.73

Retail Price:$249.88

Your Savings:$41.15(16%)

The CRL PT2034BS DORMAKABA Top Door Patch Fitting offers durable brushed stainless steel support for 3/4" tempered glass doors.

Part Number : CRL_PT2034BS

Availability: 67 In Stock

Quantity

Description

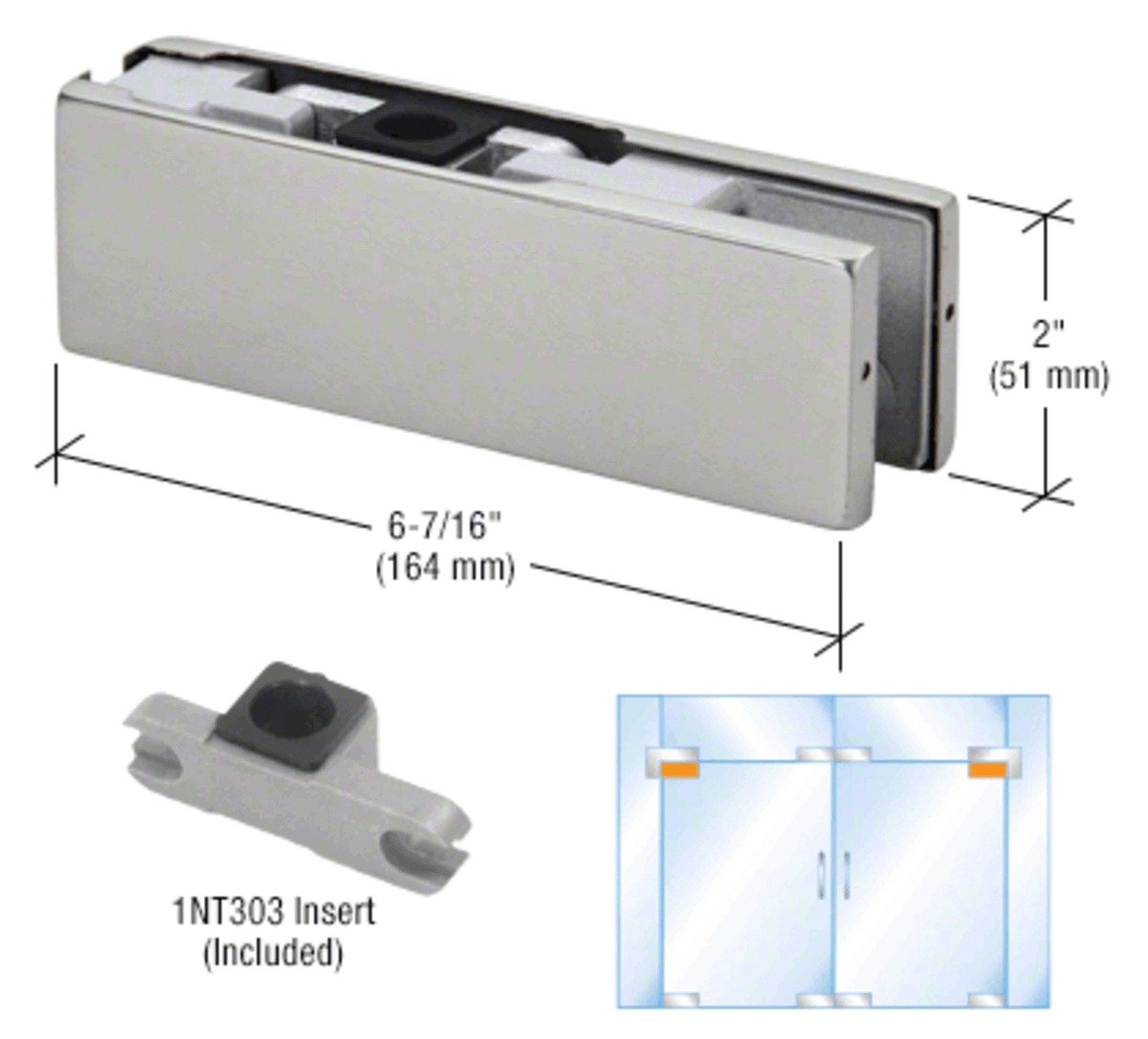

CRL PT2034BS DORMAKABA Brushed Stainless Top Door Patch Fitting for 3/4" Glass

C.R. Laurence PT2034BS DORMAKABA Brushed Stainless Top Door Patch Fitting with Pivot Insert for 3/4" Glass is designed for those seeking durability and elegance in their glass installations. This top patch fitting accommodates 3/4" (19 mm) monolithic tempered glass, making it a versatile choice for various door applications. Crafted with 304 alloy stainless steel covers, it offers a brushed finish that not only enhances aesthetic appeal but also provides resistance to corrosion, ensuring long-lasting performance. With a pivot setback of 2-3/4" (70 mm), this fitting easily integrates into the upper corner of the glass panel, requiring a precise hole and corner notch for installation. Engineered for maximum efficiency, the PT2034BS supports doors with a maximum height of 102" (2.59 m), a weight limit of 194 lbs. (88 kg), and a width up to 42" (1.09 m). For heavier or wider doors, full door rails are recommended. Each unit comes with a template and instructions, simplifying the installation process. This product exemplifies C.R. Laurence's commitment to quality, providing professionals and discerning homeowners with a reliable solution for their architectural glass needs. Regular maintenance is advisable to keep its finish pristine and prolong its lifespan.

DORMAKABA Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass

For 3/4" (19 mm) Glass
Use Monolithic Tempered Glass
304 Alloy Stainless Steel Covers
2-3/4" (70 mm) Pivot Setback

DORMAKABA® Top Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed and polished stainless steel finishes.

The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/4 in. (19 mm)

Insert Type: 1NT303

Pivot Setback: 2-3/4

Series: DORMAKABA®

Shipping Limitations: None

Type: Top

With Insert: Yes
