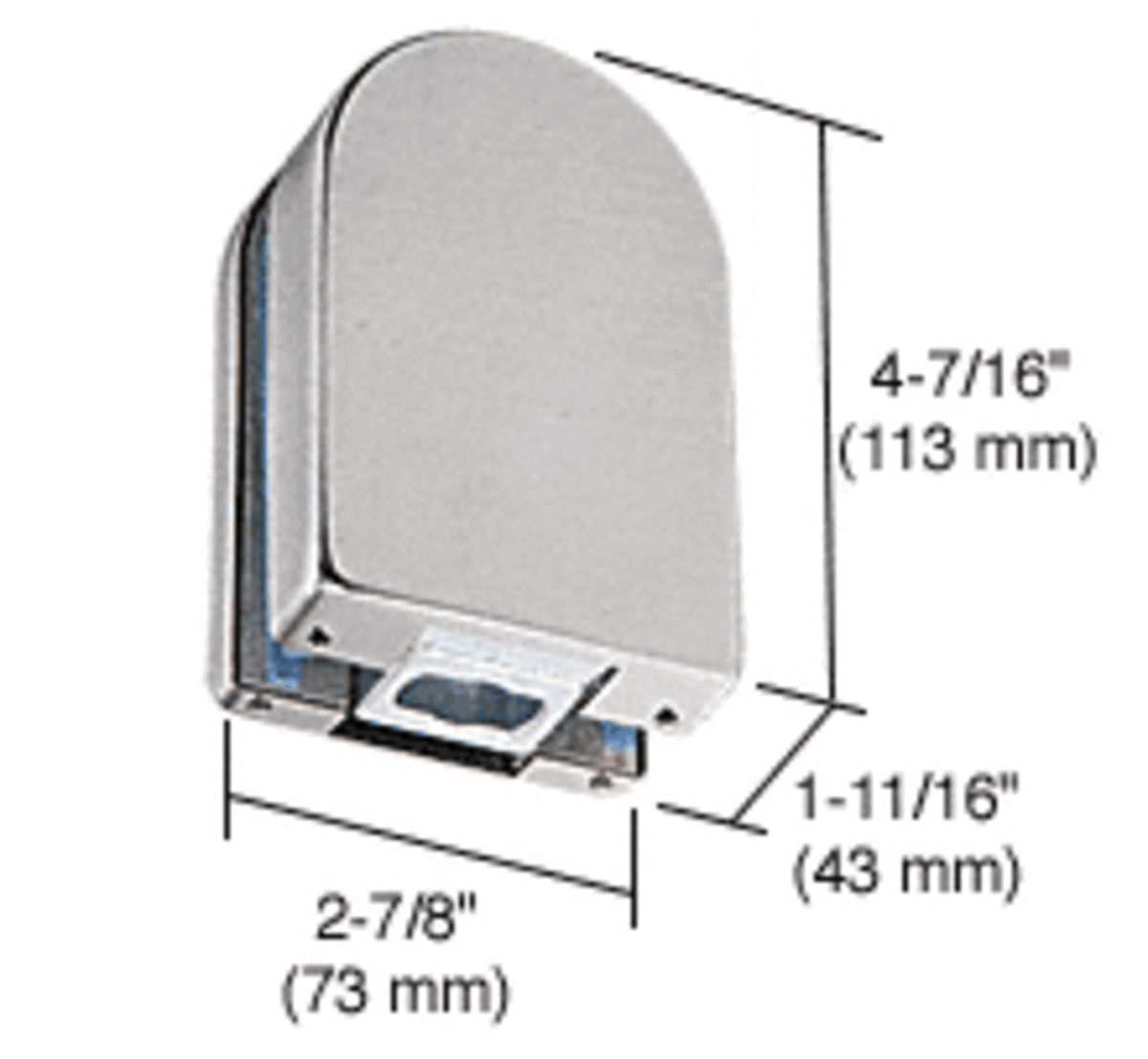

C.R. Laurence PTH21BS Brushed Stainless PTH Series Bottom Door Patch Fitting offers a robust solution for both single and double doors, transoms, and sidelites. Designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this fitting combines style and functionality with its high-density cast body and precision-engineered components. The PTH21BS is equipped with a floor closer type insert, a finished cover plate, and gaskets, ensuring a secure and seamless installation. Complementing various CRL floor closers, this fitting is compatible with the CRL8300, CRL8400, and CRL8500 series, as well as adjustable and standard bottom pivots. Measuring 4-7/16" in height and 1-3/16" in width, the PTH21BS is available in a sleek brushed stainless steel finish, enhancing both aesthetic appeal and durability. It is important to note that glass fabrication is required, including two 13/16" (20 mm) diameter holes and one notch, with a template provided for ease. While stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. This versatile fitting not only elevates the design of any space but also ensures reliable performance, making it an essential addition to your architectural hardware collection.
Brushed Stainless PTH Series Bottom Door Patch Fitting
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 4-7/16 in. (113 mm)
Series: PTH
Shipping Limitations: None
Type: Bottom
Width: 1-3/16 in. (30 mm)
With Insert: No
