C.R. Laurence PTH310BS Brushed Stainless Glass Mount Lever Lock for Metal Frame Doors offers a sophisticated solution for securing single acting doors. Designed specifically for 3/8" or 1/2" (10 mm or 12 mm) monolithic tempered glass, this lock features a slimline design that seamlessly integrates with modern architectural aesthetics. Installation requires two 1-3/4" (44.5 mm) holes for glass fabrication, ensuring a precise fit. The lock comes equipped with the EC3 and EC4 Series cylinder/thumbturn mechanism, including three keys each, along with a template and detailed instructions for easy setup. With a height of 2-5/8" (67 mm) and a length of 4-5/8" (117 mm), this lever lock is compact yet robust, providing reliable performance. While brushed stainless steel provides a contemporary finish that resists corrosion, it is important to note that it is not rust or stain proof. Regular maintenance is recommended to preserve its factory appearance. The C.R. Laurence PTH310BS lever lock is an ideal choice for building professionals and discerning homeowners looking for a blend of functionality and elegance in their door hardware.
Brushed Stainless Glass Mount Lever Lock for Metal Frame Doors
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glass Mounting Holes Diameter: 1-3/4 in. (44 mm)
Glazing Thickness: 3/8 in. or 1/2 in. (10 mm or 12 mm)

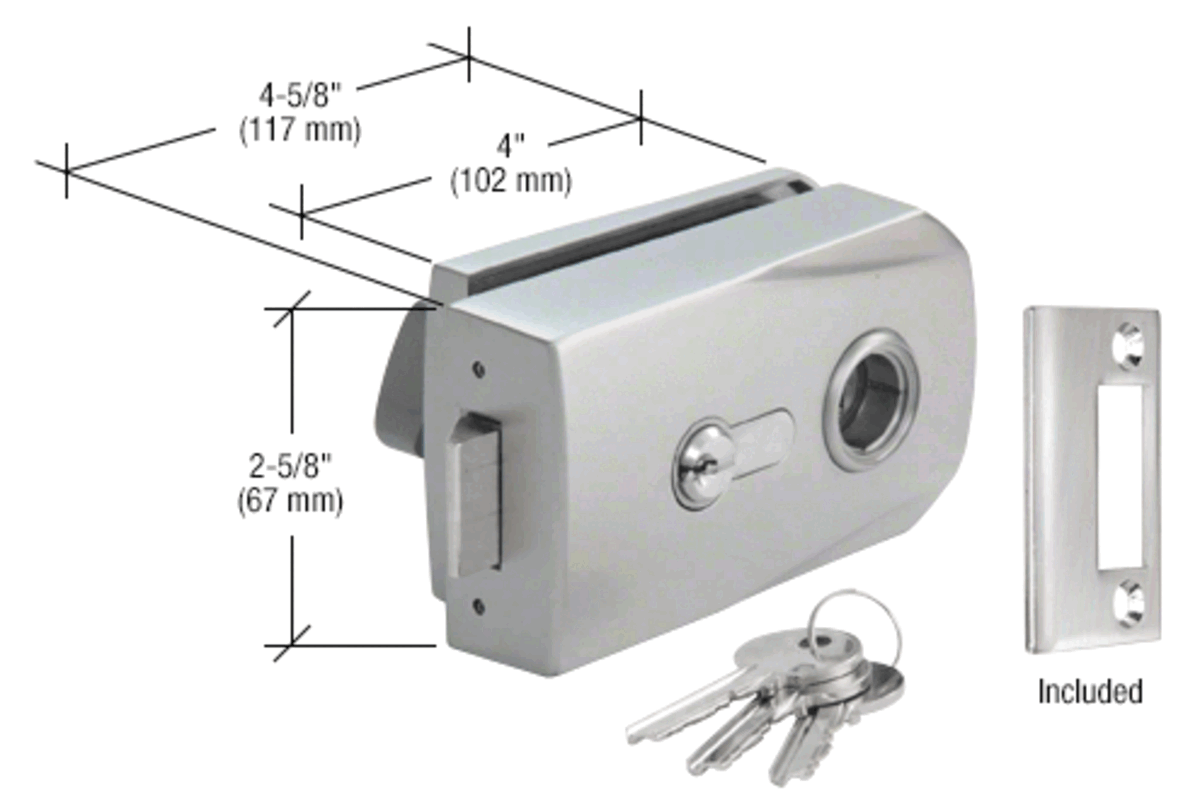

Height: 2-5/8 in. (67 mm)
Length: 4-5/8 in. (117 mm)
Series: Slimline
Shipping Limitations: None
