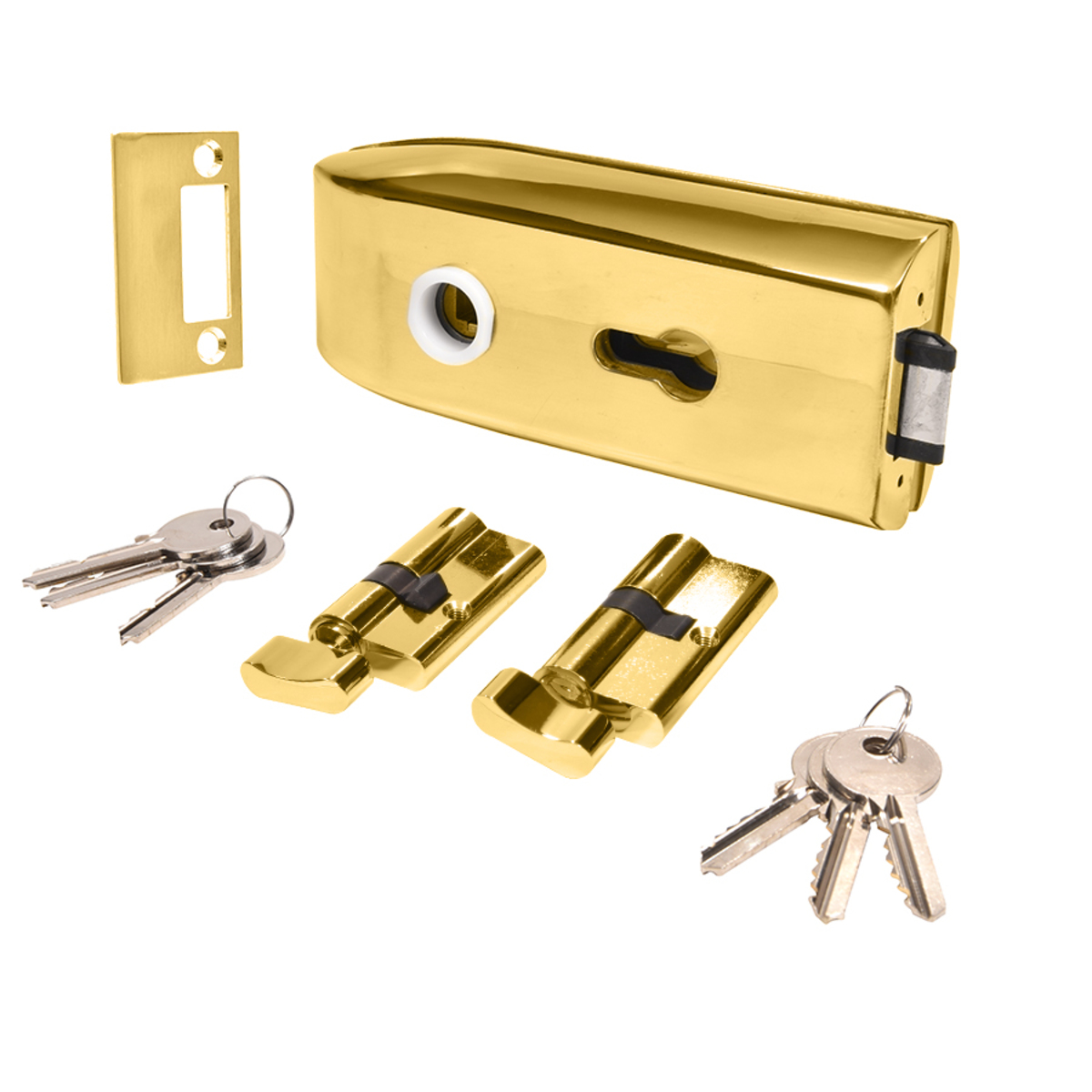

CRL PTH311BR Polished Brass Glass Latch with Lock and ThumbturnC.R. Laurence PTH311BR Polished Brass Glass Mounted Latch With Lock and Thumbturn offers a sophisticated solution for securing glass doors with style and functionality. Designed to accommodate both single and double doors, this latch is compatible with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, ensuring durability and strength. The latch features a field-reversible design, allowing for flexibility in installation, while its construction from 304 grade stainless steel guarantees long-lasting performance. Each unit comes equipped with the EC3 and EC4 series cylinder/thumbturn, complete with three keys, a template, and clear instructions for seamless installation. Notably, lever handles are sold separately, allowing for customization to suit your aesthetic preferences. For double door applications, it is essential to secure the door with a lock at the bottom to maintain safety and stability. The latch requires specific glass fabrication, including two 1-7/8" (48 mm) holes, ensuring a precise fit. While the polished brass finish adds an elegant touch, it is important to note that brass can be prone to oxidation, leading to a tarnished appearance over time. This latch not only enhances the security of your glass doors but also elevates their overall design.
Polished Brass Glass Mounted Latch With Lock and Thumbturn
- Works on Single or Double Doors
- For 3/8" or 1/2" (10 or 12 mm) Monolithic Tempered Glass
- Field Reversible
- 304 Grade Stainless Steel
- Lever Handles Ordered Separately
- Use Monolithic Tempered Glass
The
CRL PTH311 Glass Mounted Latch comes assembled for use with the EC4 Keyed Cylinder on all outswing and on inswing doors without a PTH314 Glass Mounted Latch Keeper. When used on inswing door with PTH314, the EC3 Extended Length Keyed Cylinder must be used.
NOTE: When used on double door applications, the door with the keeper should be secured in place with a lock at the bottom of the door.
GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) Holes
COMES WITH:
EC3 and EC4 Series Cylinder/Thumbturn with 3 Keys, Template, and Instructions.
Product Warning:
Lever Handles Ordered Separately
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glass Mounting Holes Diameter: 1-7/8 in. (48 mm)
Glazing Thickness: 3/8 in. or 1/2 in. (10 mm or 12 mm)
Height: 2-7/8 in. (73 mm)
Length: 6-7/8 in. (175 mm)
Material: 304 Grade Stainless Steel
Shipping Limitations: None
