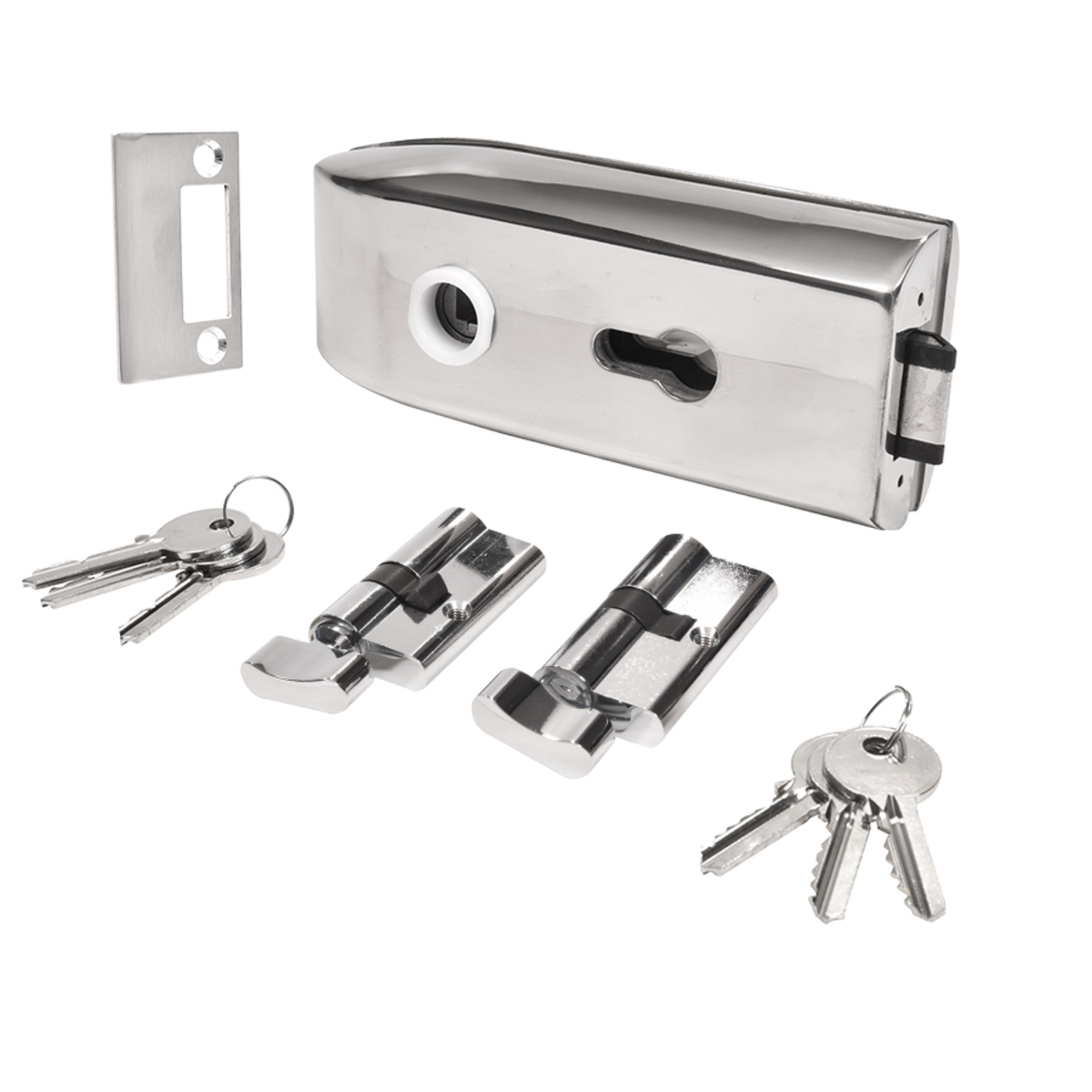

CRL PTH311PS Polished Stainless Glass-Mounted Latch with Lock and Thumbturn

C.R. Laurence PTH311PS Polished Stainless Glass Mounted Latch with Lock and Thumbturn offers a seamless blend of functionality and style for modern glass doors. Designed to accommodate both single and double doors, this latch is compatible with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, making it a versatile choice for various applications. Constructed from 304 grade stainless steel, the PTH311PS ensures durability and resistance to corrosion, although it is advisable to perform periodic maintenance to preserve its polished finish. The latch is field reversible, providing flexibility in installation, while the lever handles are ordered separately to allow customization. This model comes equipped with an EC3 and EC4 Series Cylinder/Thumbturn, including three keys, a template, and detailed instructions for easy setup. For double door configurations, a lock at the bottom of the door is recommended for added security. Glass fabrication requires two 1-7/8" (48 mm) holes, ensuring a precise fit. With a height of 2-7/8" (73 mm) and a length of 6-7/8" (175 mm), the PTH311PS is designed to enhance both security and aesthetic appeal in any architectural setting.

Polished Stainless Glass Mounted Latch with Lock and Thumbturn

• Works on Single or Double Doors
• For 3/8" or 1/2" (10 or 12 mm) Monolithic Tempered Glass
• Field Reversible
• 304 Grade Stainless Steel
• Lever Handles Ordered Separately
• Use Monolithic Tempered Glass

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• Instructions and Template pth311 instructions 1.pdf
• PTH311 Series Locking Latch Instructions and Template
