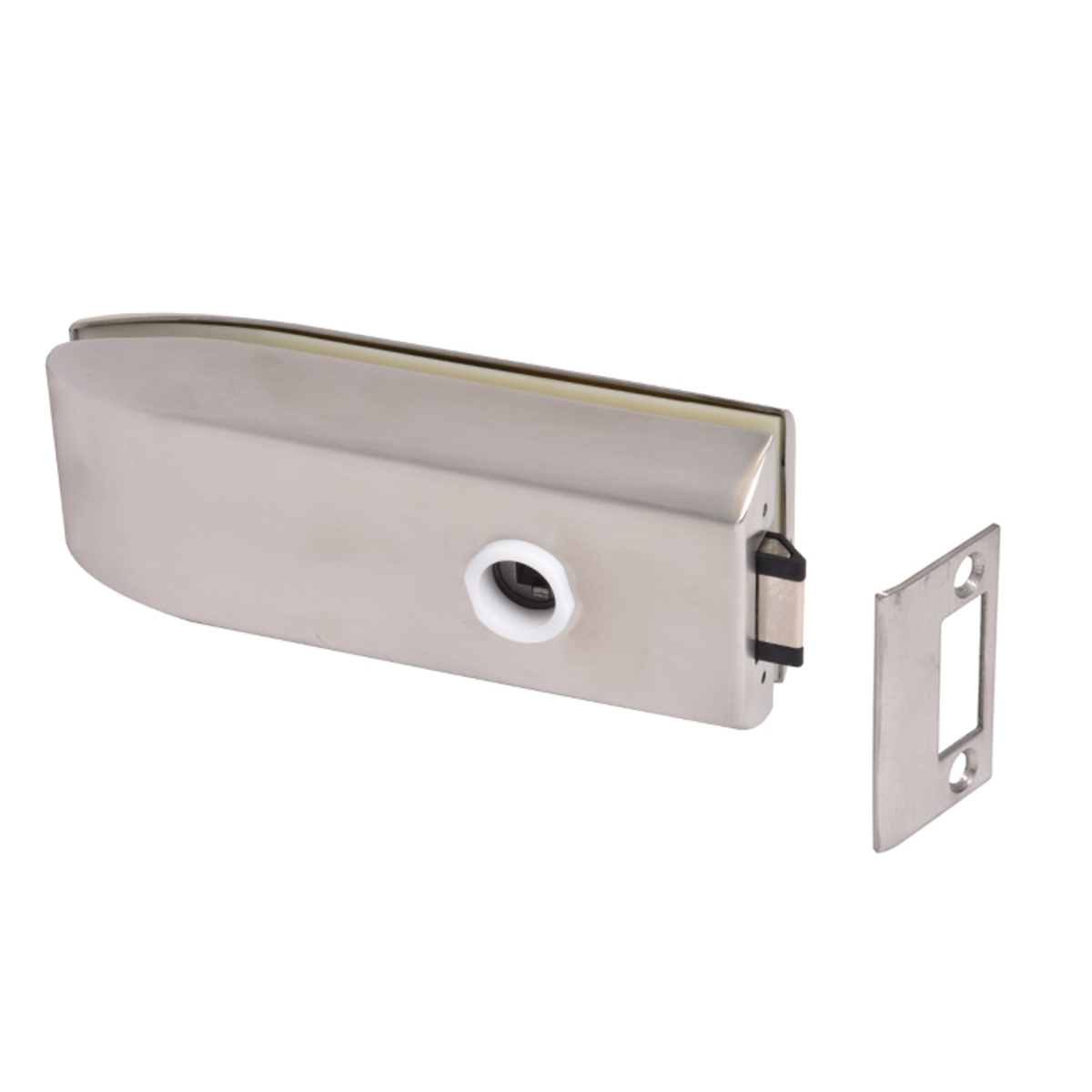

CRL PTH312BS Brushed Stainless Glass-Mounted Passage Latch

C.R. Laurence PTH312BS Brushed Stainless Glass Mounted Passage Latch offers a seamless solution for securing both single and double doors with elegance and durability. Designed specifically for 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this latch is constructed from 304-grade stainless steel, ensuring long-lasting performance and resistance to corrosion. The PTH312BS comes pre-assembled for immediate installation with the EC4 Keyed Cylinder on outswing doors and on inswing doors when paired with the PTH314 Glass Mounted Latch Keeper. For inswing applications utilizing the PTH314, the EC3 Extended Length Keyed Cylinder is required. Notably, when employed on double doors, it is crucial to secure the door with a bottom lock to ensure stability. Glass fabrication requires two 1-7/8" (48 mm) holes, allowing for a clean and professional finish. Included with your purchase are the EC3 and EC4 Series Cylinder/Thumbturn along with three keys, a template, and comprehensive installation instructions. It's essential to note that while the stainless steel finish is resistant to corrosion, regular maintenance is recommended to preserve its factory appearance. Enhance your architectural design with the elegance and functionality of the C.R. Laurence PTH312BS Brushed Stainless Glass Mounted Passage Latch.

Brushed Stainless Glass Mounted Passage Latch

• Works on Single or Double Doors
• For 3/8" or 1/2" (10 or 12 mm) Monolithic Tempered Glass
• 304 Grade Stainless Steel
• Use Monolithic Tempered Glass

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• Instructions and Template pth312 instructions 1-2.pdf
• PTH312 Series Passage Latch Instructions and Template
