C.R. Laurence PWC1EBS 316 Brushed Stainless Point Supported End Post offers a robust and stylish solution for a variety of applications such as small windbreaks, pool surrounds, and guard rails. Constructed from high-quality 316 grade stainless steel, this end post is available in two architectural finishes, ensuring it can seamlessly blend with your design aesthetic. Designed for use with 1/2" (12 mm) monolithic tempered glass and 9/16" (13.52 mm) laminated tempered glass, the PWC1EBS is non-handed, allowing for versatile installation. With a height of 16 inches (406 mm) and a base plate measuring 5 inches (127 mm) in both length and width, it provides a sturdy foundation featuring four mounting holes for secure attachment. This innovative post requires glass fabrication with two 3/4" (19 mm) diameter holes per post, and it can be installed on virtually any mounting substrate, meeting all safety requirements and building codes. Note that anchor bolts are sold separately. For maintenance, periodic care is recommended to preserve the factory finish and prevent corrosion. With its combination of durability and elegance, the C.R. Laurence PWC1EBS is an excellent choice for enhancing safety and style in any architectural project.

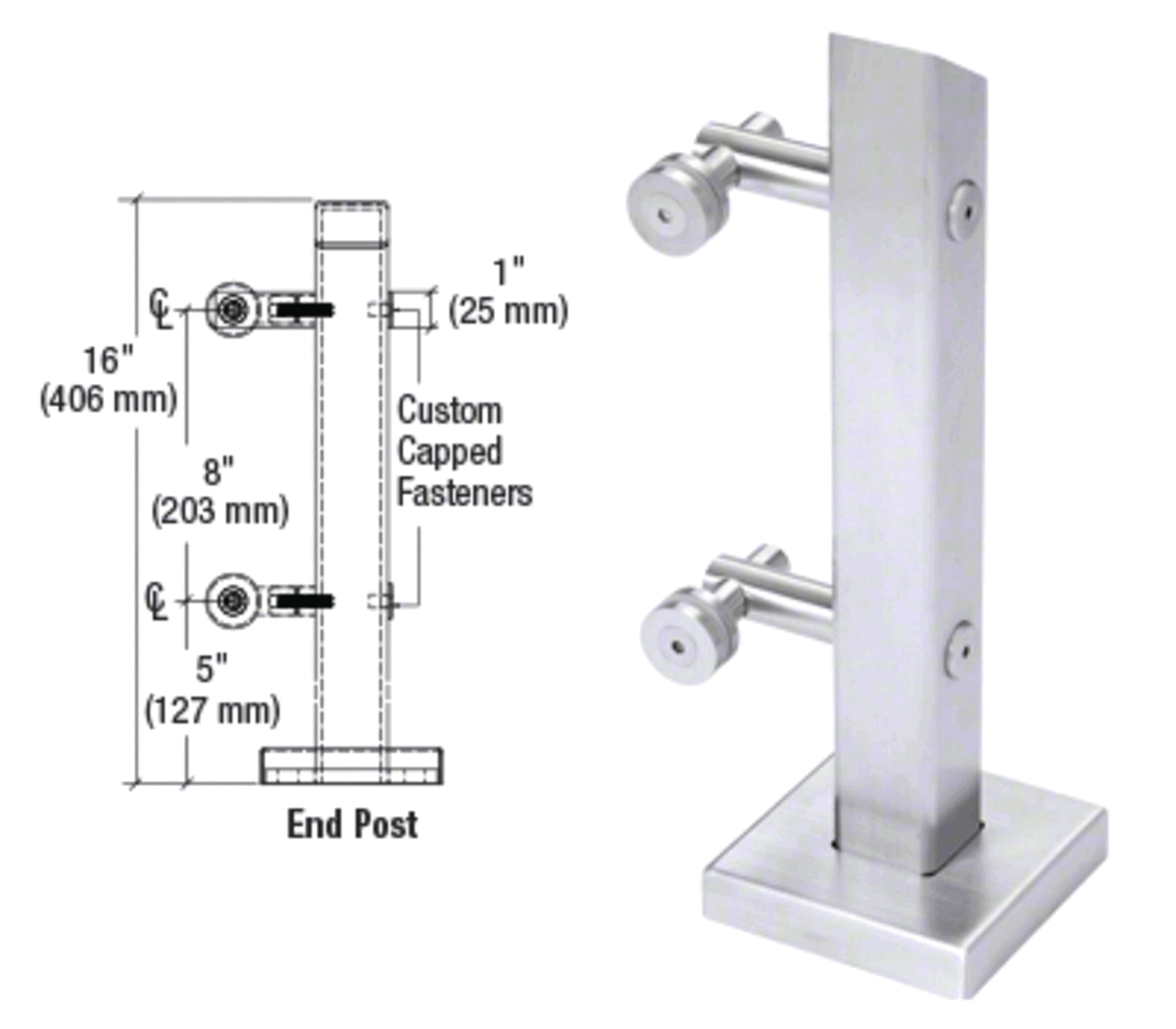

316 Brushed Stainless Point Supported End Post
CRL’s Point Supported Center and End Mini Posts are designed for small windbreaks, pool surrounds, and guard rails. These innovative Mini Posts can be installed on almost any mounting substrate, and meet virtually all safety requirements and building codes. Glass fabrication requires two 3/4" (19 mm) diameter holes per Post. NOTE: Anchor bolts sold separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Base Plate Cover Included: Yes
Base Plate Length: 5 in. (127 mm)
Base Plate Mounting Holes: 4
Base Plate Thickness: 3/8 in. (10 mm)
Base Plate Width: 5 in. (127 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Height: 16 in. (406 mm)
Material: 316 Stainless Steel
Mounting Hole Diameter: 9/16 in. (14 mm)
Profile: End Post
Shipping Limitations: None
