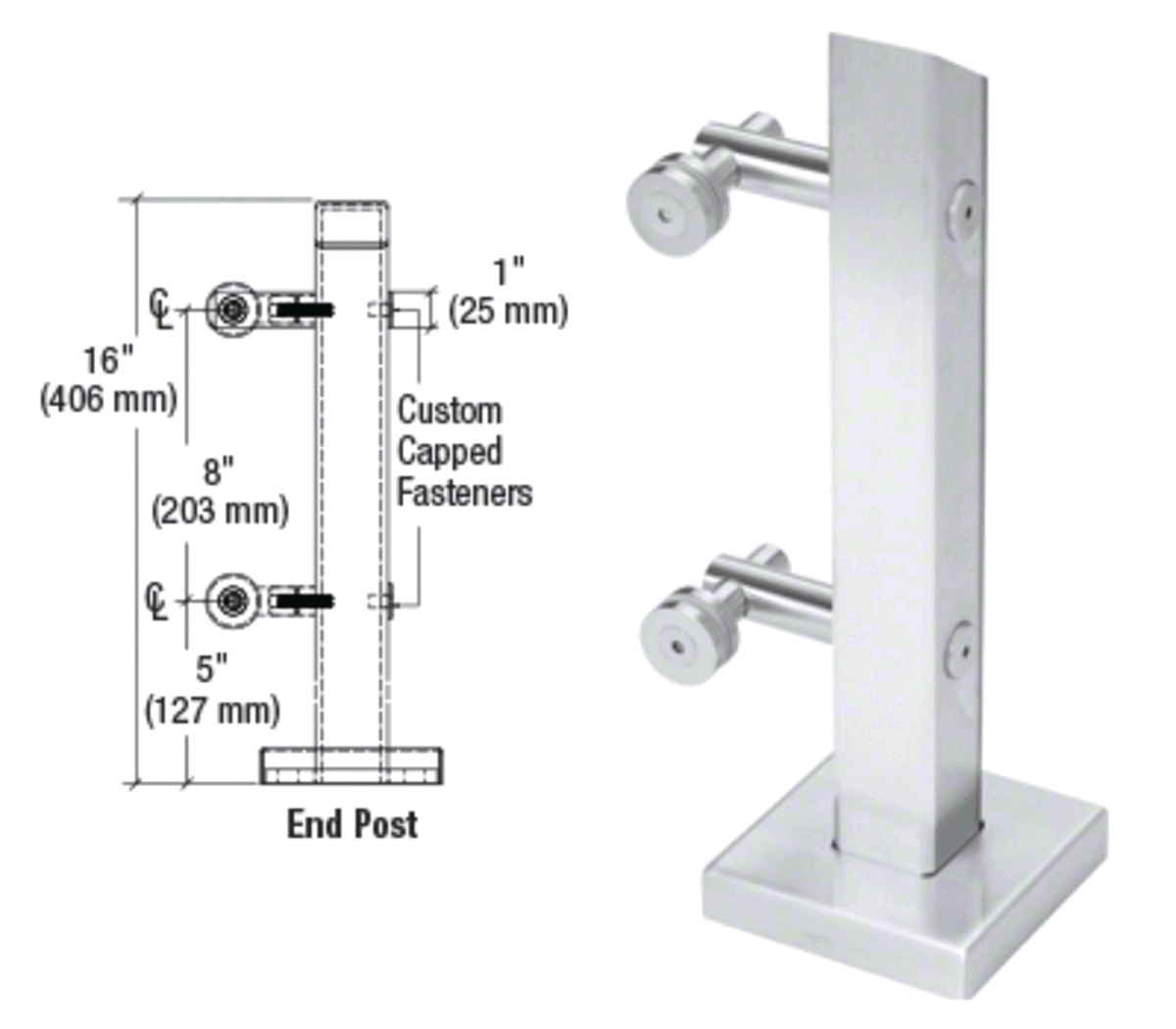

C.R. Laurence PWC1EPS 316 Polished Stainless Point Supported End Post is expertly designed for applications such as small windbreaks, pool surrounds, and guard rails. Constructed from 316 grade stainless steel, this end post boasts exceptional corrosion resistance and is available in two elegant architectural finishes, making it a perfect fit for a variety of environments. This versatile post accommodates both 1/2" (12 mm) monolithic tempered glass and 9/16" (13.52 mm) laminated tempered glass, ensuring compatibility with your design specifications. Its non-handed design allows for easy installation on nearly any mounting substrate, adhering to stringent safety requirements and building codes. Each post features a robust base plate measuring 5 inches (127 mm) in length and width, with a thickness of 3/8 inch (10 mm). The base plate includes four mounting holes for secure attachment, while the overall height of the post is 16 inches (406 mm). Note that glass fabrication requires two 3/4" (19 mm) diameter holes per post, and anchor bolts are sold separately. For optimal performance, regular maintenance is recommended to preserve the polished finish. Whether you're a building professional or a knowledgeable homeowner, the C.R. Laurence PWC1EPS is a reliable choice for your architectural needs.
316 Polished Stainless Point Supported End Post
CRL’s Point Supported Center and End Mini Posts are designed for small windbreaks, pool surrounds, and guard rails. These innovative Mini Posts can be installed on almost any mounting substrate, and meet virtually all safety requirements and building codes. Glass fabrication requires two 3/4" (19 mm) diameter holes per Post. NOTE: Anchor bolts sold separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Base Plate Cover Included: Yes
Base Plate Length: 5 in. (127 mm)
Base Plate Mounting Holes: 4
Base Plate Thickness: 3/8 in. (10 mm)
Base Plate Width: 5 in. (127 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Height: 16 in. (406 mm)
Material: 316 Stainless Steel
Mounting Hole Diameter: 9/16 in. (14 mm)
Profile: End Post
Shipping Limitations: None
