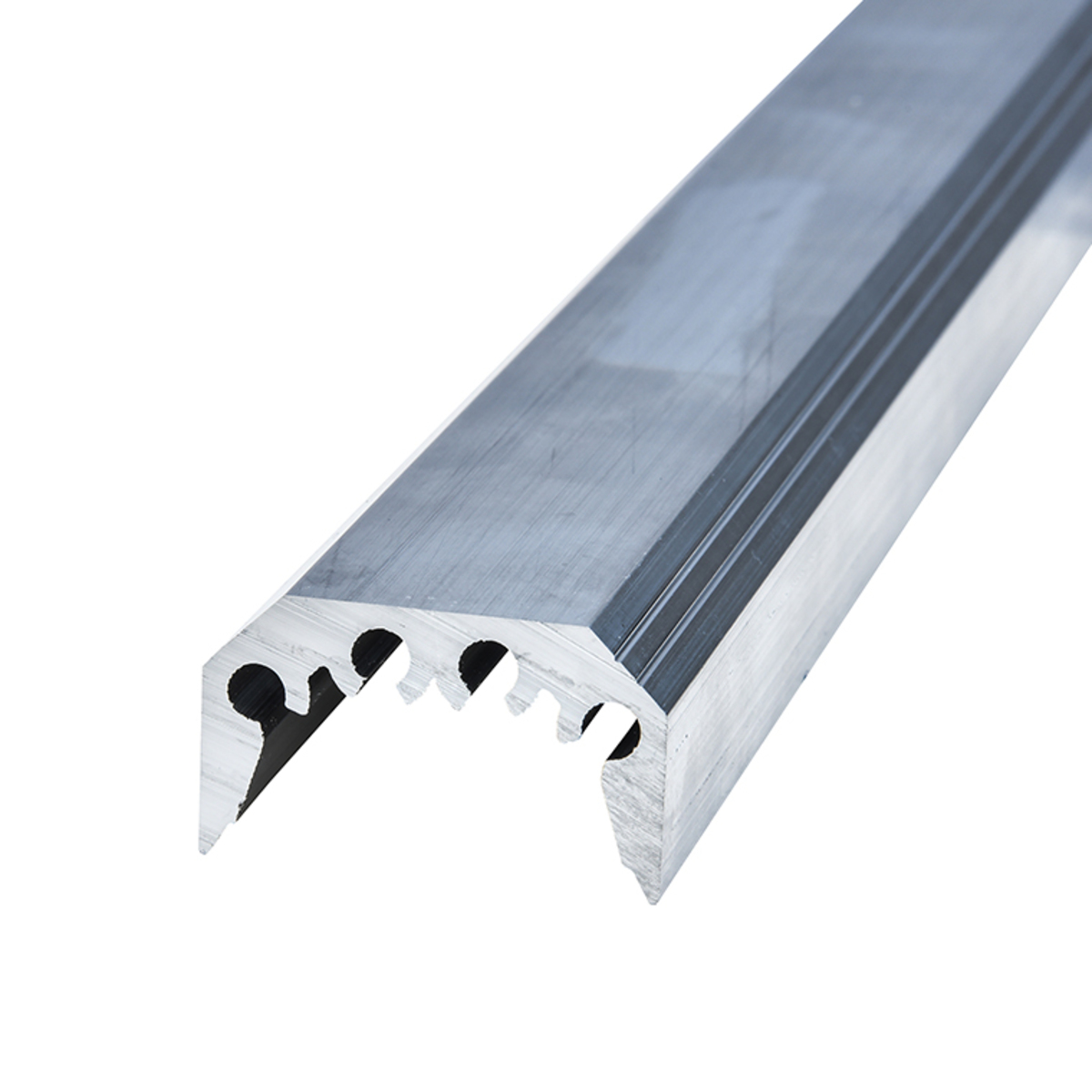

CRL RCB2A12 12" Rail Connecting Block - 200, 300, 350, 400 Series

C.R. Laurence RCB2A12 200, 300, 350, and 400 Series 12" Rail Connecting Block offers a reliable solution for securely connecting bottom rails to vertical posts in various architectural applications. Designed specifically for use with the 200, 300, 350, and 400 Series Bottom Rails, this connecting block is a crucial component for ensuring structural integrity and aesthetic appeal. Constructed from durable extruded aluminum with a weather-resistant finish, the RCB2A12 not only promises longevity but also maintains a sleek appearance. The block measures 12 inches in length, 1-1/2 inches in width, and stands 1 inch tall, making it versatile for different configurations. For angled installations, users can easily miter cut the block to fit specific slopes or angles. Installation is straightforward; simply screw the block into the index grooves on the post using C.R. Laurence's RCBS Rail Connecting Block Screws. Available in three standard lengths, this product caters to various project needs while ensuring a professional finish. Note that the RCB2A12 adheres to compliance standards, with a warning regarding reproductive harm as per California Proposition 65. With no shipping limitations, it's easy to incorporate this essential component into your next project.

200, 300, 350 and 400 Series 12" Rail Connecting Block

• Designed for Use When Installing the 200, 300, 350 or 400 Series Bottom Rails
• Three Standard Lengths Available

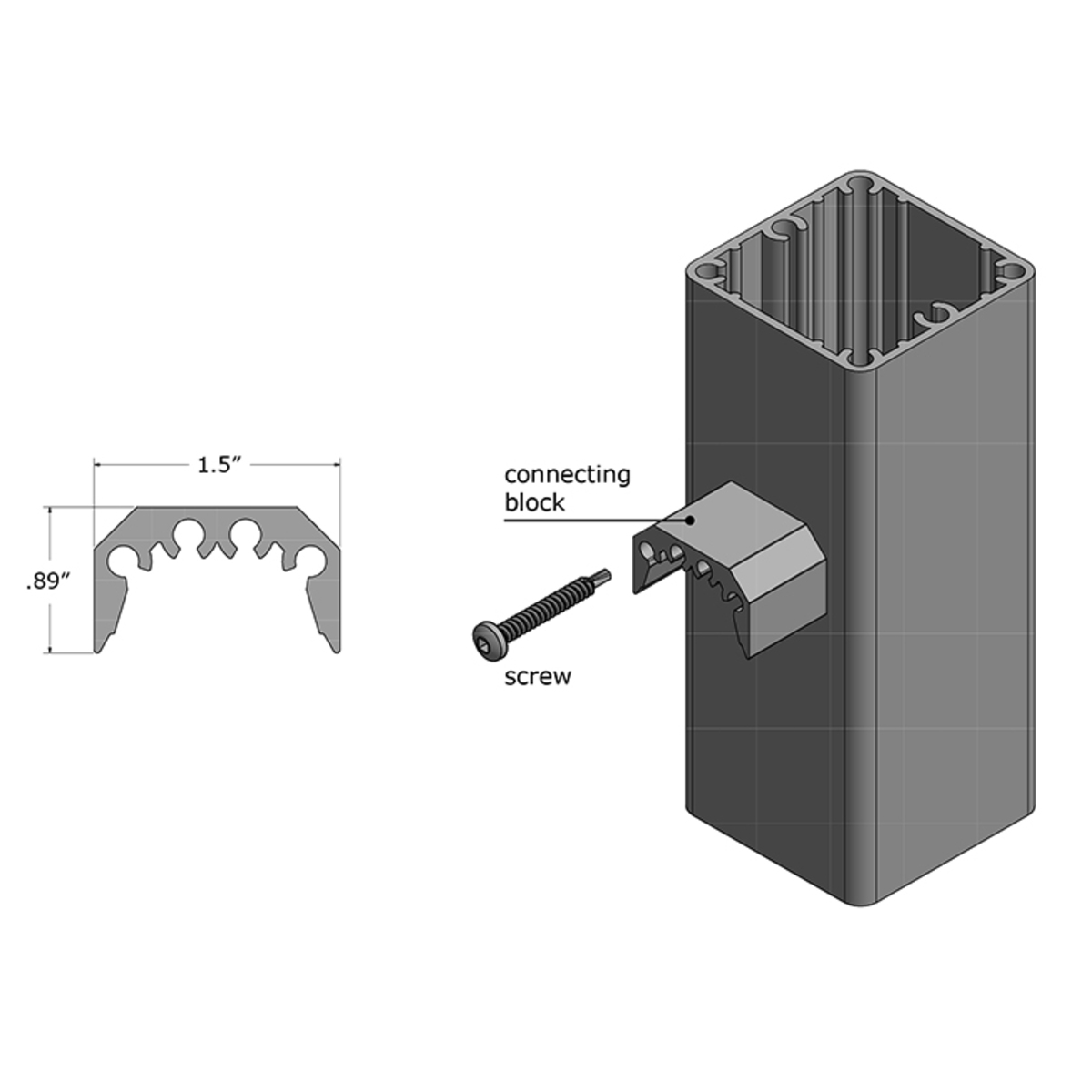

Use CRL Rail Connecting Blocks to connect Bottom Rails to vertical posts. Screw Blocks into index grooves on post using Cat. No. RCBS Rail Connecting Block Screws. Miter cut the 12" or 241" lengths when building angles and slopes. All Connecting Blocks are extruded aluminum with a weather resistant finish.
