CRL REG037BN Brushed Nickel Regal 037 Wall Mount Offset Back Plate Hinge

CRL REG037BN Brushed Nickel Regal 037 Wall Mount Offset Back Plate Hinge

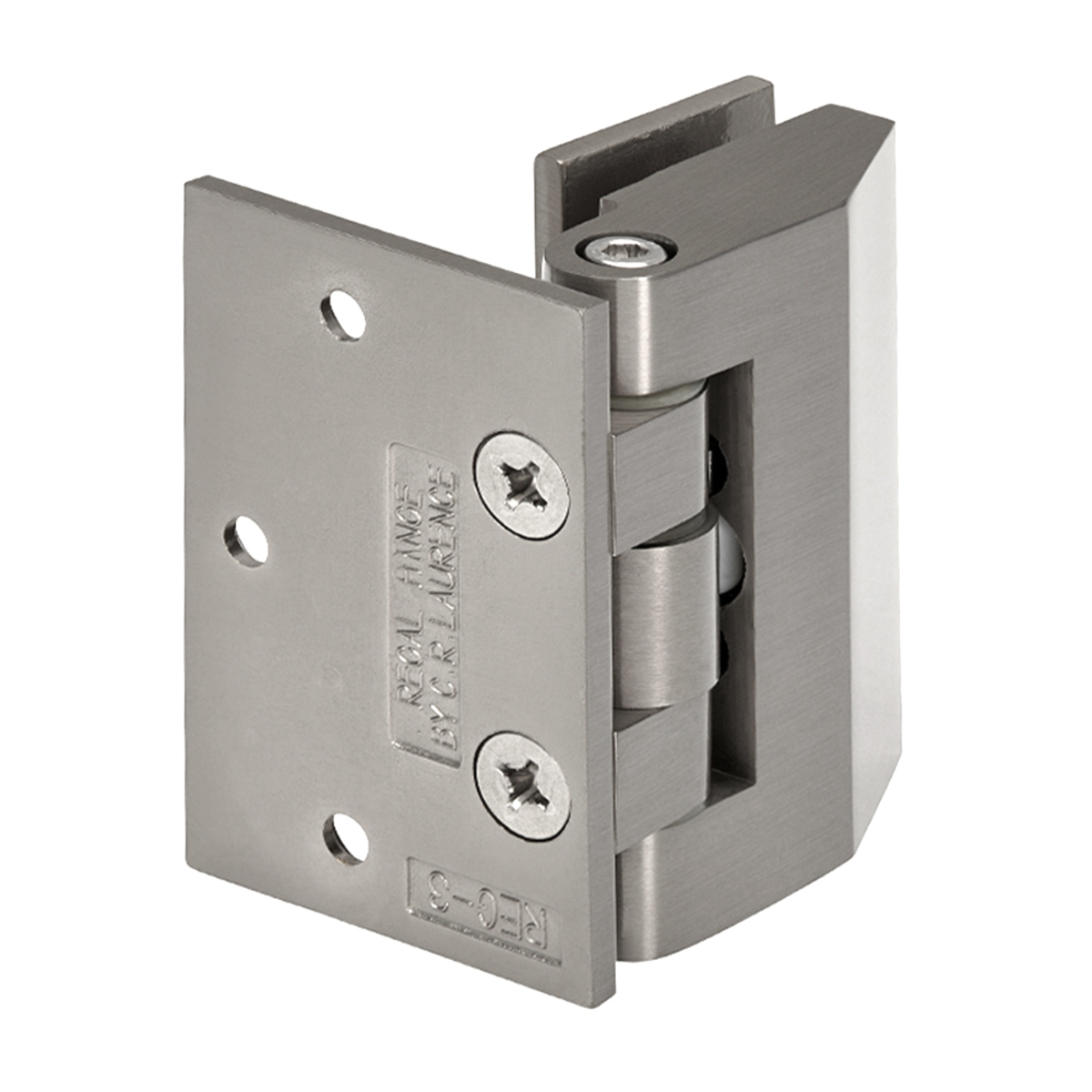

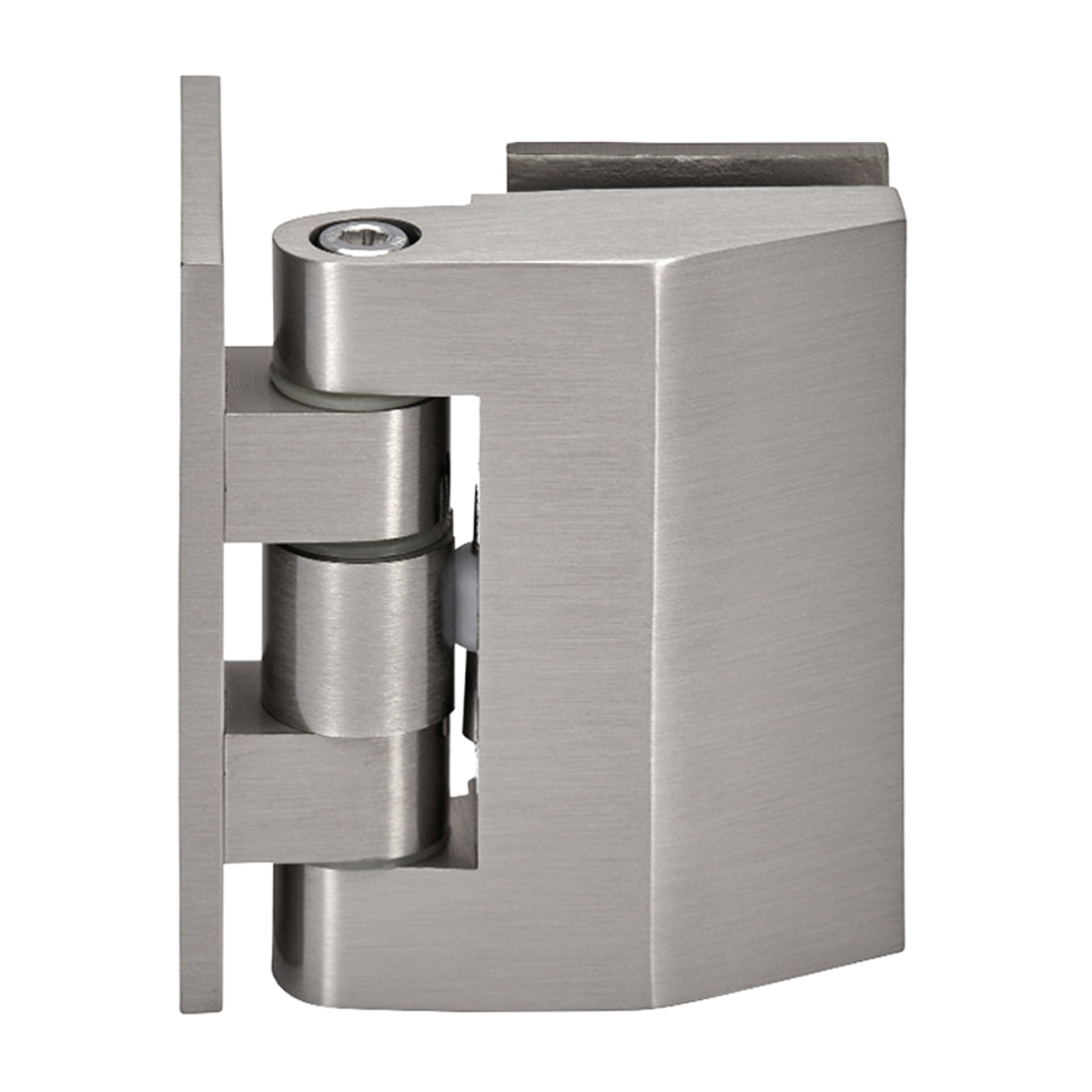

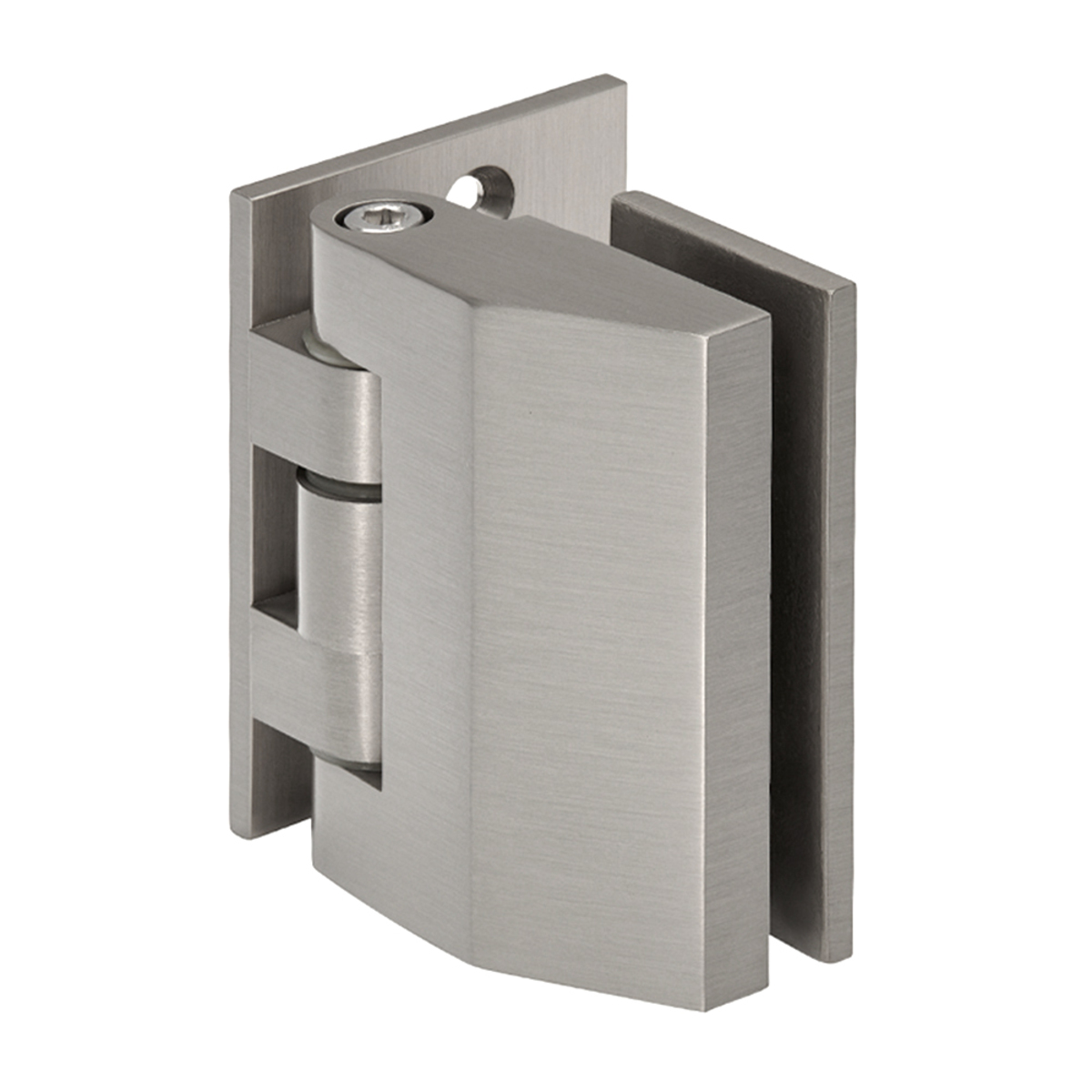

C.R. Laurence REG037BN Brushed Nickel Regal 037 Series Wall Mount Offset Back Plate Hinge combines elegance and functionality for modern glass installations. Crafted from solid brass with a stunning brushed nickel finish, this wall-mounted hinge is designed for use with monolithic tempered glass, accommodating thicknesses from 5/16" (8 mm) to 3/8" (10 mm). One of its standout features is the adjustable closing angle, which allows you to set the door's closed position anywhere from 0 to 90 degrees after installation. This flexibility addresses the common challenge of aligning doors with wall angles, ensuring a precise and aesthetically pleasing fit. For enhanced stability, using two hinges supports doors weighing up to 90 lbs. (41 kg) with a maximum width of 30", while three hinges can handle up to 130 lbs. (59 kg) for doors up to 34". The REG037BN requires just two holes for installation, eliminating the need for cut-outs, and includes gaskets, screws, and glass fabrication dimensions for a seamless setup. With a three-year warranty and availability in various finishes, this hinge not only meets practical demands but also elevates design aesthetics in residential and hospitality settings. Perfect for shower doors, the REG037BN is a reliable choice for professionals and homeowners alike.

Brushed Nickel Regal 037 Series Wall Mount Offset Back Plate Hinge

• Wall Mount
• Adjustable After Door is Installed
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Regal Hinges are Not Available in Europe
• Use Monolithic Tempered Glass

The CRL Regal Adjustable Hinge is unique in design and function. The Wall Mount Model requires only two holes in the door (no cut-out). The Glass-to-Glass Model only requires four holes per Hinge (two in the door and two in the fixed panel). The Regal Hinge offers an adjustable closing angle from 0 degree to 90 degree. After the door is installed, simply loosen the Allen screw adjustment, position the door to the desired closed position, and tighten the Allen screw. You have now solved the problem of walls not meeting the door at the perfect 90 degree angle. This adjustment feature means that a single Glass-to-Glass model can accommodate angles from 90 degree to 180 degree.


NOTE: REG037 and REG180 are not available in Europe.

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm).

Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Approximately 90 degree Outward Only (Requires Stop)
Closing Type: Precise Closing to 0 degree
No Cut-Out Required; Requires Two Holes Only Per Glass Panel.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
