CRL REG180BN Brushed Nickel Regal 180 Glass-to-Glass Hinge

CRL REG180BN Brushed Nickel Regal 180 Glass-to-Glass Hinge

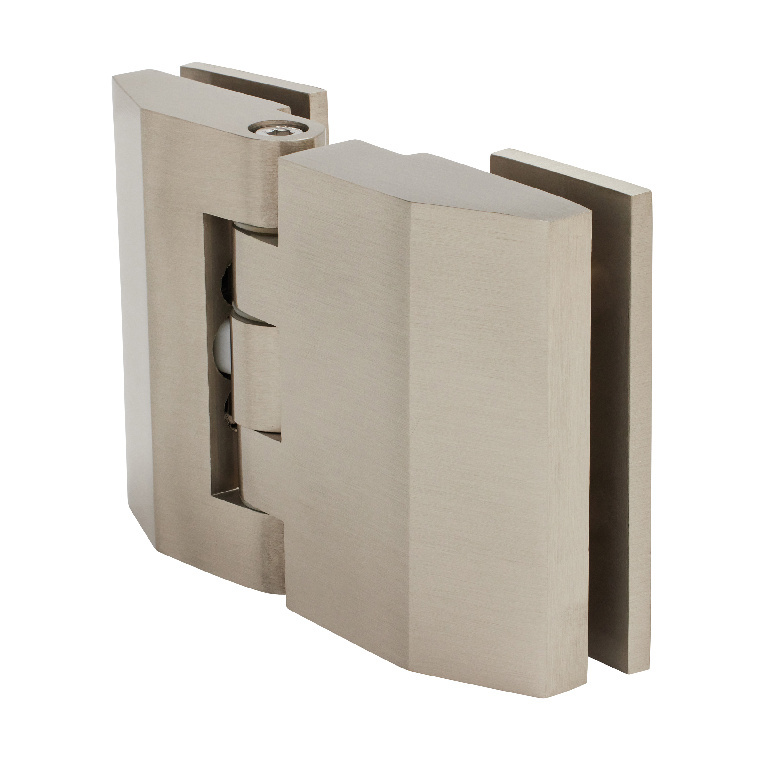

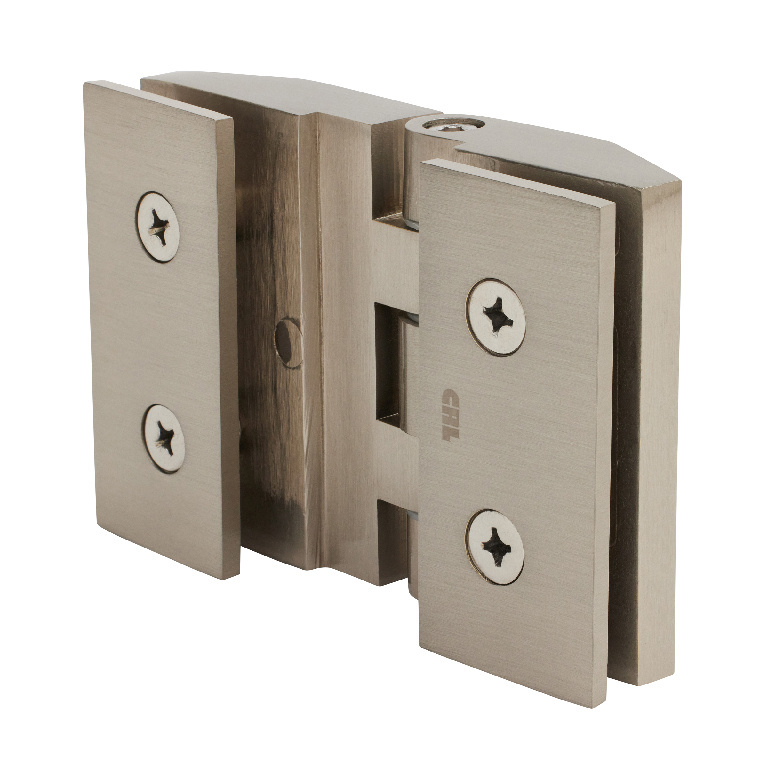

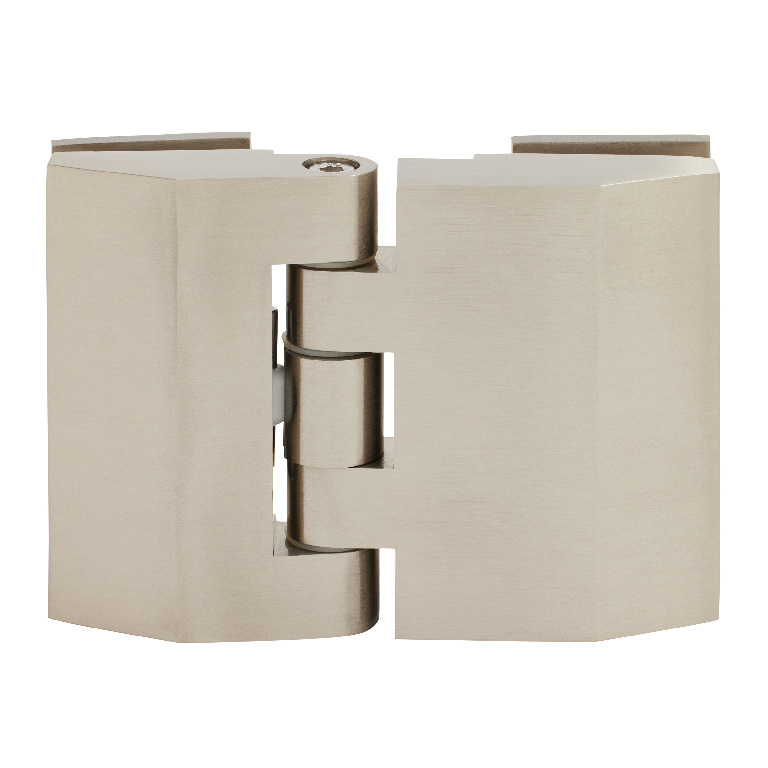

C.R. Laurence REG180BN Brushed Nickel Regal 180 Series Glass-to-Glass Hinge is a sophisticated solution for your glass door installations. Engineered for durability and ease of use, this hinge features a unique design that allows for a perfect fit without requiring extensive cut-outs-just two holes in the door and two in the fixed panel. The REG180BN hinge supports monolithic tempered glass, accommodating thicknesses from 5/16" (8 mm) to 3/8" (10 mm). With an impressive weight capacity of up to 90 lbs. (41 kg) using two hinges and 130 lbs. (59 kg) with three, it can handle doors up to 34" (864 mm) wide. Its adjustable closing angle ranges from 0 to 90 degrees, providing flexibility to address any installation challenges, particularly in situations where walls may not meet the door at a perfect angle. Crafted from solid brass and finished in brushed nickel, this hinge not only ensures a robust performance but also adds a touch of elegance to your space. The hinge includes gaskets, screws, and glass fabrication dimensions for a complete installation package. With a 3-year warranty, the C.R. Laurence REG180BN hinge is an exceptional choice for residential or hotel shower applications.

Brushed Nickel Regal 180 Series Glass-to-Glass Hinge

• Glass-to-Glass Model
• Adjustable After Door is Installed
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Regal Hinges are Not Available in Europe
• Use Monolithic Tempered Glass

The CRL Regal Adjustable Hinge is unique in design and function. The Wall Mount Model requires only two holes in the door (no cut-out). The Glass-to-Glass Model only requires four holes per Hinge (two in the door and two in the fixed panel). The Regal Hinge offers an adjustable closing angle from 0 degree to 90 degree. After the door is installed, simply loosen the Allen screw adjustment, position the door to the desired closed position, and tighten the Allen screw. You have now solved the problem of walls not meeting the door at the perfect 90 degree angle. This adjustment feature means that a single Glass-to-Glass model can accommodate angles from 90 degree to 180 degree.


NOTE: REG037 and REG180 are not available in Europe.

Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm).

Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

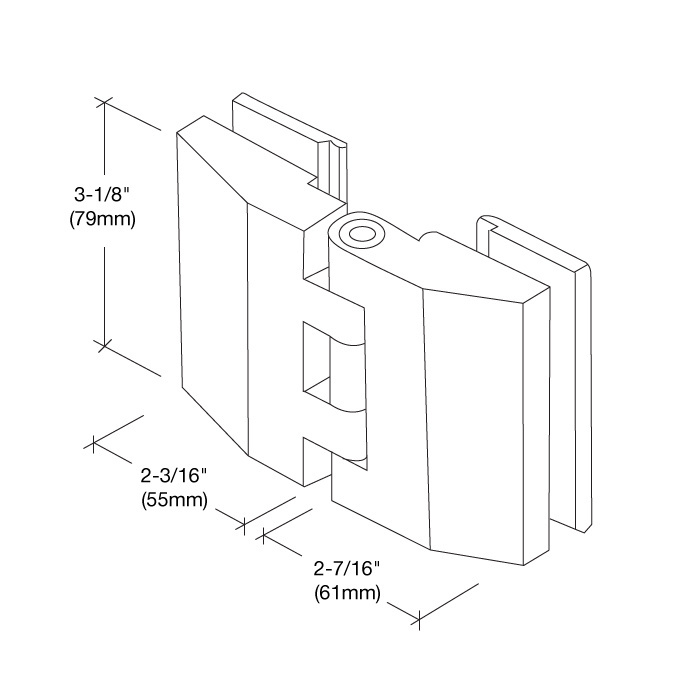

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Approximately 90 degree Outward Only (Requires Stop)
Closing Type: Precise Closing to 0 degree
No Cut-Out Required; Requires Two Holes Only Per Glass Panel.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
