CRL RH1112BR Polished Brass 1/2" Type 'E' 90 Open Center Clamps for RailingsC.R. Laurence RH1112BR Polished Brass 1/2" 90 Degree Straight Open Center Clamps Type 'E' are expertly designed for use in constructing metal and glass railings, partitions, and room dividers. Crafted from solid brass, these clamps not only showcase a polished finish but also combine durability with style, making them a perfect addition to any modern architectural project. Accommodating glass thicknesses of 1/2" (12 mm), these clamps are predrilled for easy installation, allowing you to securely fasten glass edges in both vertical and horizontal applications. The reversible design of the open center clamps provides flexibility for installation at the midpoint of glass runs, whether at the top or bottom. For added convenience, CRL offers three popular finishes-chrome, brass, and brushed nickel-with custom finishes available upon request. The clamps are compatible with CRL Tuff-Pak Tape, which cushions the glass and enhances stability. Measuring 1-7/8" in height and width and 3/4" in depth, these clamps are designed for a flat base, ensuring a seamless fit in your architectural designs. Please note that while brass is durable, it may require maintenance to prevent tarnishing due to oxidation. Enhance your railing systems with the elegance and reliability of C.R. Laurence RH1112BR clamps.
Polished Brass 1/2" 90 Degree Straight Open Center Clamps Type 'E' Stair and Walkway Railings
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 1/2" (12 mm)
Use CRL 90 Degree Straight Open Center Clamp 'E' on top or bottom midpoint of glass on level run. Reversible open center clamps.
P612** replacement screws
Our Glass and Railing Clamps are predrilled and ready for use in the construction of metal and glass railings, partitions, room dividers and more. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) thick tempered glass. Three popular finishes are stocked, with custom finishes available. Simply loosen screw on one end, insert glass edge and tighten. Use CRL Tuff-Pak Tape, to cushion glass in Clamps. For wood mount attachments use Screw Cat. No. 8X212DW. For metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all Clamps are available.

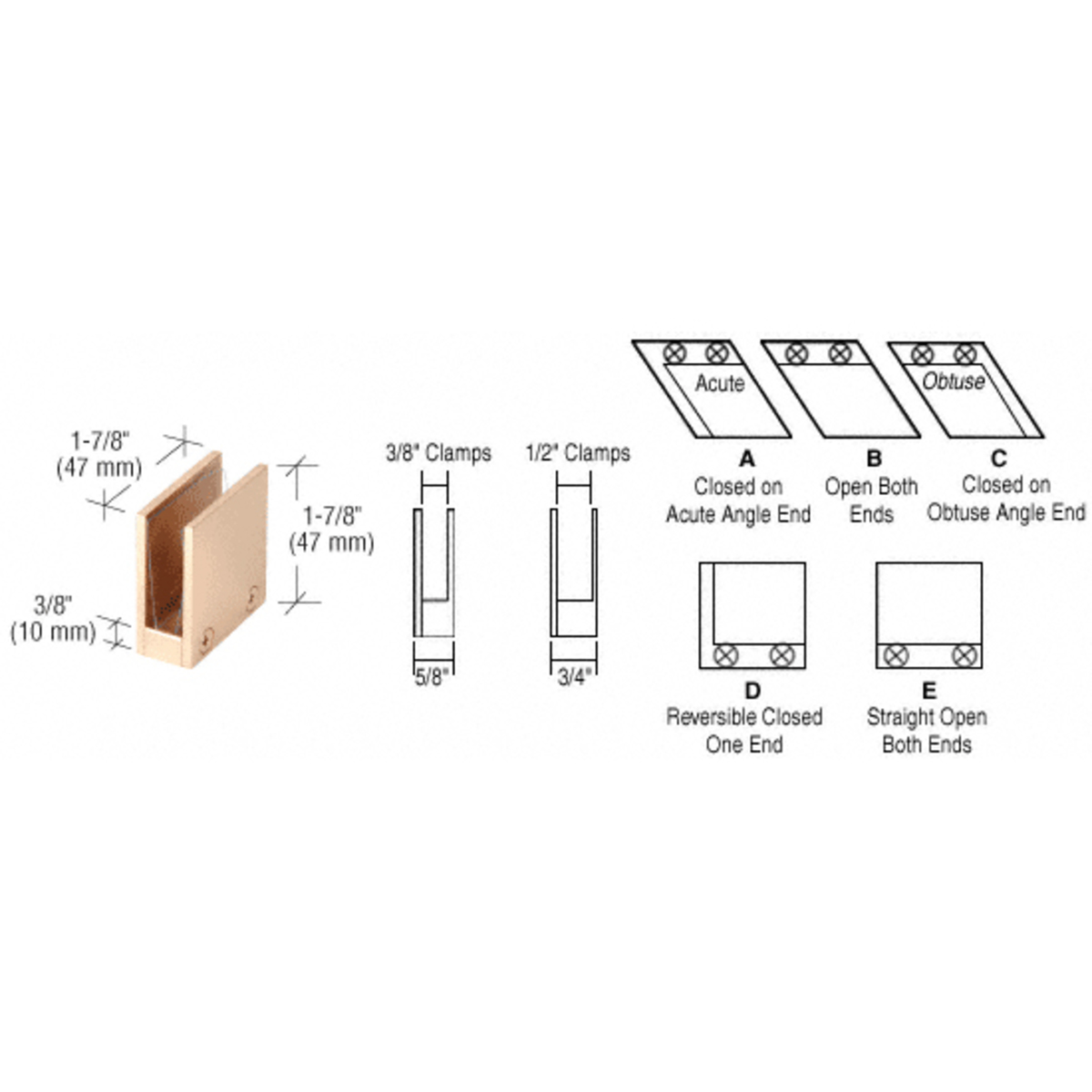

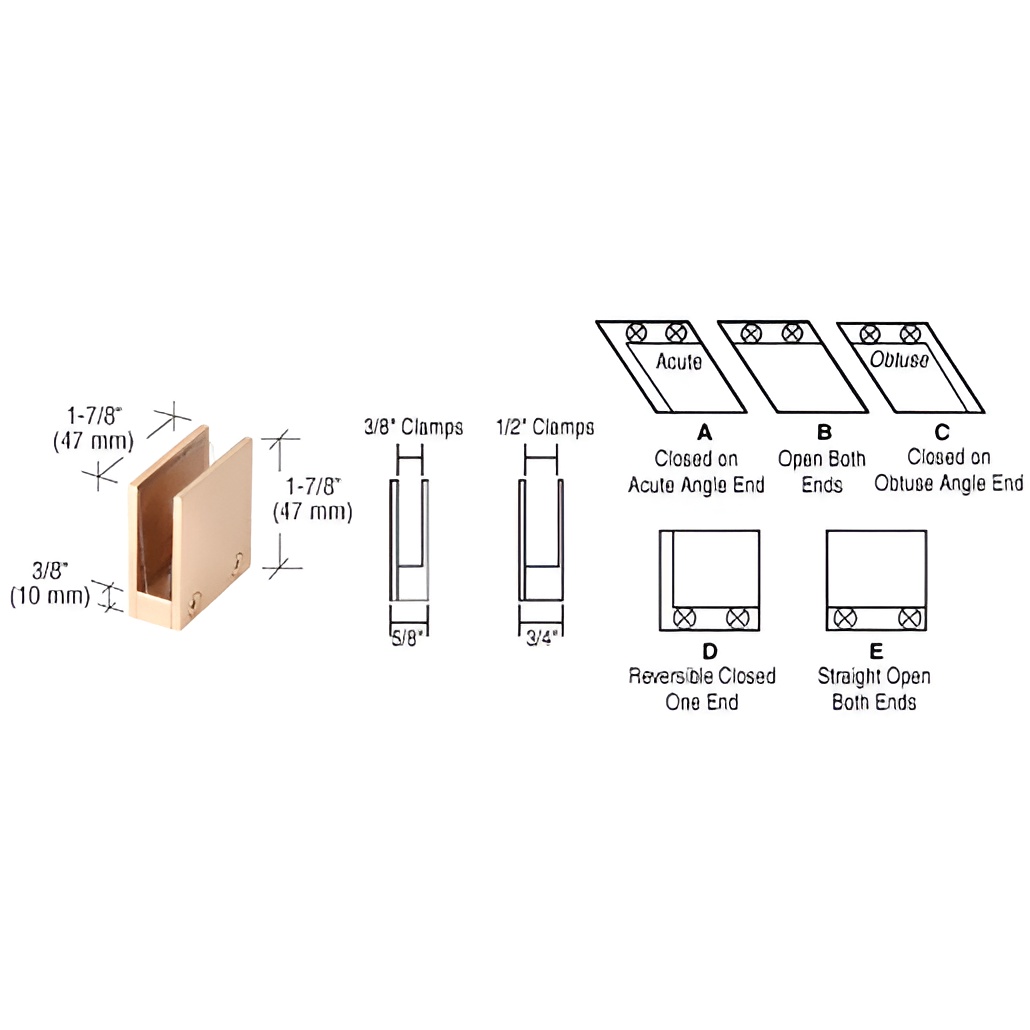

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Base Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 3/4 in. (19 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 1/2 in. (13 mm)
Height: 1-7/8 in. (48 mm)
Material: Solid Brass
Shipping Limitations: None
Width: 1-7/8 in. (48 mm)
Resources
