CRL RH2212BN Brushed Nickel 1/2" Type D 90 End Clamp for RailingsC.R. Laurence RH2212BN Brushed Nickel 1/2" 90 Degree Straight End Clamp Type "D" Stair and Walkway Railings offers a sleek and durable solution for securing glass railings in both residential and commercial settings. Designed for glass thickness of 1/2" (12 mm), this clamp is versatile and can be positioned at the top or bottom of the glass, accommodating 90-degree corners with ease. Available in elegant finishes including chrome, brass, and brushed nickel, this clamp not only enhances the aesthetic of your railing system but also ensures robust performance. Custom finishes can be ordered upon request, allowing for tailored solutions that meet specific design requirements. The RH2212BN is predrilled and ready for installation, making it a practical choice for constructing glass railings, partitions, and room dividers. With a flat base type and solid brass construction, it provides stability and longevity. The clamp measures 1-7/8 in. (48 mm) in height and width, with a depth of 3/4 in. (19 mm). For optimal performance, use CRL Tuff-Pak Tape to cushion the glass within the clamps. This product exemplifies quality craftsmanship, combining functionality with modern design.
Brushed Nickel 1/2" 90 Degree Straight End Clamp Type "D" Stair and Walkway Railings
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 1/2" (12 mm)
Use CRL 90 Degree Straight End Clamp "D" on top of glass at end of level run, or bottom of glass at end of level run. Clamps are reversible with 90 degree corners.
P612** replacement screws
Our Glass and Railing Clamps are predrilled and ready for use in the construction of metal and glass railings, partitions, room dividers and more. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) thick tempered glass. Three popular finishes are stocked, with custom finishes available. Simply loosen screw on one end, insert glass edge and tighten. Use CRL Tuff-Pak Tape, to cushion glass in Clamps. For wood mount attachments use Screw Cat. No. 8X212DW. For metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all Clamps are available.

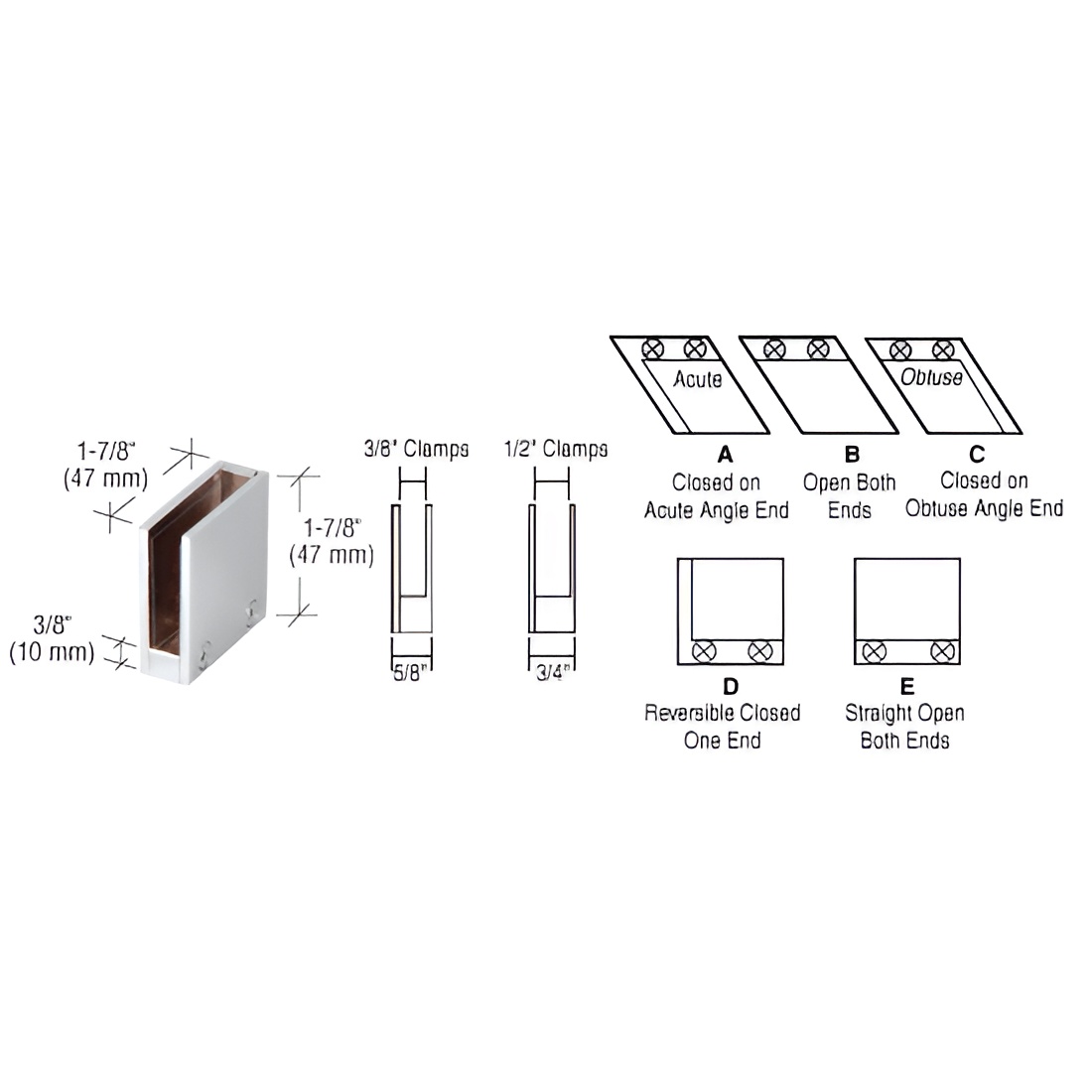

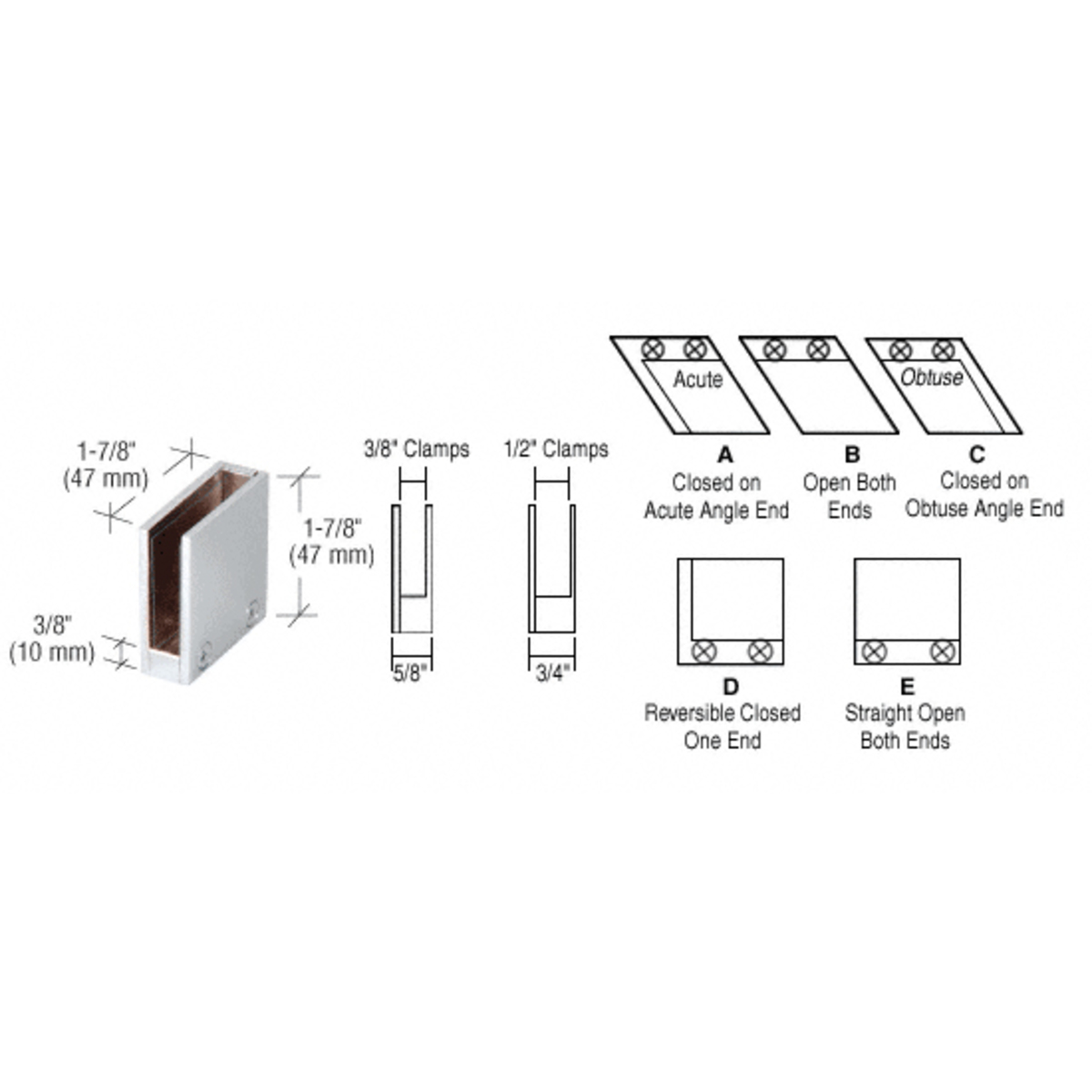

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 3/4 in. (19 mm)
Finish/ Color:: Brushed Nickel
Glazing Thickness: 1/2 in. (13 mm)
Height: 1-7/8 in. (48 mm)
Material: Solid Brass
Shipping Limitations: None
Width: 1-7/8 in. (48 mm)
