CRL RH2238BR Polished Brass 3/8" 90 Type "D" End Clamp for RailingsC.R. Laurence RH2238BR Polished Brass 3/8" 90 Degree Straight End Clamp Type "D" Stair and Walkway Railings offers an elegant solution for your railing needs, combining aesthetic appeal with robust functionality. Designed specifically for 3/8" (10 mm) thick tempered glass, this end clamp is ideal for use at the top or bottom of glass at the end of a level run. Its reversible design accommodates 90-degree corners, making it versatile for various installation scenarios. Crafted from solid brass, the polished brass finish adds a touch of sophistication to any architectural project. The clamp is predrilled for easy installation, and by simply loosening the screw, you can insert the glass edge and tighten it securely. For added protection, use CRL Tuff-Pak Tape to cushion the glass within the clamp. With a depth of 5/8" (16 mm) and a height and width of 1-7/8" (48 mm), this clamp is built to last. Custom finishes are available upon request, ensuring you can achieve the desired look for your project. Please note that while brass is durable, it is prone to oxidation, which may lead to tarnishing over time. This clamp is an essential component for constructing elegant metal and glass railings, partitions, and room dividers.
Polished Brass 3/8" 90 Degree Straight End Clamp Type "D" Stair and Walkway Railings
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 3/8" (10 mm)
Use CRL 90 Degree Straight End Clamp "D" on top of glass at end of level run, or bottom of glass at end of level run. Clamps are reversible with 90 degree corners.
P612** replacement screws
Our Glass and Railing Clamps are predrilled and ready for use in the construction of metal and glass railings, partitions, room dividers and more. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) thick tempered glass. Three popular finishes are stocked, with custom finishes available. Simply loosen screw on one end, insert glass edge and tighten. Use CRL Tuff-Pak Tape, to cushion glass in Clamps. For wood mount attachments use Screw Cat. No. 8X212DW. For metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all Clamps are available.

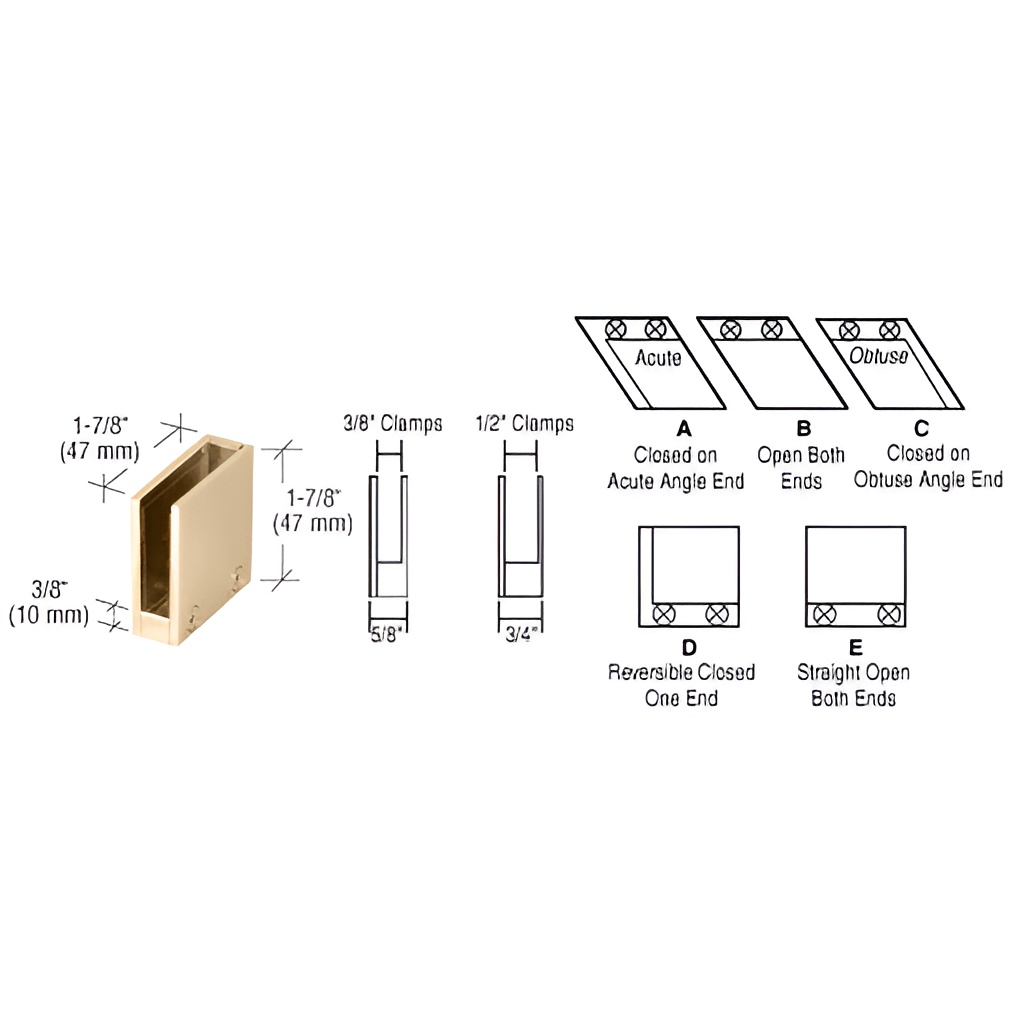

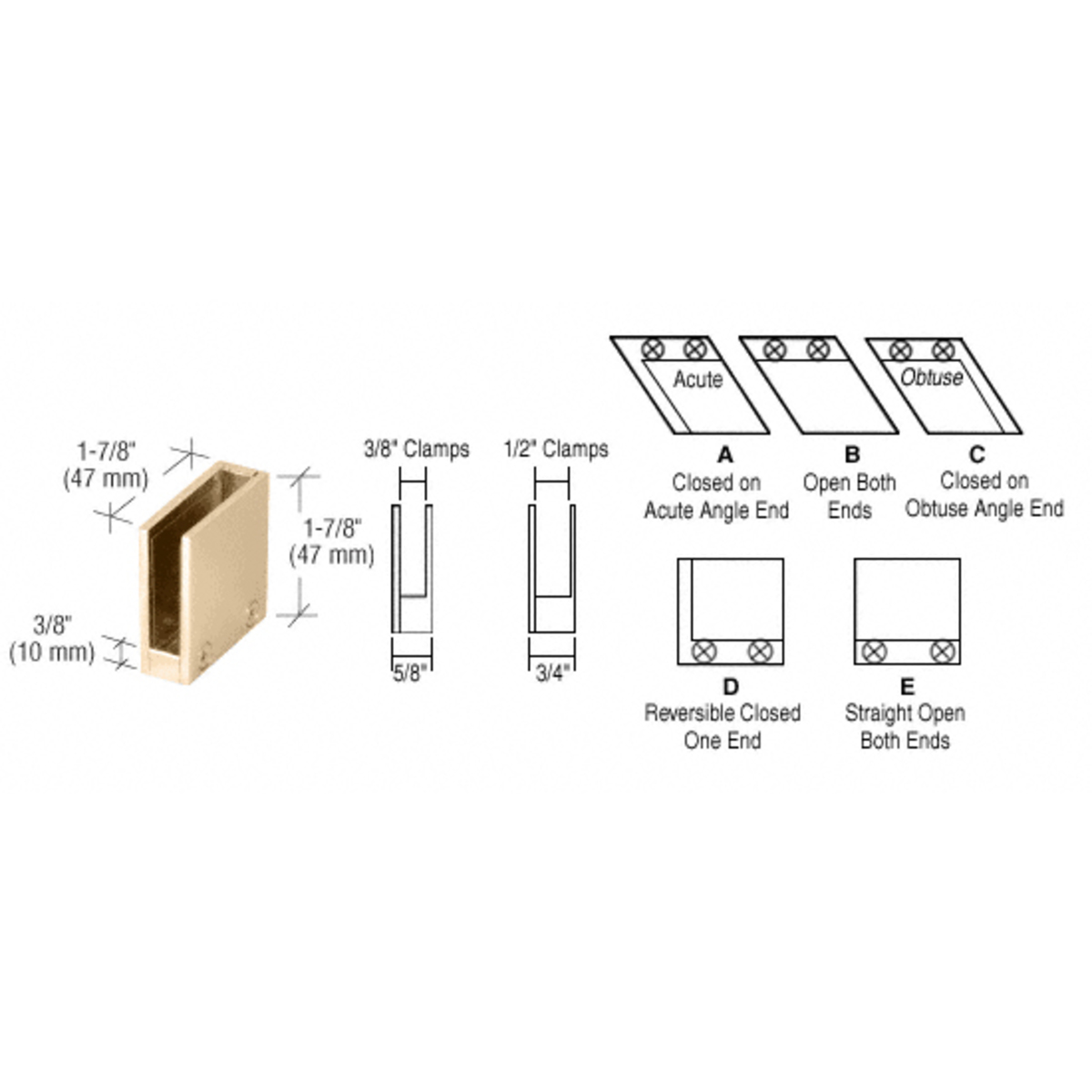

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Base Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 5/8 in. (16 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. (10 mm)
Height: 1-7/8 in. (48 mm)
Material: Solid Brass
Shipping Limitations: None
Width: 1-7/8 in. (48 mm)
