CRL RH2238CH Chrome 3/8" Type D 90 Straight End Clamp for Railings

C.R. Laurence RH2238CH Chrome 3/8" 90 Degree Straight End Clamp Type "D" Stair and Walkway Railings is expertly designed to enhance both the functionality and aesthetic of your glass railing systems. Crafted from solid brass and finished in a sleek chrome, this clamp supports glass thicknesses of 3/8" (10 mm), making it ideal for a variety of applications including staircases and walkways. Its reversible design allows it to be installed at the top or bottom of glass panels, accommodating 90-degree corners seamlessly. The clamp is predrilled for easy installation, ensuring a secure fit while providing a polished look. Additionally, it is compatible with CRL Tuff-Pak Tape to cushion the glass, protecting it from potential damage. Available in elegant finishes such as brass and brushed nickel, custom finishes can also be requested to suit specific design needs. With dimensions of 1-7/8" in height and width and a depth of 5/8", it integrates effortlessly into a variety of railing setups. For your convenience, replacement screws (P612) are readily available, ensuring the longevity and reliability of your installation. Elevate your architectural projects with the precision and quality of C.R. Laurence’s RH2238CH clamps, where durability meets style.

Chrome 3/8" 90 Degree Straight End Clamp Type "D" Stair and Walkway Railings

• Chrome, Brass, and Brushed Nickel Finishes
• Custom Finishes Available on Request
• For Glass Thickness 3/8" (10 mm)

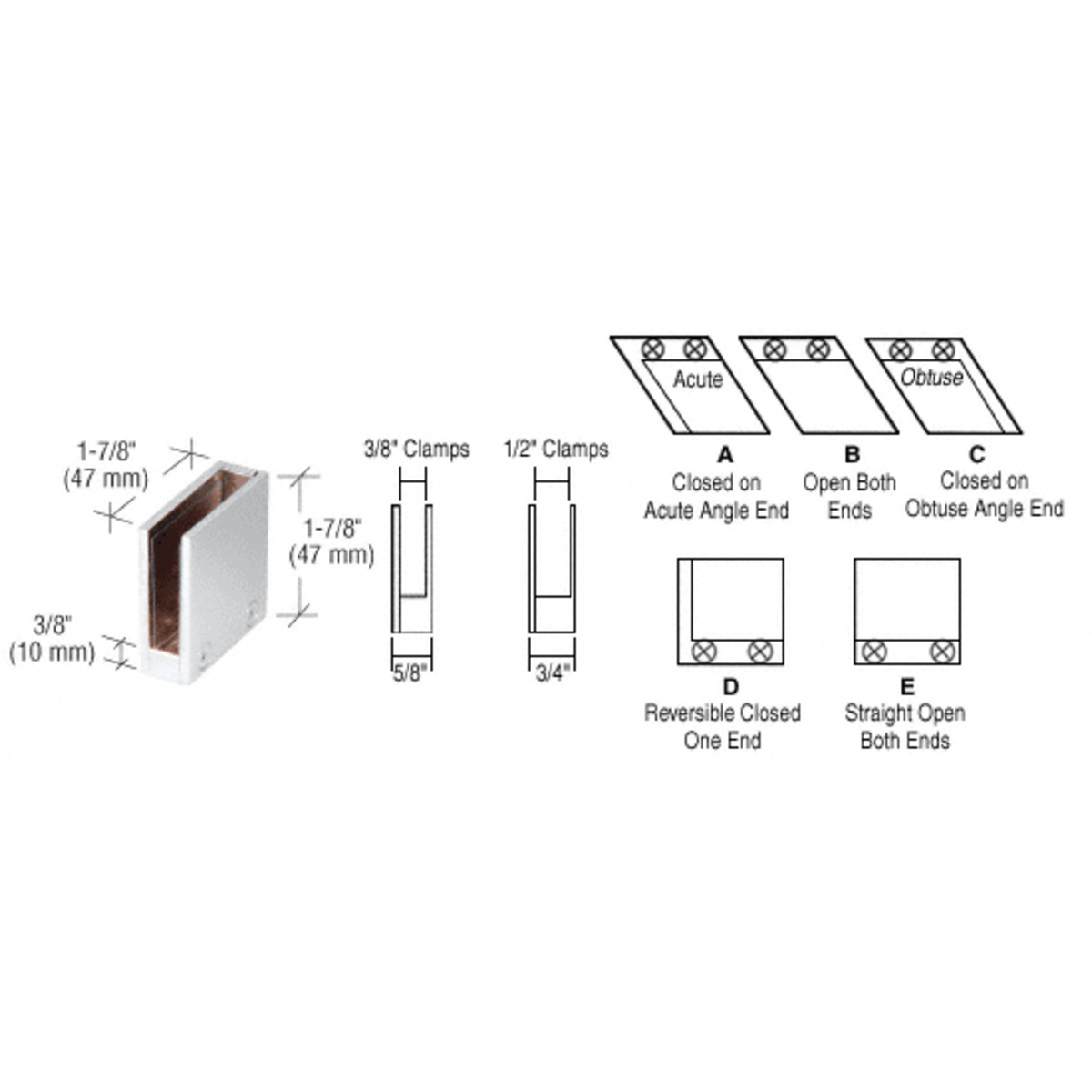

Use CRL 90 Degree Straight End Clamp "D" on top of glass at end of level run, or bottom of glass at end of level run. Clamps are reversible with 90 degree corners.

P612** replacement screws

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• RH2238 Template.pdf
