CRL RH3312BR Polished Brass 1/2" 52 Slant Acute End Clamp Type A for RailingsC.R. Laurence RH3312BR Polished Brass 1/2" 52 Degree Slant Acute End Clamp Type "A" Stair and Walkway Railings offers a sophisticated solution for your railing needs. Designed to accommodate 1/2" (12 mm) thick tempered glass, this clamp ensures a secure and stylish connection for slanted railings, enhancing both safety and aesthetics. Available in three attractive finishes-Chrome, Brass, and Brushed Nickel-this end clamp can be customized to meet specific project requirements. The predrilled design simplifies installation, allowing for quick and efficient assembly in various applications, from staircases to walkways. Simply loosen the screw, insert the glass edge, and tighten for a firm grip. For optimal performance, use CRL Tuff-Pak Tape to cushion the glass within the clamp. This solid brass clamp not only provides structural integrity but also radiates elegance, making it an excellent choice for both residential and commercial settings. Its dimensions of 1-7/8" in height and width, with a depth of 3/4", ensure compatibility with a range of installation scenarios. Note that while brass is durable, it may oxidize over time, giving it a classic, aged appearance. For reliable and stylish railing systems, choose the C.R. Laurence RH3312BR clamp to elevate your design.
Polished Brass 1/2" 52 Degree Slant Acute End Clamp Type "A" Stair and Walkway Railings
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 1/2" (12 mm)
Use CRL 52 Degree Slant Open Center Clamp "B" on top or bottom midpoint of slanted glass. Reversible center clamps at 52 degree angle.
P612** replacement screws
Our Glass and Railing Clamps are predrilled and ready for use in the construction of metal and glass railings, partitions, room dividers and more. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) thick tempered glass. Three popular finishes are stocked, with custom finishes available. Simply loosen screw on one end, insert glass edge and tighten. Use CRL Tuff-Pak Tape, to cushion glass in Clamps. For wood mount attachments use Screw Cat. No. 8X212DW. For metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all Clamps are available.

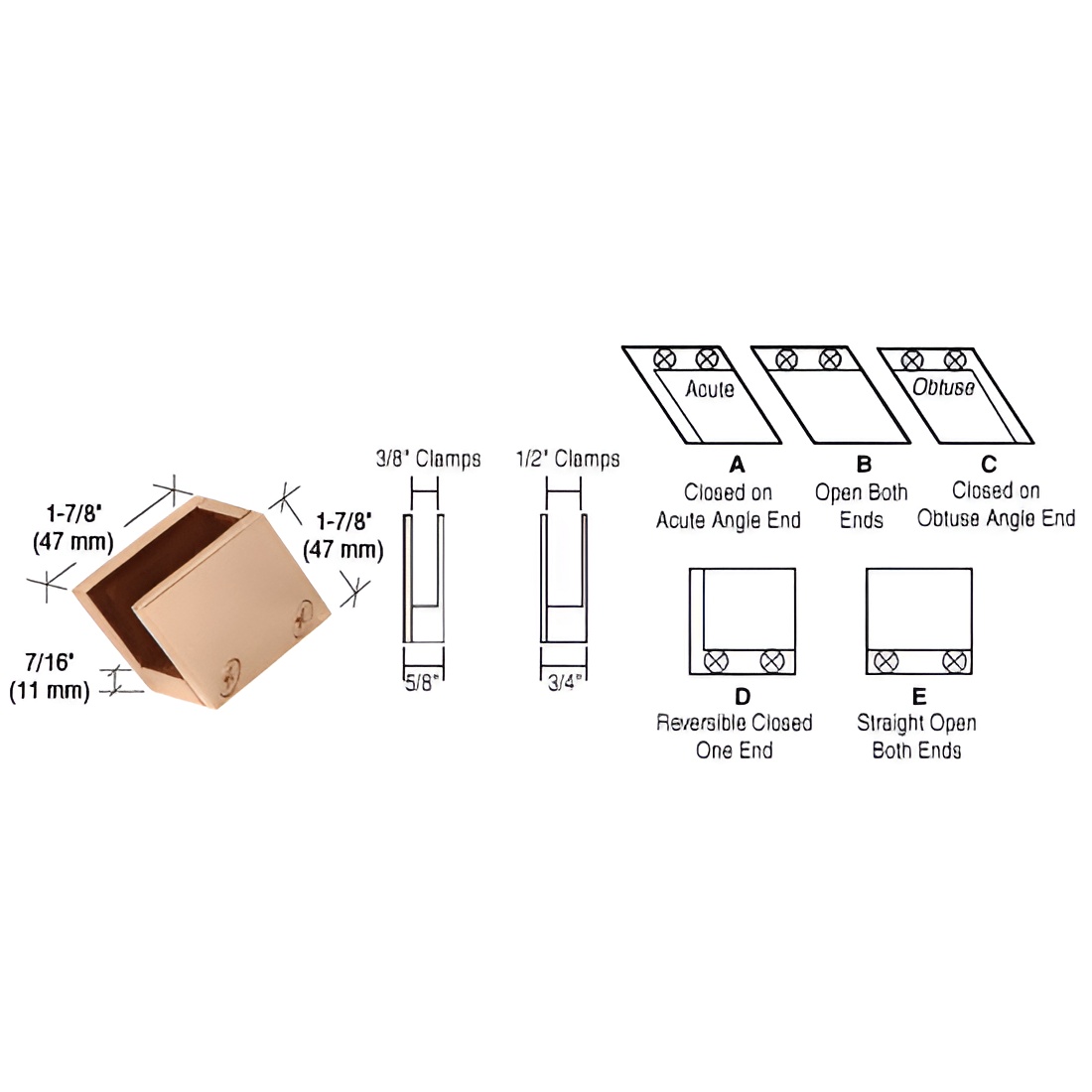

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Base Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 3/4 in. (19 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 1/2 in. (13 mm)
Height: 1-7/8 in. (48 mm)
Material: Solid Brass
Shipping Limitations: None
Width: 1-7/8 in. (48 mm)
Resources
