CRL RH4412BR Polished Brass 1/2" Slant Open Center Clamp Type "B" RailingC.R. Laurence RH4412BR Polished Brass 1/2" 52 Degree Slant Open Center Clamp Type "B" Stair and Walkway Railings are expertly designed for constructing elegant metal and glass railings, partitions, and room dividers. Crafted from solid brass, this clamp features a stunning polished brass finish that enhances the aesthetic appeal of any project. It accommodates glass thickness of 1/2" (12 mm) and is engineered for ease of use-simply loosen the screw, insert the glass edge, and tighten for a secure fit. The unique 52-degree slant design allows for versatile installation at the midpoint of slanted glass panels, making it ideal for both stair and walkway applications. This clamp is predrilled and ready for quick assembly, saving valuable time on-site. Available in chrome, brass, and brushed nickel finishes, custom options can also be requested to meet specific design needs. For optimal performance, utilize CRL Tuff-Pak Tape to cushion the glass within the clamp. Compatible screw options for wood and metal attachments ensure a secure installation. With dimensions of 1-7/8" in height and width, and a depth of 3/4", the RH4412BR clamp combines functionality with refined aesthetics, making it an essential component for any architectural project.
Polished Brass 1/2" 52 Degree Slant Open Center Clamp Type "B" Stair and Walkway Railings
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 1/2" (12 mm)
Our Glass and Railing Clamps are predrilled and ready for use in the construction of metal and glass railings, partitions, room dividers and more. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) thick tempered glass. Three popular finishes are stocked, with custom finishes available. Simply loosen screw on one end, insert glass edge and tighten. Use CRL Tuff-Pak Tape, to cushion glass in Clamps. For wood mount attachments use Screw Cat. No. 8X212DW. For metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all Clamps are available.
P612** replacement screws
CRL 52 Degree Slant Open Center Clamp "B" use slant open center clamps on top or bottom midpoint of slanted glass. Reversible center clamps at 52 degree angle.
For information on special ordering a different finish contact
CRL Technical Sales.

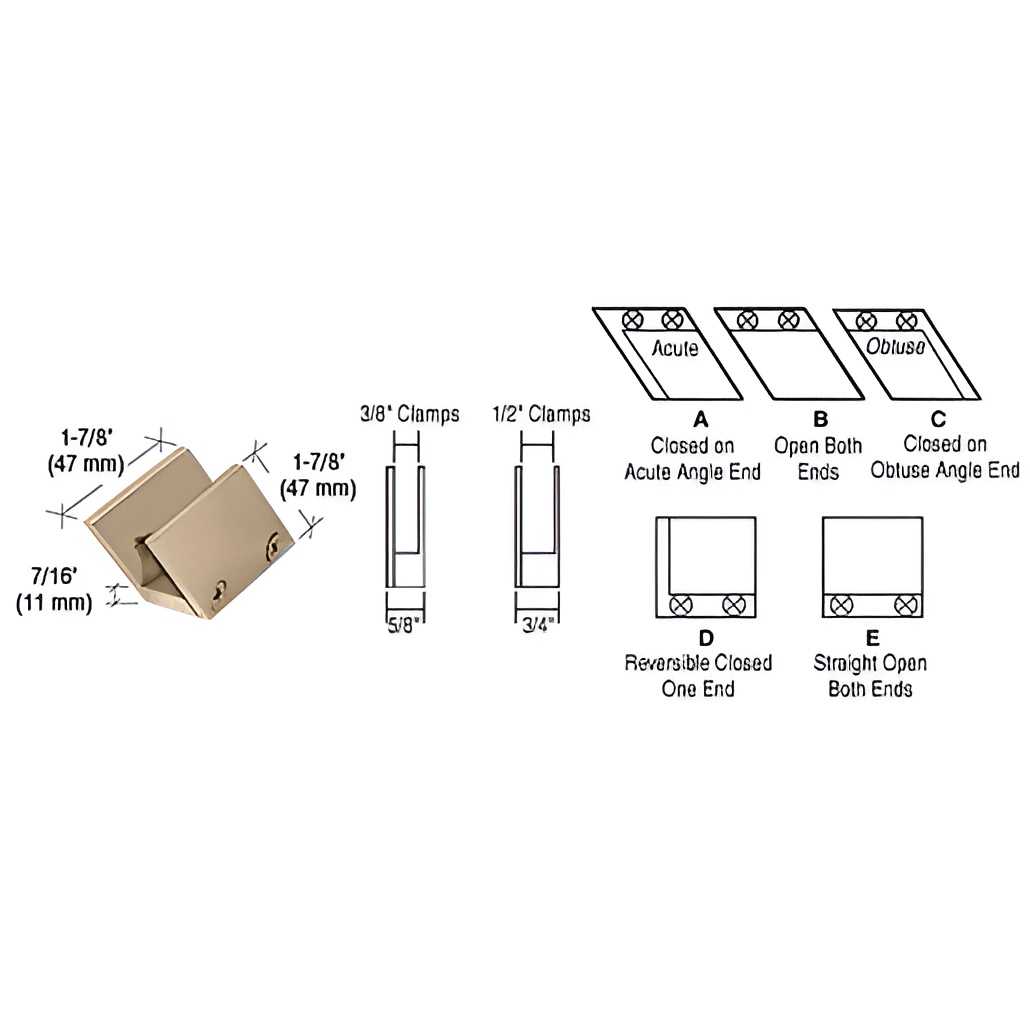

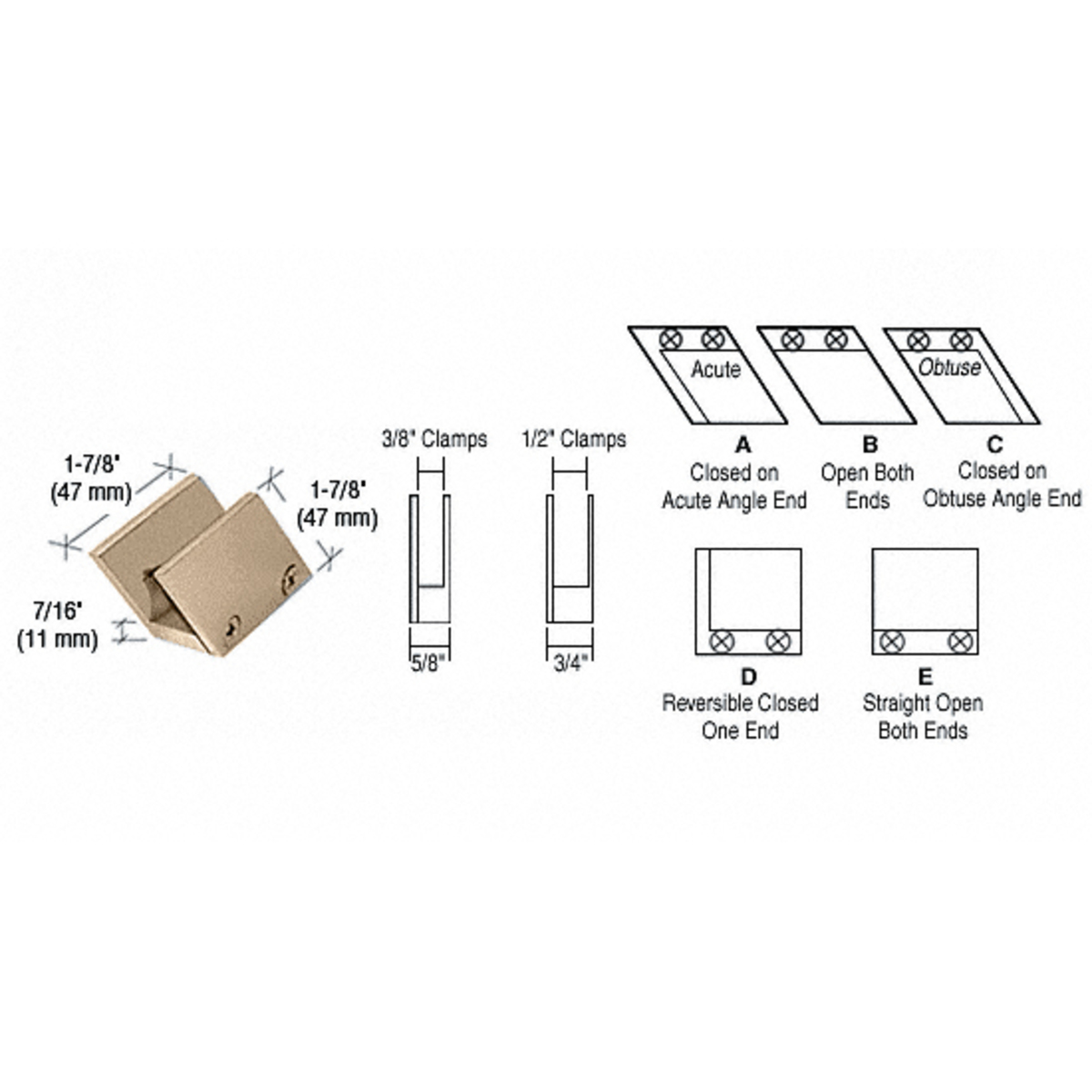

NOTE:
A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Base Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 3/4 in. (19 mm)
Finish/ Color:: Polished Brass
Glazing Thickness: 1/2 in. (13 mm)
Height: 1-7/8 in. (48 mm)
Material: Solid Brass
Shipping Limitations: None
Width: 1-7/8 in. (48 mm)
