CRL RH5512BN Brushed Nickel 1/2" 128 Slant Obtuse End Clamp Type 'C' Railing

Your Price: $26.97
Retail Price:$32.28
Your Savings:$5.31(16%)
CRL RH5512BN Brushed Nickel End Clamp for 1/2" glass, ideal for slanted railings. Custom finishes available.
Part Number : CRL_RH5512BN
Availability: 17 In Stock
CRL RH5512BN Brushed Nickel 1/2" 128 Slant Obtuse End Clamp Type 'C' Railing

Brushed Nickel 1/2" 128 Degree Slant Obtuse End Clamp Type 'C' Stair and Walkway Railing

  • Chrome, Brass, and Brushed Nickel Finishes
  • Custom Finishes Available on Request
  • For Glass Thickness 1/2" (12 mm)

Use CRL 128 Degree Slant Obtuse End Clamp 'C' on bottom of glass at high end of slant, or top of glass at low end of slant. Clamps at 128 degree angle.

P612** replacement screws



Our Glass and Railing Clamps are predrilled and ready for use in the construction of metal and glass railings, partitions, room dividers and more. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) thick tempered glass. Three popular finishes are stocked, with custom finishes available. Simply loosen screw on one end, insert glass edge and tighten. Use CRL Tuff-Pak Tape, to cushion glass in Clamps. For wood mount attachments use Screw Cat. No. 8X212DW. For metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all Clamps are available.

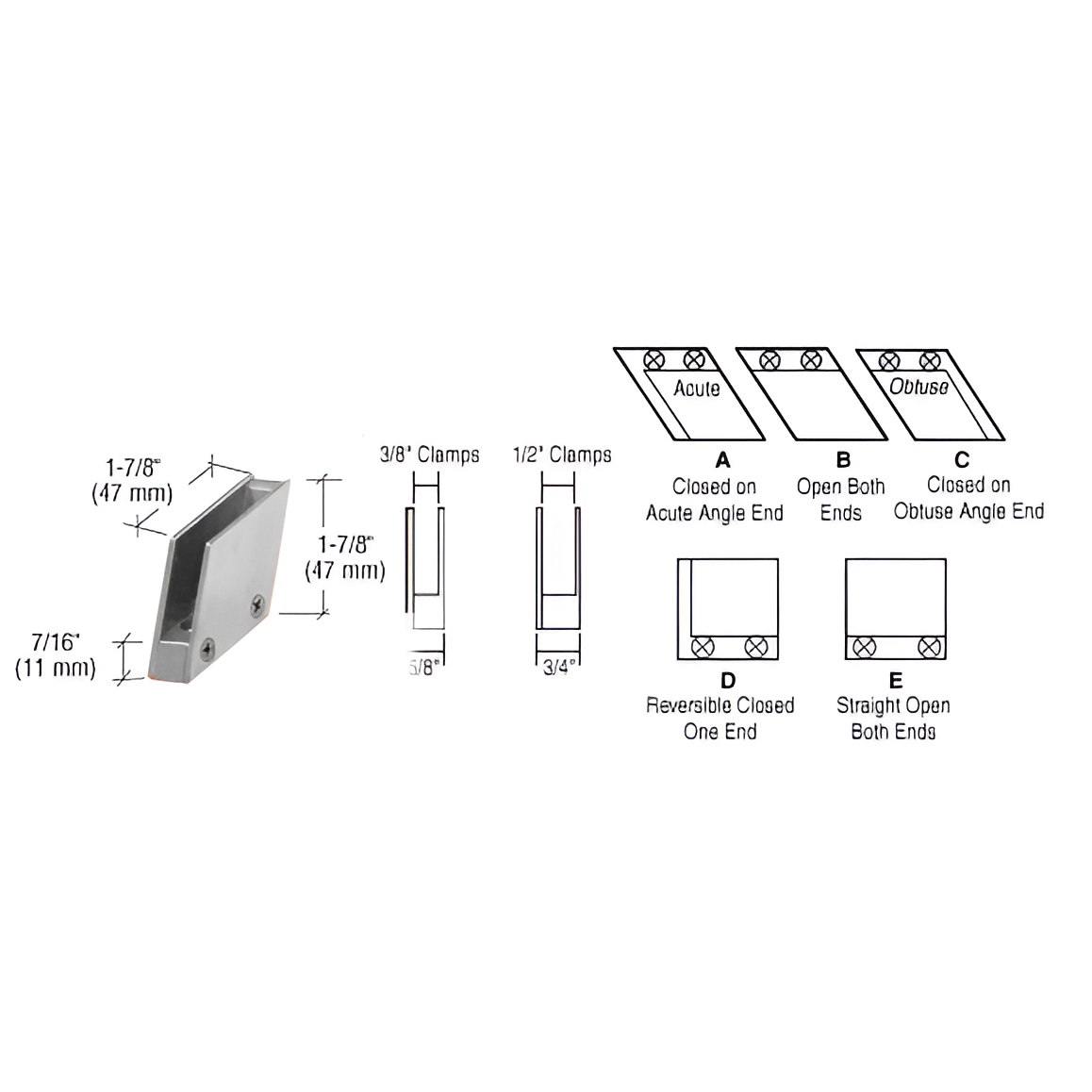

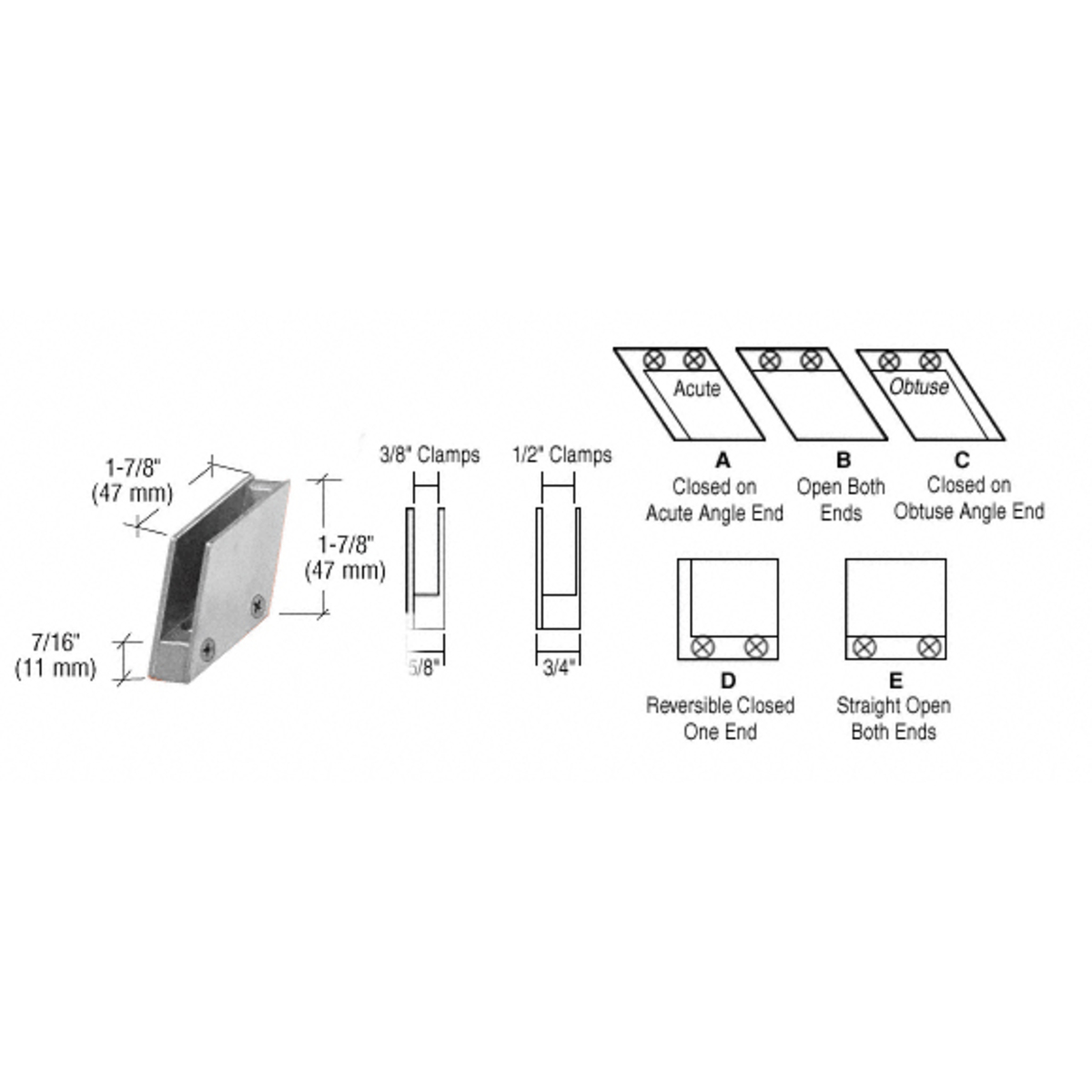

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Base Type: Flat

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Depth: 3/4 in. (19 mm)

Finish/ Color:: Brushed Nickel

Glazing Thickness: 1/2 in. (13 mm)

Height: 1-7/8 in. (48 mm)

Material: Solid Brass

Shipping Limitations: None
