CRL RS0B20PS 316 Polished Stainless Steel Standard 2" Glass Rail Standoff Fitting with Mounting Plate offers a robust and elegant solution for mounting glass panels in various architectural applications. Crafted from high-grade 316 stainless steel, this standoff fitting is designed to accommodate laminated glass thicknesses of 11/16" and 27/32" (17.52 mm and 21.52 mm) using Kuraray SentryGlas® interlayer, ensuring durability and safety. The 2" (51 mm) diameter caps on the threaded bolts secure the glass firmly, while the 3/8" (10 mm) thick stainless steel mounting plate, pre-drilled for easy installation, provides versatility across different substrates. Whether you're mounting to wood, concrete, or steel, this fitting is engineered for reliability and strength. Weighing 7.45 lbs (3.38 kg), the CRL RS0B20PS is not only functional but also aesthetically pleasing, available in polished stainless steel finishes with custom options upon request. Note that this product is intended for use exclusively with tempered laminated glass to ensure optimal performance. For maintenance, periodic care is recommended to preserve its factory finish, keeping installations looking pristine. Enhance your project with this professional-grade standoff fitting that embodies strength and style.

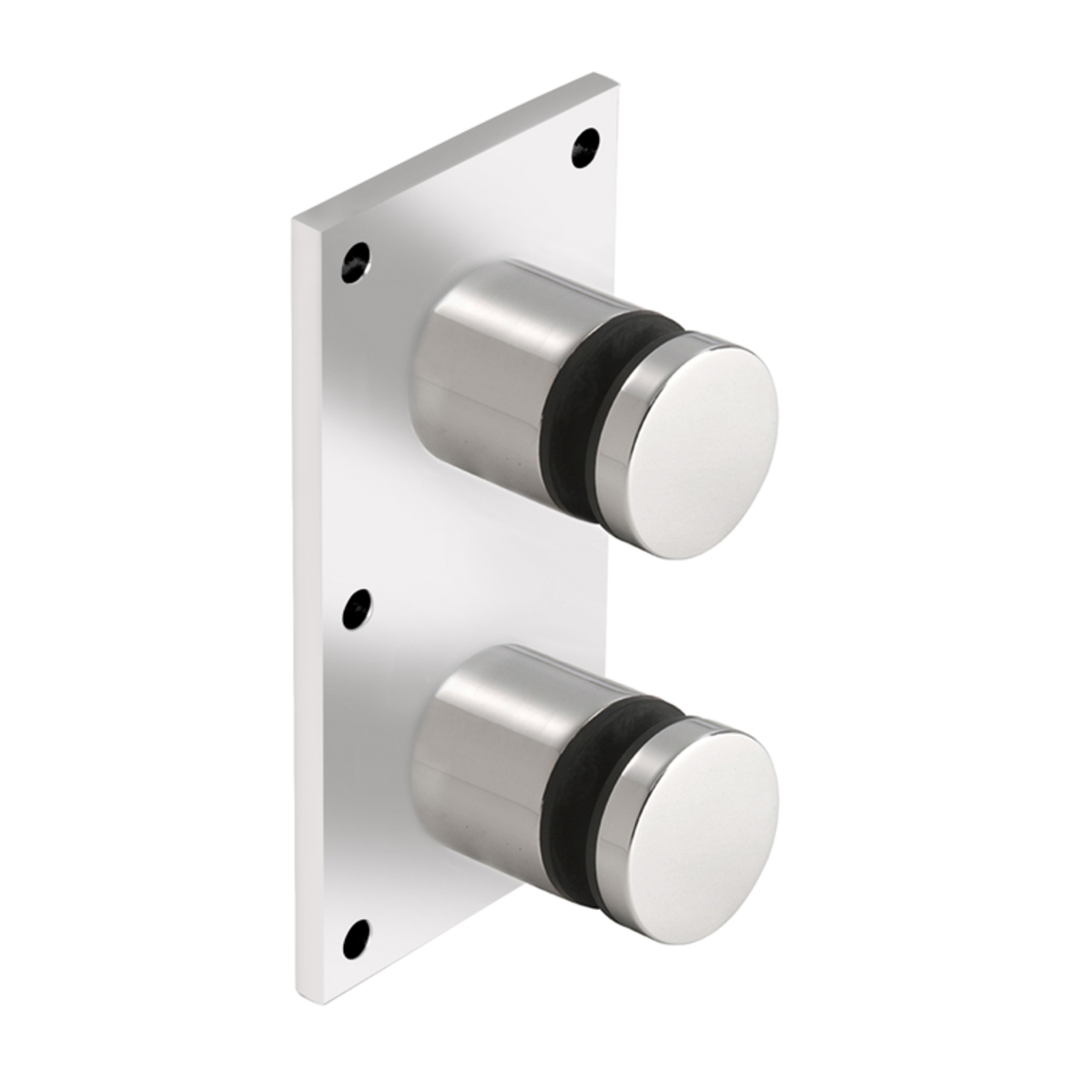

316 Polished Stainless Steel Standard 2" Glass Rail Standoff Fitting with Mounting Plate

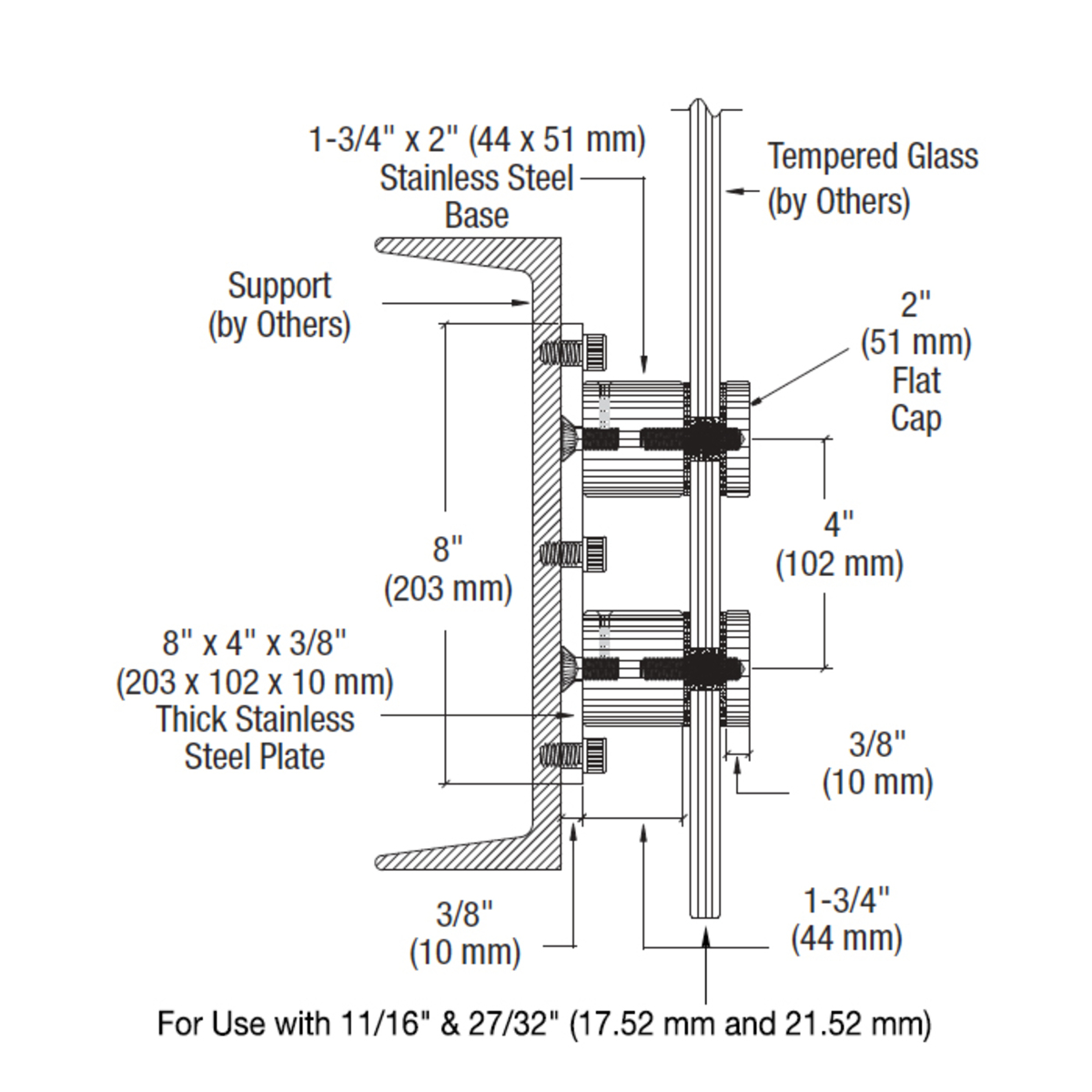

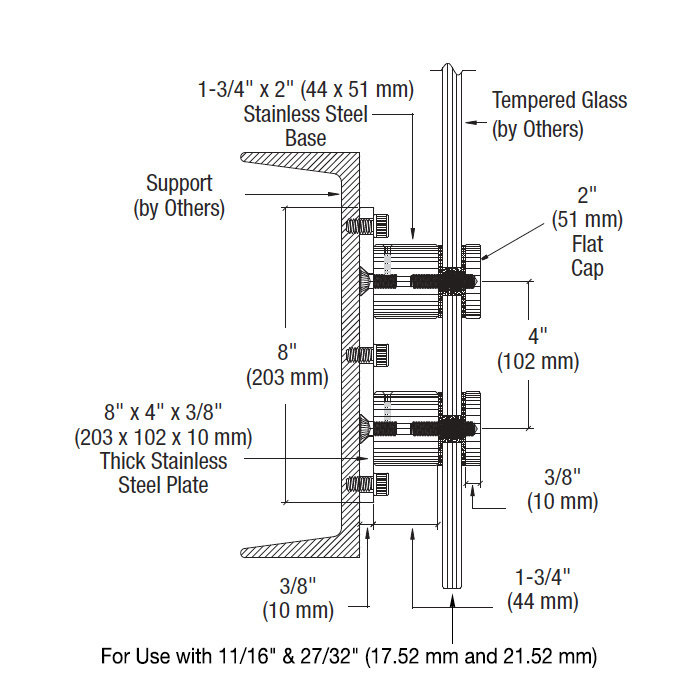

Our CRL Glass Rail Standoff Fittings can be used to mount glass up to 27/32" (21.52 mm) thick. This Alloy 316 stainless steel assembly can be mounted to a wood, concrete, or steel substrate, and features 2" (51 mm) diameter caps on threaded bolts to secure the glass. The 2" (51 mm) diameter Standoffs are fastened to a 3/8" (10 mm) thick stainless steel plate that is pre-drilled for mounting. Two popular stainless finishes are available from stock.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Base Plate Height: 8 in. (203 mm)
Base Plate Length: 4 in. (102 mm)
Base Plate Thickness: 3/8 in. (10 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Material: 316 Stainless Steel
Profile: Square
Shipping Limitations: None
