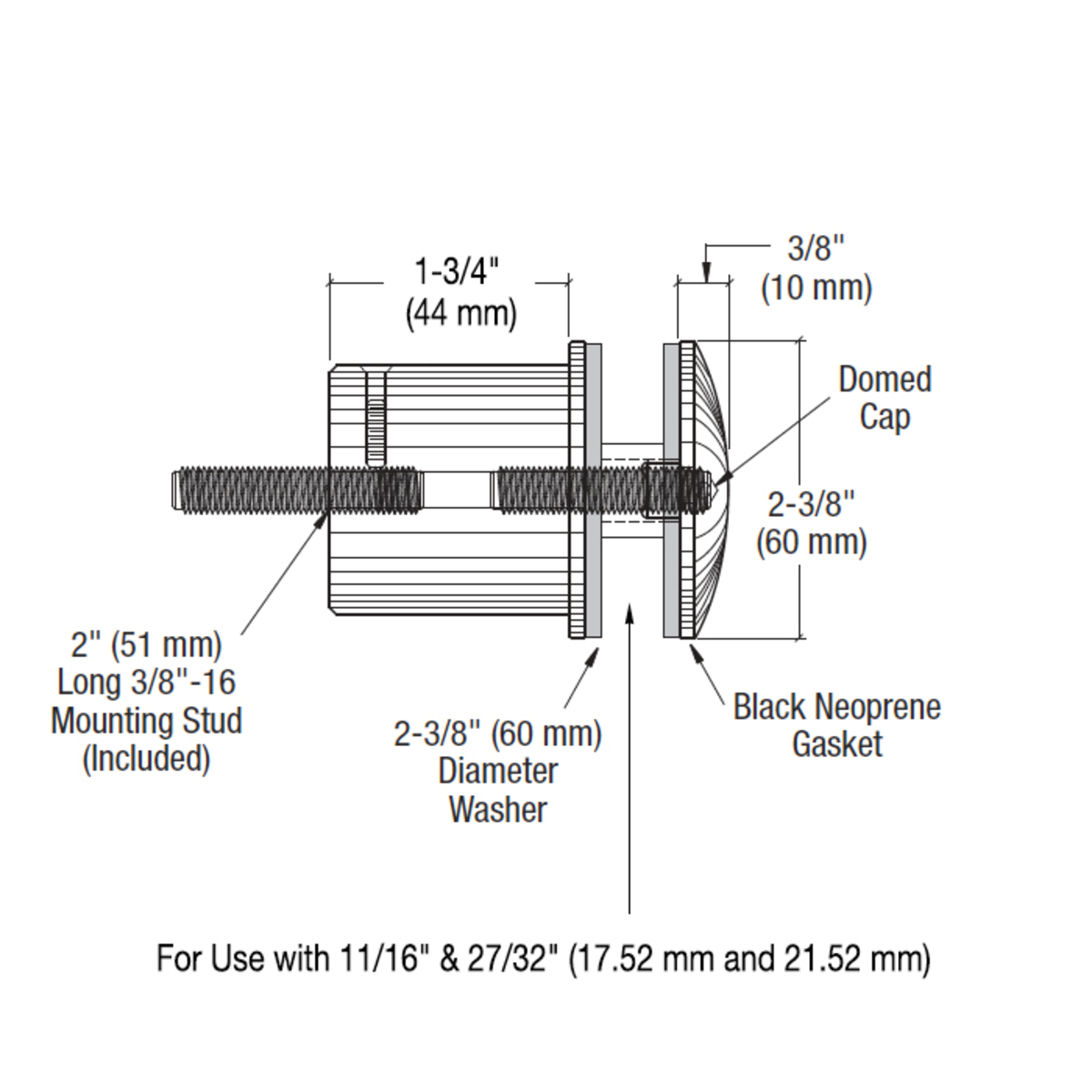

C.R. Laurence RS0B2135BS 316 Brushed Stainless 2-3/8" x 1-3/4" Point Supported Standoff Base and Domed Cap offers robust support for glass handrails and guardrails, ensuring safety and style in your architectural designs. Constructed from high-grade 316 stainless steel, this standoff fitting is engineered to withstand the elements while providing a sleek, modern finish. Designed for compatibility with both 1/2" and 3/4" (12 mm and 19 mm) monolithic tempered glass, as well as 9/16" and 27/32" (13.52 mm and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer, it supports various applications. The standoff features a 2-3/8" (60 mm) diameter and standard projection of 1-3/4" (44 mm) from the attachment point, with custom lengths and diameters available to suit specific project needs. Each unit includes a 3/8"-16 x 2" (51 mm) Allen stud for secure mounting to steel, along with essential gaskets and grommets. Additional attachment anchors for wood and concrete can be obtained separately. For optimal performance, a 3/4" (19 mm) diameter hole is required per fitting, and it is advisable to maintain a minimum height spacing of 4" (102 mm) center-to-center.

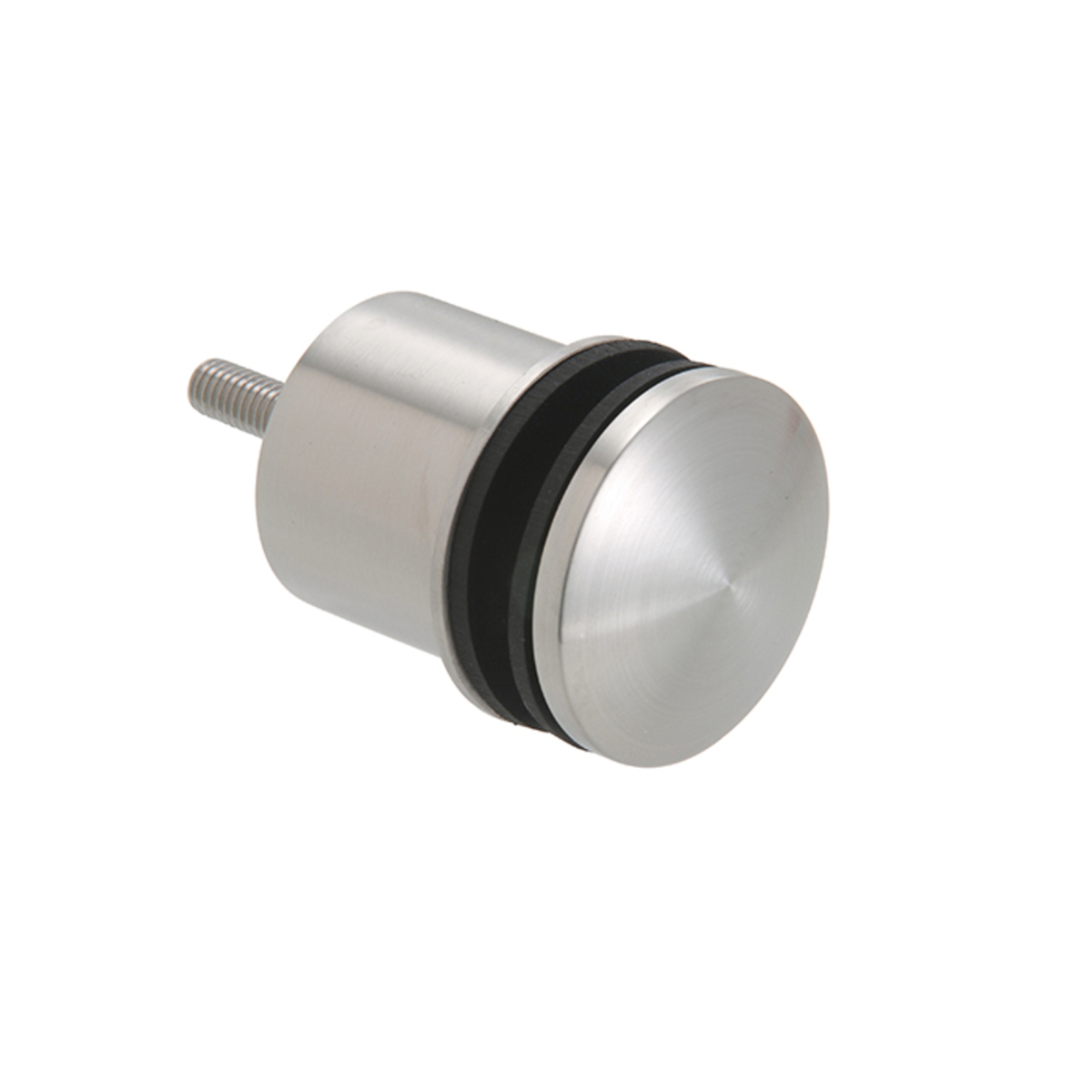

316 Brushed Stainless 2-3/8" x 1-3/4" Point Supported Standoff Base and Domed Cap
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Material: 316 Stainless Steel
Shipping Limitations: None
Width: 2 in. (51 mm)
