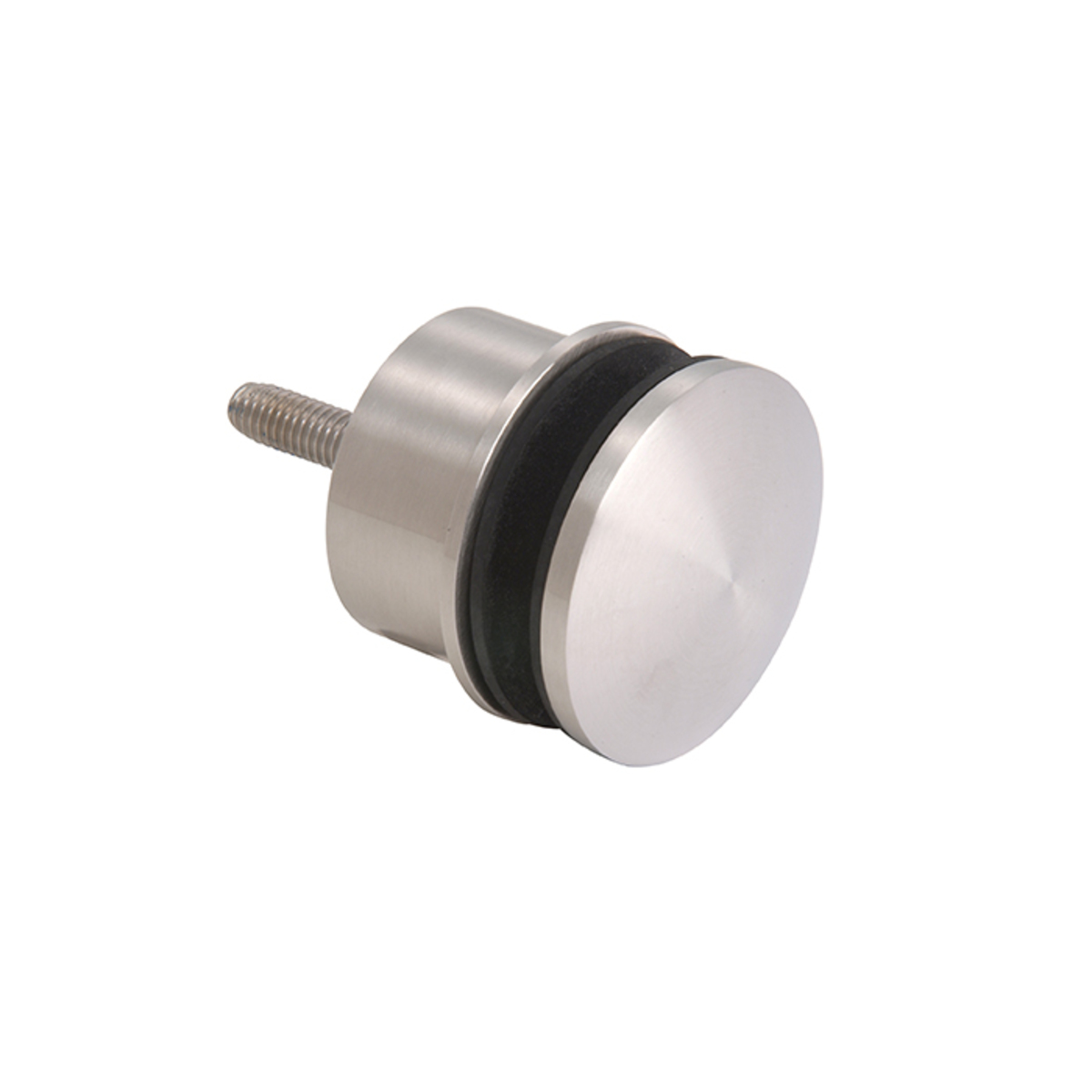

C.R. Laurence RS0B215BS 316 Brushed Stainless 2-3/8" x 1" Point Supported Standoff Base and Domed Cap is the ideal solution for glass handrail and guardrail applications. Constructed from high-grade 316 stainless steel, this heavy-duty fitting combines durability with elegance, available in both brushed and polished finishes to suit various aesthetic preferences. Designed for compatibility with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass, as well as 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer, the RS0B215BS ensures a secure and stable installation. Each standoff features a standard projection of 1" (25.4 mm) from the attachment point, with a generous diameter of 2-3/8" (60 mm). Additionally, it comes equipped with a 3/8"-16 x 2" (51 mm) Allen stud for easy mounting to steel, including necessary gaskets and grommets. For optimal performance, a 3/4" (19 mm) diameter hole is required for glass fabrication, and spacing between fittings should have a minimum height of 4" (102 mm) center-to-center. This product not only meets functional needs but also enhances the overall aesthetic of any architectural project, showcasing the quality and reliability that C.R. Laurence is known for.
316 Brushed Stainless 2-3/8" x 1" Point Supported Standoff Base and Domed Cap
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Material: 316 Stainless Steel
Shipping Limitations: None
Width: 2 in. (51 mm)
