CRL RS0B25BS 316 Brushed Stainless Steel 2-3/8" Glass Rail Standoff Fitting with PlateC.R. Laurence RS0B25BS 316 Brushed Stainless Steel Dome 2-3/8" Glass Rail Standoff Fitting with Mounting Plate offers a robust solution for securely mounting glass panels in various architectural applications. Designed for use with 1/2" and 3/4" monolithic tempered glass, as well as 9/16" and 27/32" laminated tempered glass featuring Kuraray SentryGlas® interlayer, this fitting ensures both safety and durability. The high-grade Alloy 316 stainless steel construction provides excellent corrosion resistance, making it ideal for both interior and exterior installations. The fitting features a generous 4" x 9-1/4" back plate that allows for greater adjustment during installation, along with four anchor points to accommodate challenging job site conditions. The 2-3/8" diameter domed cap and 3/8"-16 threaded stainless steel rod securely hold the glass in place. Custom sizes and finishes are available to meet specific project needs, while attachment anchors for wood, concrete, or steel are sold separately. The maximum bracket spacing is 24" on center, supporting glass panel widths up to 48". With its combination of functionality and style, the C.R. Laurence RS0B25BS standoff fitting is an essential component for any glass railing system.

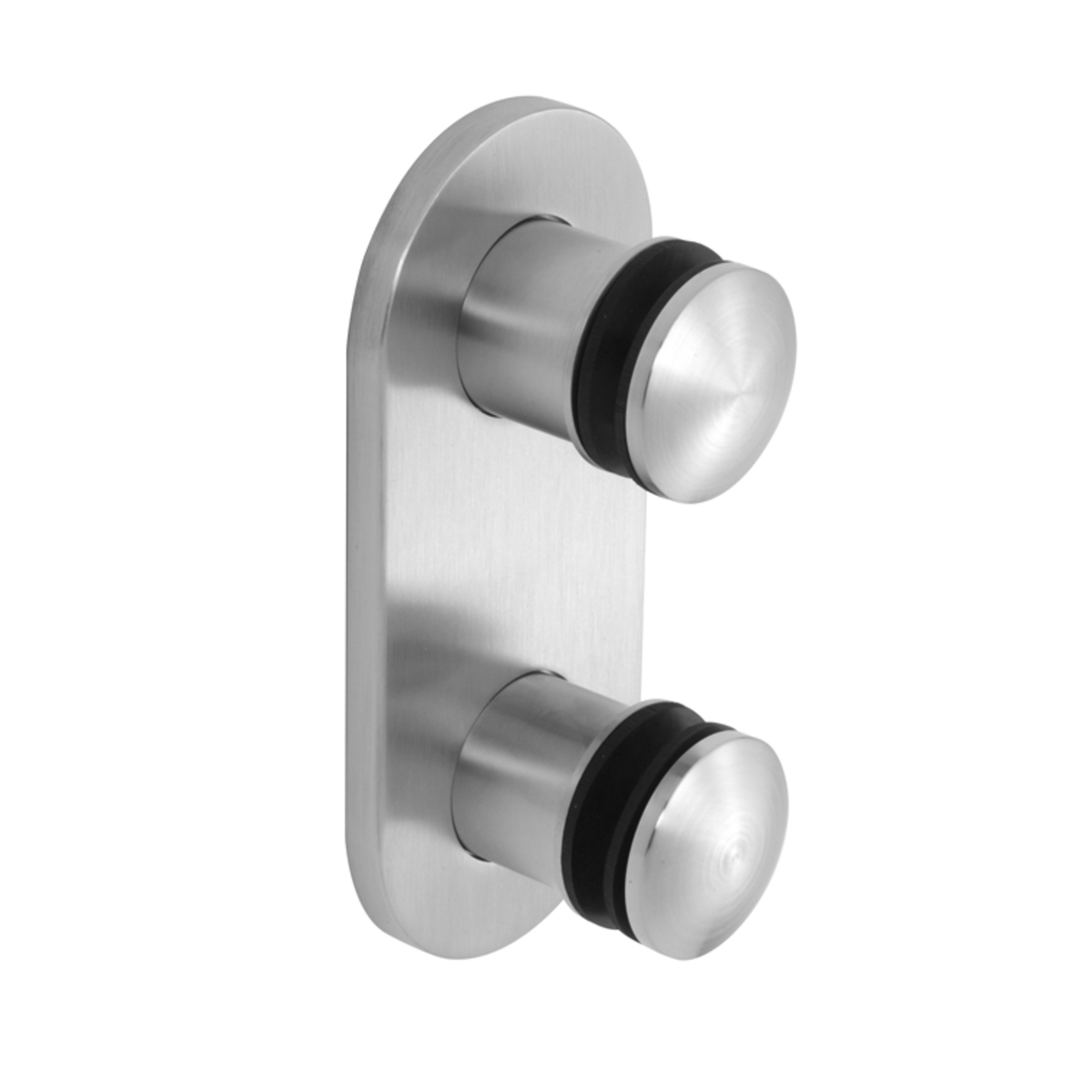

316 Brushed Stainless Steel Dome 2-3/8" Glass Rail Standoff Fitting with Mounting Plate
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- High Grade Alloy 316 Stainless Steel Standard
- Designed to Mount to Wood, Concrete or Steel
- Custom Sizes and Finishes Available
This

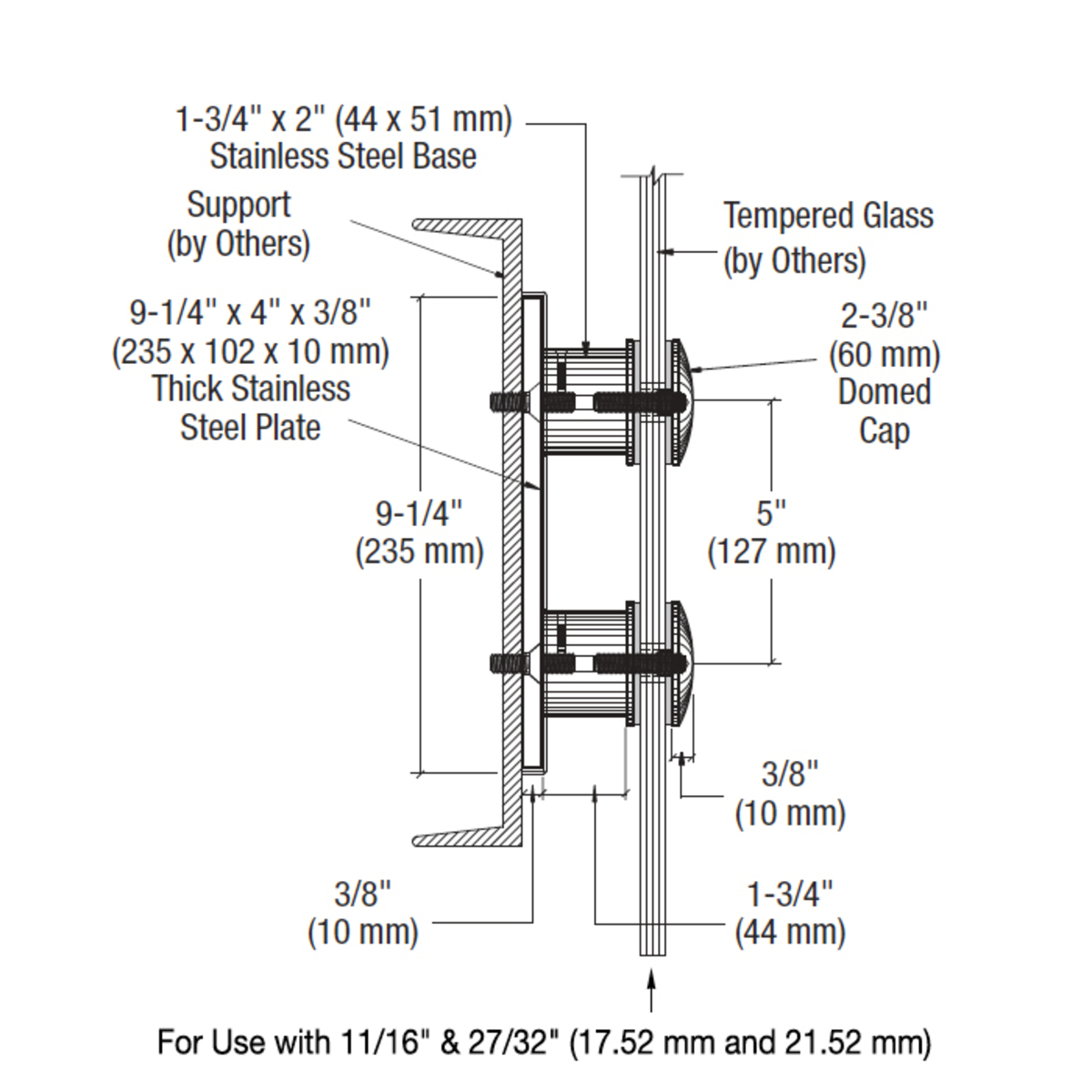

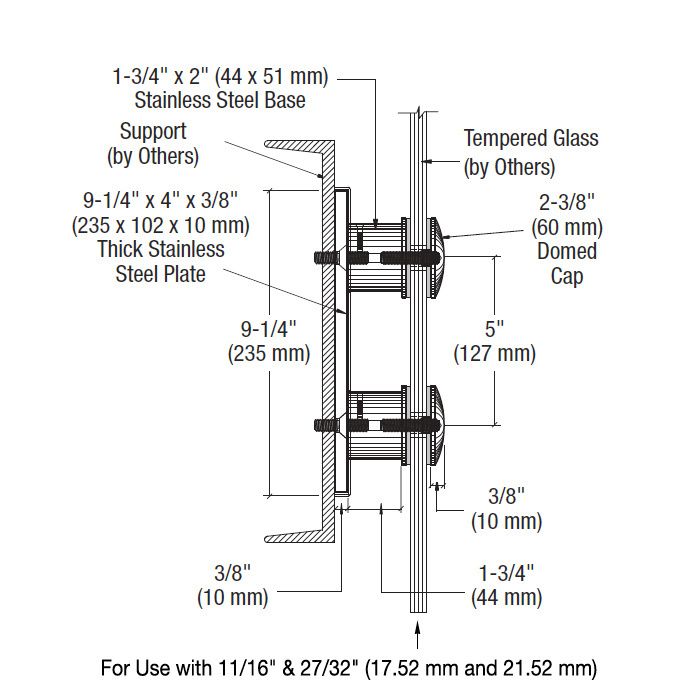

CRL Point Supported Standoff Fitting has a 4" x 9-1/4" (102 x 235 mm) back plate giving the installer more adjustment, and four anchor points during installation for those tricky job site mounting conditions. The steel back plate can be fastened directly to steel, concrete, or wood substrates and includes a cover plate. This versatile Standoff Fitting features a 2-3/8" (60 mm) diameter domed cap with a 3/8"-16 threaded stainless steel rod to secure the glass panel.
The 2-3/8" (60 mm) diameter Standoffs are mechanically fastened to a 3/8" (10 mm) thick Alloy 316 grade stainless steel back plate that is pre-drilled for mounting. Two popular stainless steel finishes are available from stock. If your customer has a special job site condition, custom diameters and lengths are also available. Attachment anchors for wood, concrete or steel are sold separately.
SPECIFICATIONS:
For use with 1/2" or 3/4" (12 or 19 mm) Monolithic Tempered Glass. Also for use with 9/16" or 27/32" (13.52 or 21.52 mm) Laminated Tempered Glass using Kuraray SentryGlas® Interlayer. Do not use with raw or annealed glass.
GLASS FABRICATION: Two 3/4" (19 mm) Diameter Holes Per Fitting.
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Minimum hole spacing between standoffs is 4" (102 mm). See our engineering report at
http://www.crlaurence.com/datasheets/testreports/docs/Standoff_Railing_Sys_Rep_032713.pdf
Product Warning:
For use with 1/2" or 3/4" (12 or 19 mm) tempered glass. Do not use with raw or annealed glass. NOTE: Maximum bracket spacing is 24" (610 mm) on center with 48" (1.22 m) maximum glass panel widths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Base Plate Height: 9-1/4 in. (235 mm)
Base Plate Length: 4 in. (102 mm)
Base Plate Thickness: 3/8 in. (10 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Material: 316 Stainless Steel
Shipping Limitations: None
Width: 2 in. (51 mm)
