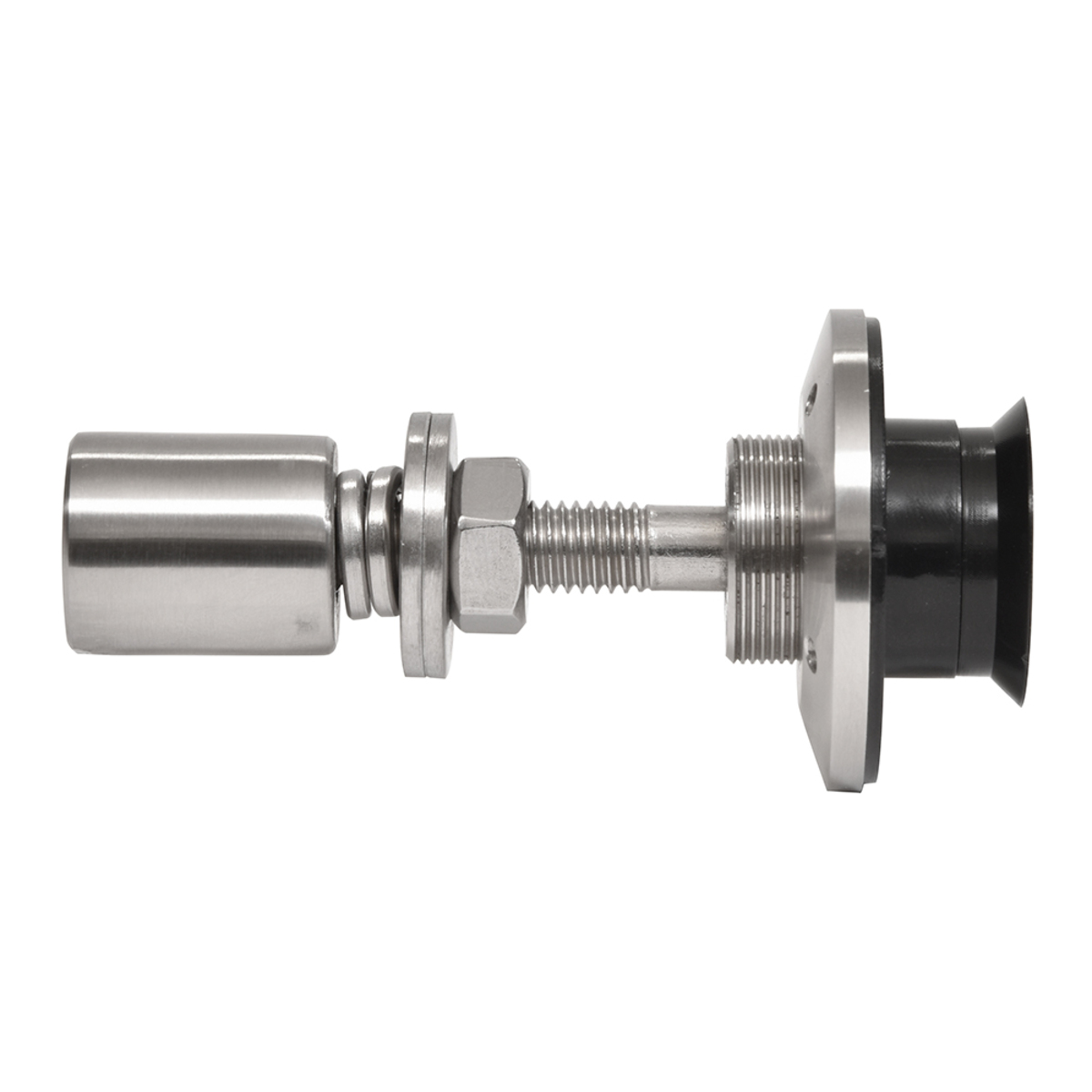

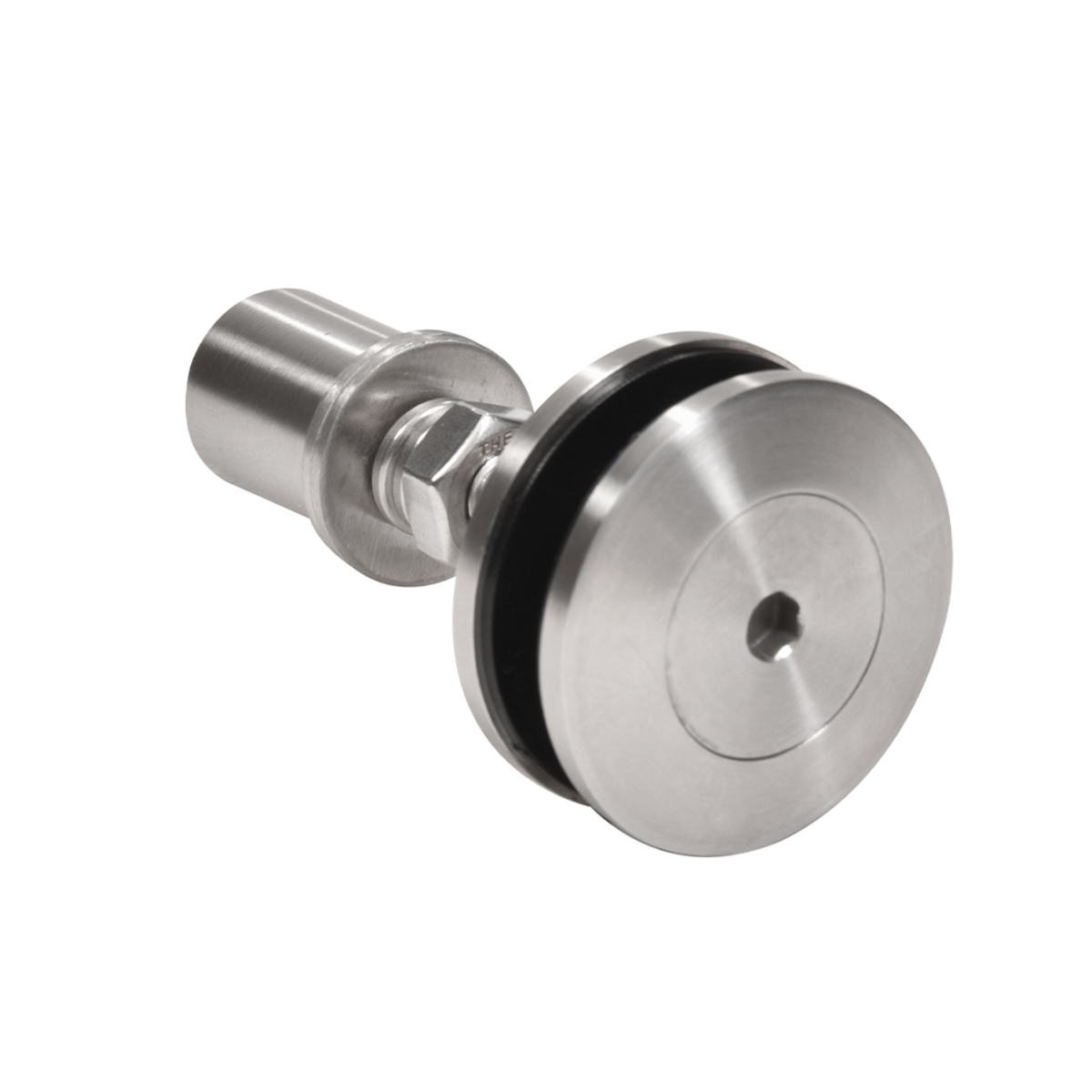

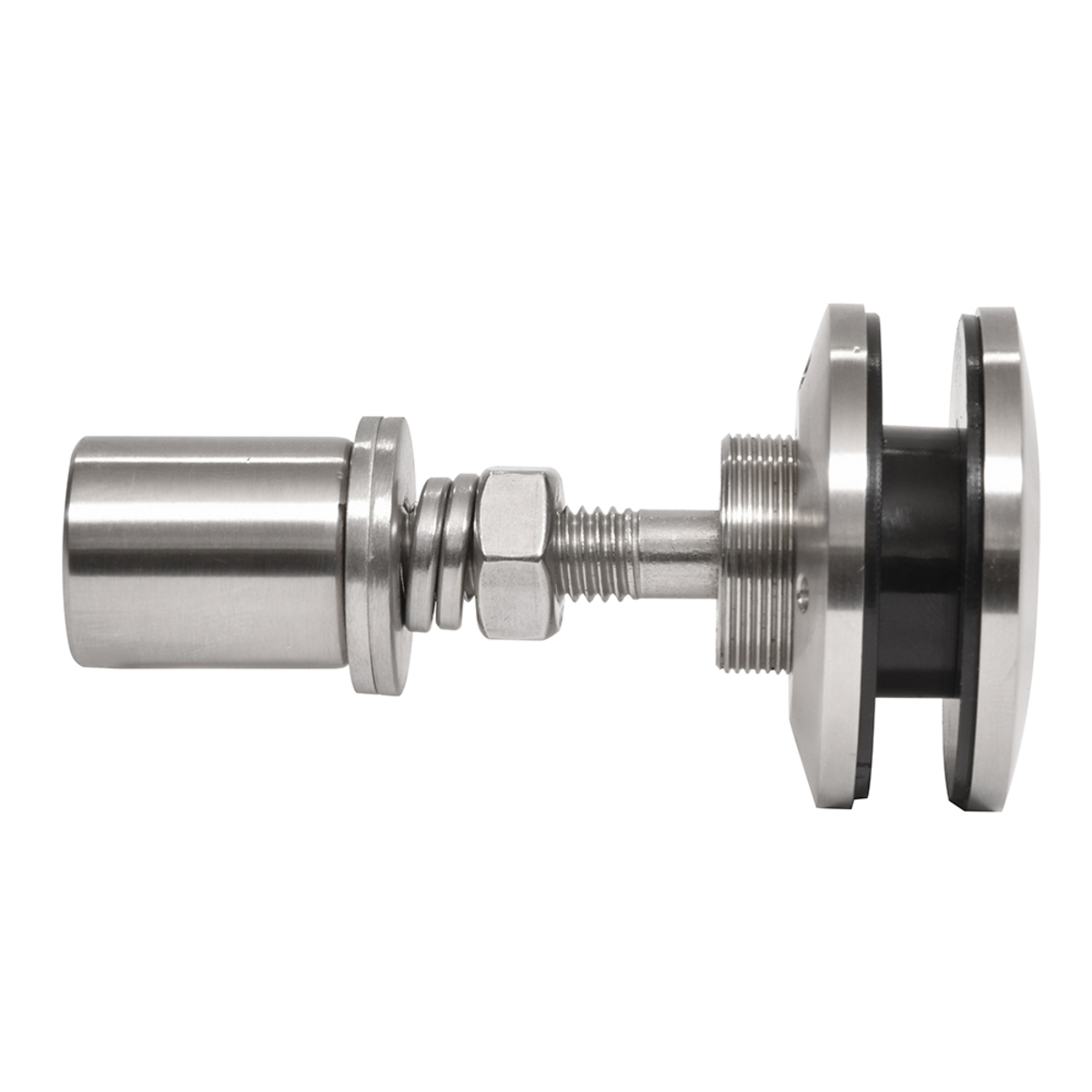

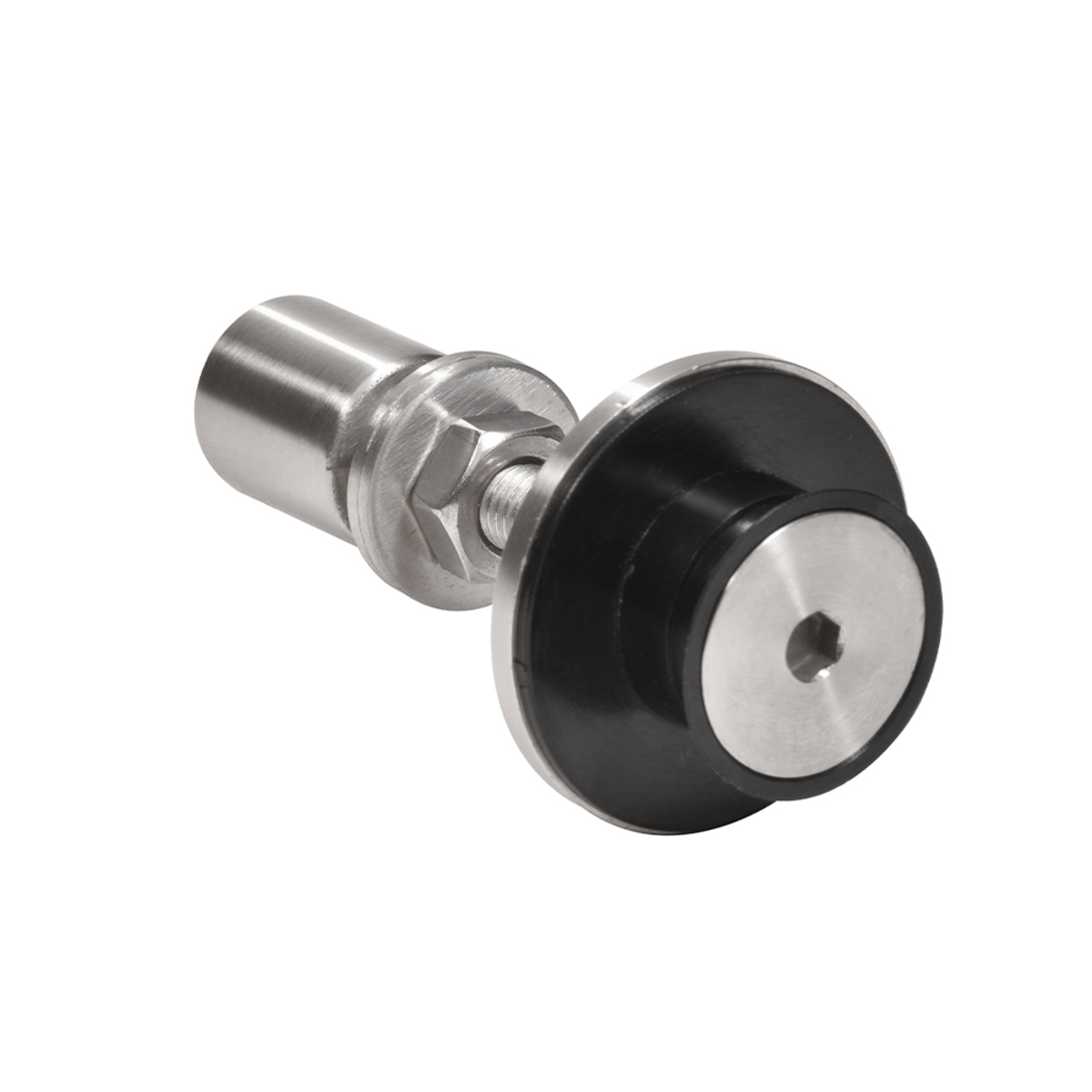

CRL RSF10BS 316 Brushed Stainless Steel Swivel Fastener for 3/8" to 1/2" Glass

Your Price: $53.95

Retail Price:$64.58

Your Savings:$10.63(16%)

CRL RSF10BS 316 Brushed Stainless Steel Swivel Fastener for 3/8" to 1/2" tempered glass, offering versatile flush or surface mounting.

Part Number : CRL_RSF10BS

Availability: 1782 In Stock

Quantity

Description

CRL RSF10BS 316 Brushed Stainless Steel Swivel Fastener for 3/8" to 1/2" Glass

C.R. Laurence RSF10BS 316 Brushed Stainless Steel Swivel Combination Fastener for 3/8" to 1/2" Tempered Glass is a versatile solution for achieving the seamless 'all-glass' look in your architectural designs. Engineered for use with 3/8" to 1/2" (10 to 12 mm) tempered glass, this fastener affords flexibility with its swivel head that tilts up to six degrees, allowing for even stress distribution across glass panels. This feature is essential in environments subject to live loads. Designed for both flush and surface mount installations, the RSF10BS offers the convenience of using one fitting for various applications. The unique combination glass attachment accommodates flush mounting with a countersunk hole or the cap type with a standard hole using the supplied adaptor washer. Crafted from durable 316 alloy stainless steel, this fastener is available in two attractive finishes: brushed and polished, enhancing both aesthetics and longevity. For maintenance, periodic care is recommended to preserve its factory finish, as stainless steel is resistant but not entirely stain-proof. Ensure the reliability of your glass installations with the C.R. Laurence RSF10BS, which is designed specifically for tempered glass applications and offers compatibility with all Regular Duty or Mini Spider fittings. Note: Do not use with annealed or raw glass.

316 Brushed Stainless Steel Swivel Combination Fastener for 3/8" to 9/16" Tempered Glass

For Use with 3/8" to 9/16" (10 to 13.52 mm) Tempered Glass
Designed for the 'All-Glass' Look
One Fitting for Either Flush or Surface Mount Installations
Rigid or Swivel Countersunk or Cap Glass Attachments Available
Made of 316 Alloy Stainless Steel in Two Attractive Finishes: Brushed and Polished
Replacement Gasket Set is Cat. No. RSF10RW

The head of the CRL Swivel Glass Attachment can tilt up to six degrees in any direction on its ball and socket joint. This allows for any stress applied to the glass to be more evenly distributed across the entire panel of glass rather than concentrating at the hole. These are typically used in conditions where the glass will be subject to live loads.

The Swivel Head Fitting also employs our special Combination Glass Attachment design so it can be used for 'flush' mounting for a smooth exterior surface when the glass is fabricated with a countersunk hole. This same Fitting can be used for the 'cap' type of mounting when using the supplied adaptor washer. This requires just a standard hole in the glass.

NOTE: Either the Rigid Head or Swivel Head Combination Glass Attachments can be used with all Regular Duty or Mini Spider Fittings.

NOTE: We suggest when using the flush mount method that you give your glass fabricator a sample Flush Mount Glass Attachment to ensure a proper flush fit.

Product Warning:

Do Not Use with Annealed or Raw Glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Articulation: Swivel

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/4 in. (19 mm)

Glazing Type: Tempered Monolithic

Load Capacity: Regular

Material: 316 Stainless Steel

Shipping Limitations: None
