CRL RSF10PS 316 Polished Stainless Steel Swivel Fastener for 3/8" to 1/2" Glass

Your Price: $97.97

Retail Price:$117.28

Your Savings:$19.31(16%)

The CRL RSF10PS is a polished stainless steel swivel fastener for 3/8" to 1/2" tempered glass, offering versatile mounting options.

Part Number : CRL_RSF10PS

Availability: 1423 In Stock

Quantity

Description

CRL RSF10PS 316 Polished Stainless Steel Swivel Fastener for 3/8" to 1/2" Glass

C.R. Laurence RSF10PS 316 Polished Stainless Steel Swivel Combination Fastener is designed specifically for use with 3/8" to 1/2" (10 to 12 mm) tempered glass, making it an ideal choice for achieving the sought-after 'All-Glass' look in contemporary designs. This versatile fitting accommodates both flush and surface mount installations, providing flexibility for various architectural applications. The unique swivel head can tilt up to six degrees in any direction, allowing stress to be evenly distributed across the glass panel, rather than concentrating at the hole. This feature is particularly beneficial in scenarios where the glass is subject to live loads. Furthermore, the fastener supports rigid or swivel countersunk or cap glass attachments, enhancing installation options. Crafted from durable 316 alloy stainless steel, the RSF10PS is available in both brushed and polished finishes, ensuring it complements a range of contemporary aesthetics. For optimal performance, it’s advised to use the flush mount method with a sample attachment to guarantee a proper fit. Please note that this product should not be used with annealed or raw glass. Regular maintenance will help preserve the factory finish, ensuring the longevity of this exceptional fastener in any architectural project.

316 Polished Stainless Steel Swivel Combination Fastener for 3/8" to 9/16" Tempered Glass

For Use with 3/8" to 9/16" (10 to 13.52 mm) Tempered Glass
Designed for the 'All-Glass' Look
One Fitting for Either Flush or Surface Mount Installations
Rigid or Swivel Countersunk or Cap Glass Attachments Available
Made of 316 Alloy Stainless Steel in Two Attractive Finishes: Brushed and Polished
Replacement Gasket Set is Cat. No. RSF10RW

The head of the CRL Swivel Glass Attachment can tilt up to six degrees in any direction on its ball and socket joint. This allows for any stress applied to the glass to be more evenly distributed across the entire panel of glass rather than concentrating at the hole. These are typically used in conditions where the glass will be subject to live loads.

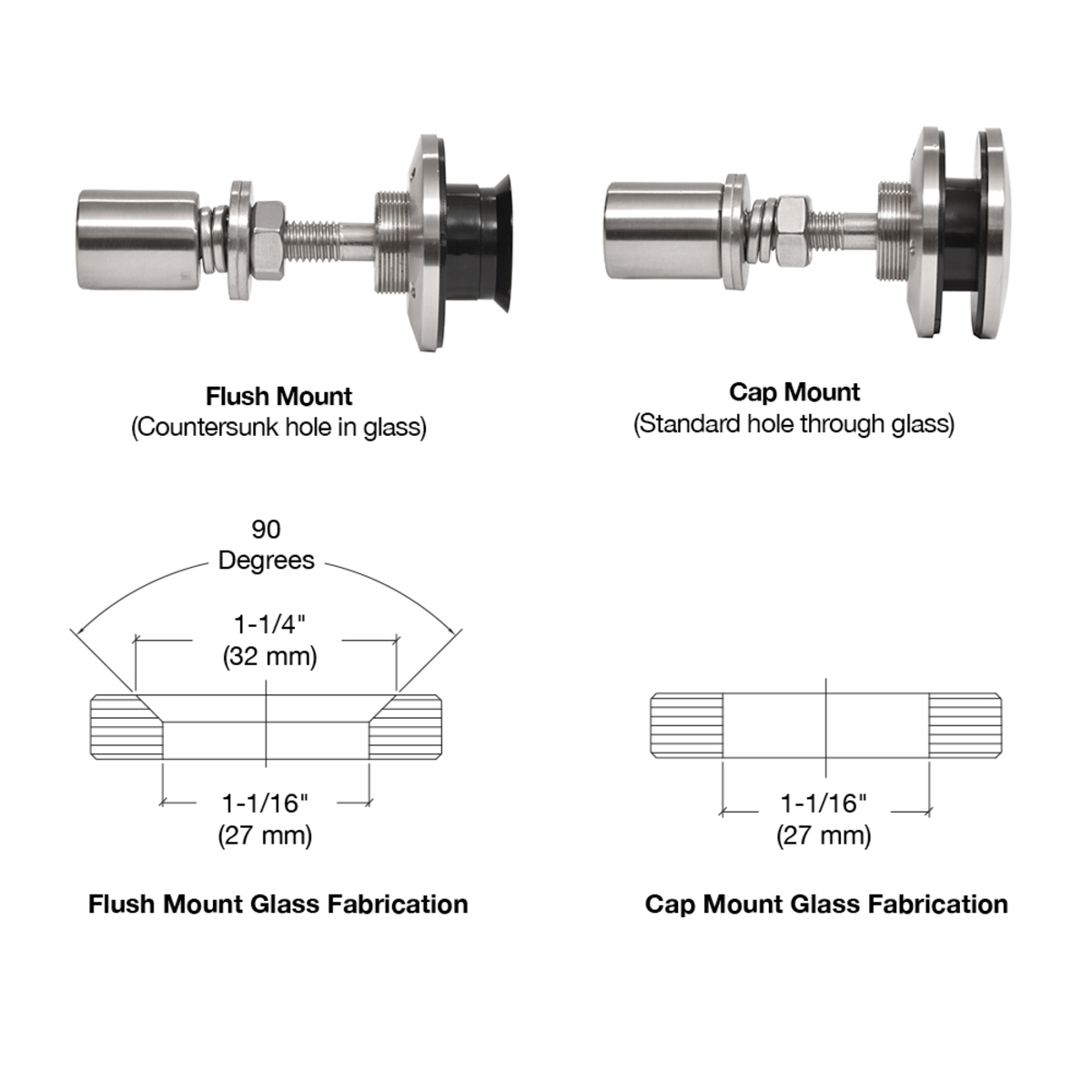

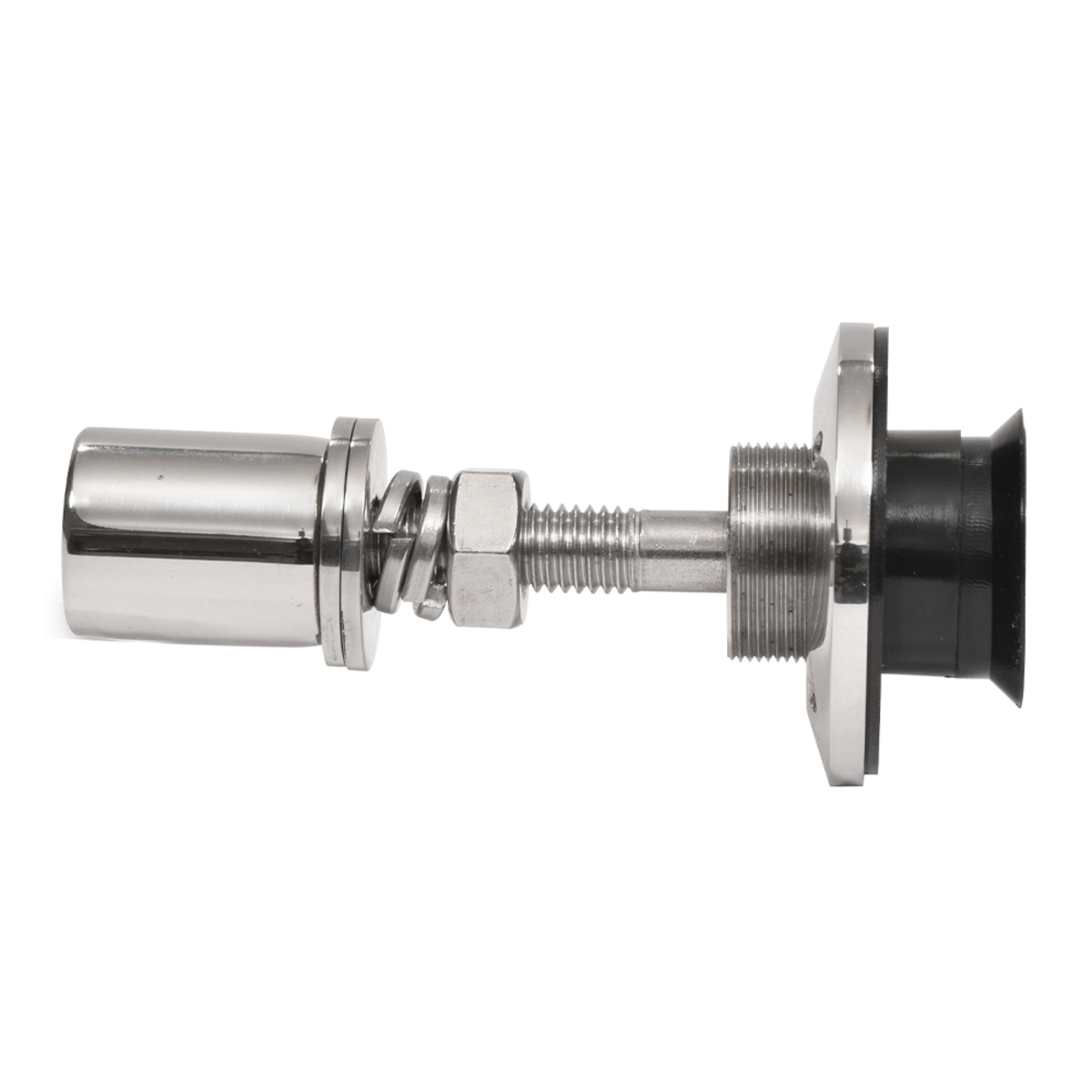

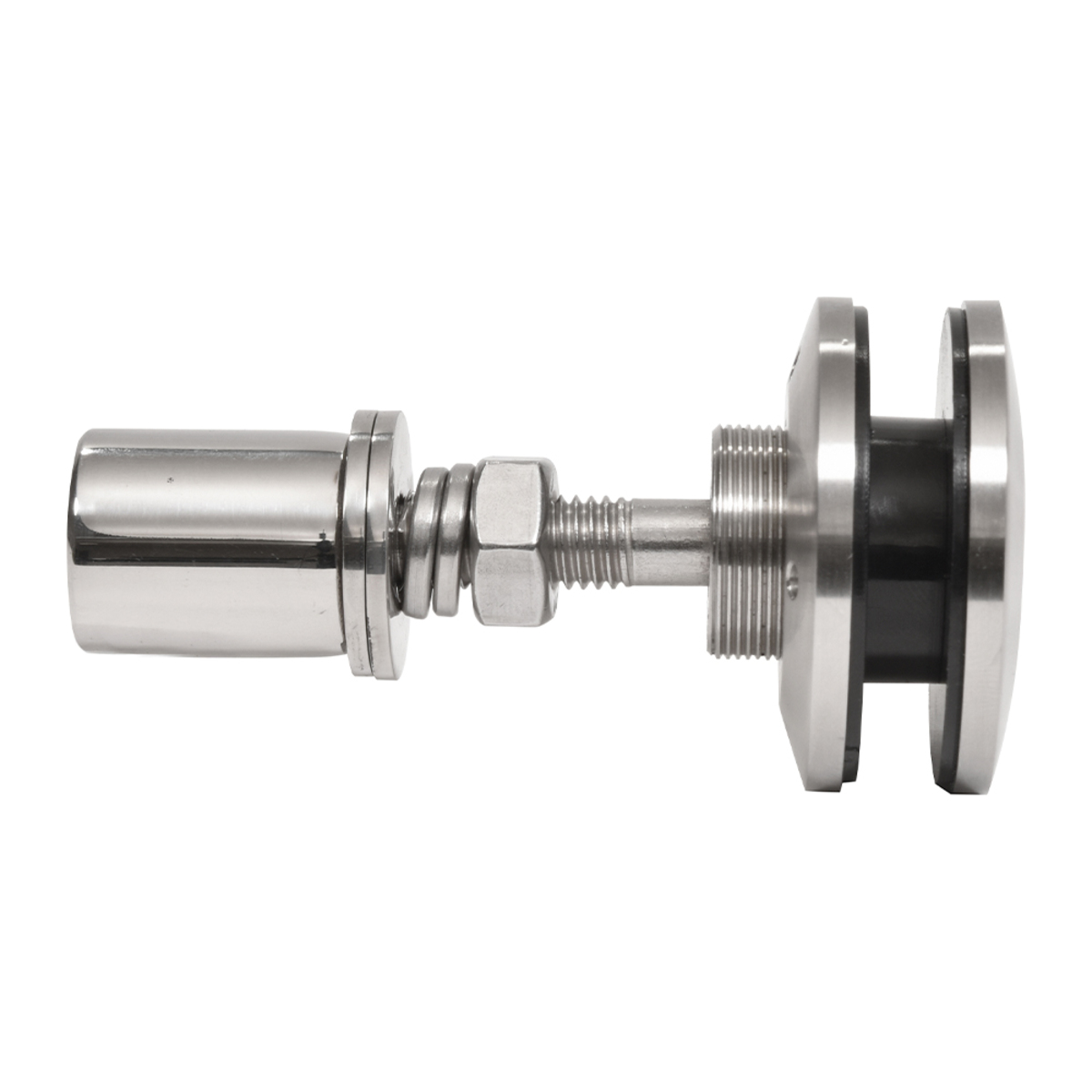

The Swivel Head Fitting also employs our special Combination Glass Attachment design so it can be used for 'flush' mounting for a smooth exterior surface when the glass is fabricated with a countersunk hole. This same Fitting can be used for the 'cap' type of mounting when using the supplied adaptor washer. This requires just a standard hole in the glass.

NOTE: Either the Rigid Head or Swivel Head Combination Glass Attachments can be used with all Regular Duty or Mini Spider Fittings.

NOTE: We suggest when using the flush mount method that you give your glass fabricator a sample Flush Mount Glass Attachment to ensure a proper flush fit.

Product Warning:

Do Not Use with Annealed or Raw Glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Articulation: Swivel

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/4 in. (19 mm)

Glazing Type: Tempered Monolithic

Load Capacity: Regular

Material: 316 Stainless Steel

Shipping Limitations: None
