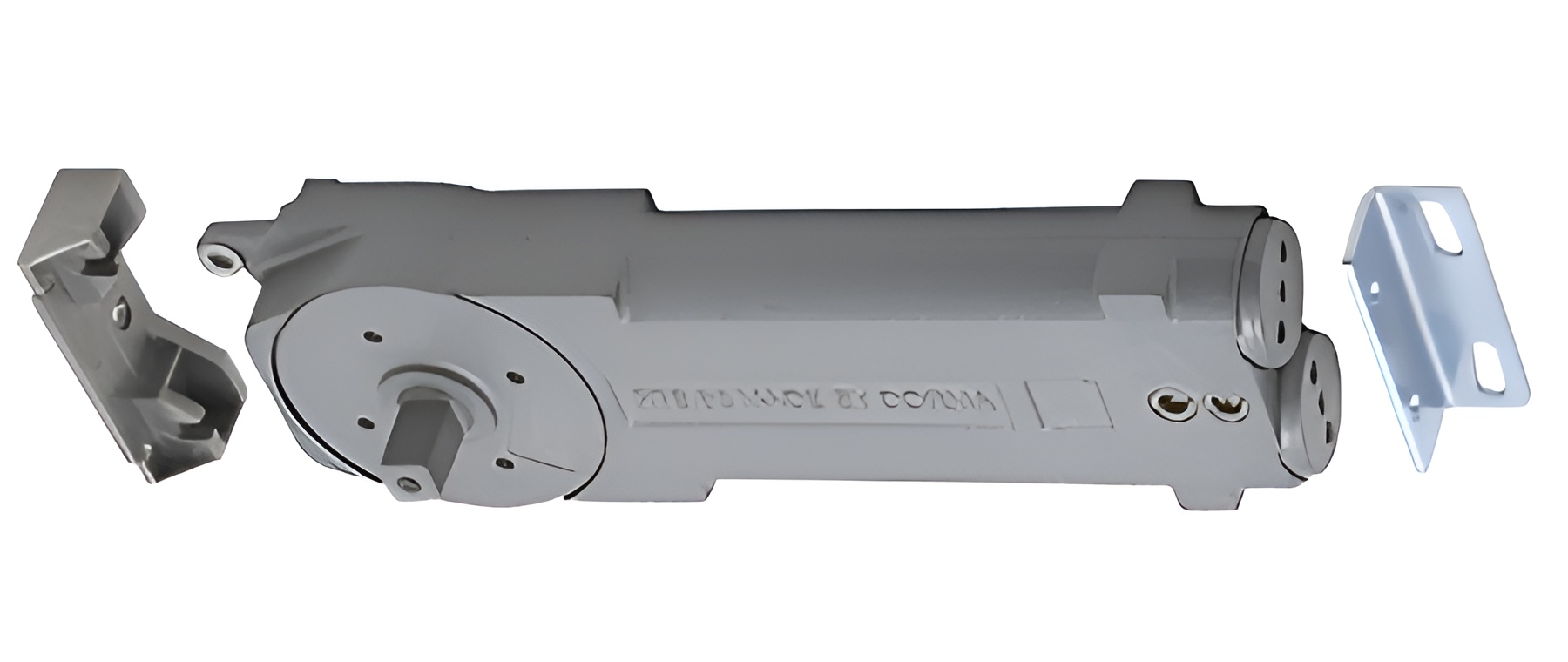

CRL RTS88105XH03 Dormakaba Overhead Concealed Closer, 105 Hold Open, Size 3

C.R. Laurence RTS88105XH03 Dormakaba Overhead Concealed Closer 105 Degree Hold Open Extended Spindle - Size 3 is designed for seamless integration into your door systems. This medium-duty closer features an extended spindle, making it ideal for use with patch fittings, and is recommended for doors ranging from 30" to 42" wide and up to 96" in height. With a maximum door weight capacity of 250 lbs., this closer ensures robust performance for both aluminum and hollow metal doors. The dual action and non-critical valves allow for independent control adjustments of closing and latching speeds, offering both flexibility and precision in operation. The included standard mounting clips simplify installation, making it easier for professionals to achieve a polished finish. Measuring 1-1/2" in height, 11-1/2" in length, and 3-9/16" in width, the RTS88105XH03 is compact yet powerful. It features a hold-open function at a 105-degree door opening, enhancing accessibility while maintaining safety. Each closer body is UL Listed, ensuring compliance with industry standards. For a reliable, efficient, and aesthetically pleasing solution to your door control needs, the C.R. Laurence Dormakaba Overhead Concealed Closer is an excellent choice.

Dormakaba Overhead Concealed Closer 105 Degree Hold Open Extended Spindle - Size 3

• Extended Spindle for Use with Patch Fittings
• Standard Mounting Clips Included
• Recommended for doors 30" to 42" (762 to 1067 mm) Wide x 96" (2438 mm) High
• Maximum Door Weight: 250 Lbs.
• Size 3 - Medium Duty

Resources

• How to Order Overhead Concealed Closers.pdf
