CRL S010X10PS Polished Stainless 10" Offset Square Back-to-Back Glass Pull HandleC.R. Laurence S010X10PS Polished Stainless 10" Glass Mounted Offset Square Back-to-Back Pull Handle offers a sleek and modern solution for glass doors. Designed for use with 3/8" to 3/4" (10 to 19 mm) tempered glass, this pull handle features a robust construction of 1" diameter stainless steel tubing, ensuring durability and strength. The handle is ideal for back-to-back mounting, providing a seamless aesthetic that enhances any entrance. Included with the handle are through-bolts for secure glass mounting, along with matching finish metal washers and rubber gaskets for a professional installation. With stock sizes available in 10", 12", 18", and 24", and finishes in polished and brushed stainless, you can select the perfect fit for your project. To install this handle, glass fabrication requires two 5/8" (16 mm) diameter holes, allowing for a clean and precise fit. While stainless steel is resistant to corrosion, CRL advises periodic maintenance to preserve its factory finish. This pull handle combines functionality with contemporary design, making it an excellent choice for commercial and residential applications alike.

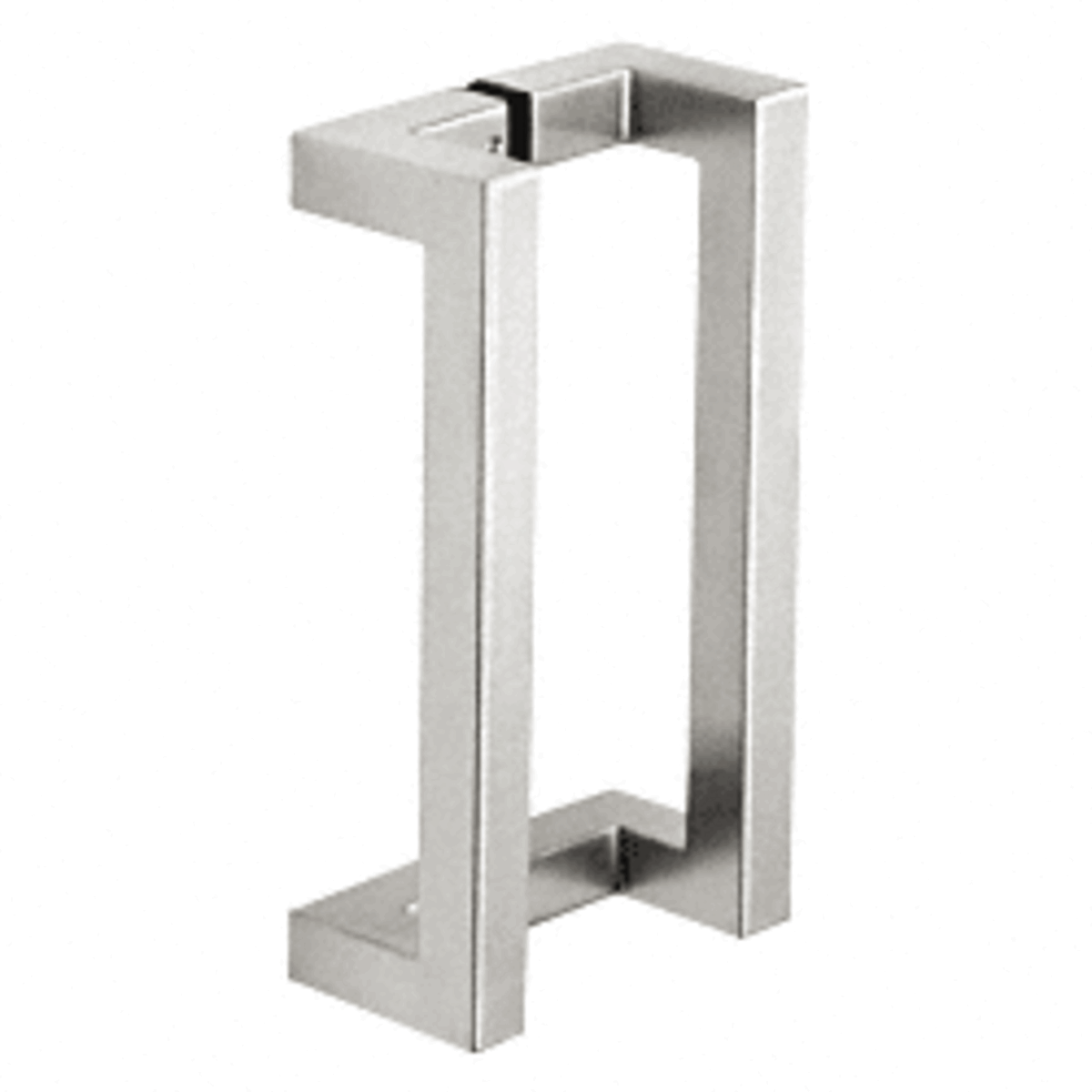

Polished Stainless 10" Glass Mounted Offset Square Back-to-Back Pull Handle
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Extra Bolts Available, Sold Separately
- Available in Four Sizes and Two Finishes
CRL Contemporary Offset Square Tubular Pull Handle are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" tempered glass. Stock sizes range from 10", 12", 18" and 24" length. Standard finishes are polished stainless and brushed stainless. The pulls are constructed of 1" diameter stainless-steel tubing.
SPECIFICATIONS:
For Use with: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish
Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 10 in. (254 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
