CRL S0B11412PS 316 Polished Stainless 1.25" x 0.5" Standoff Base

CRL S0B11412PS 316 Polished Stainless 1.25" x 0.5" Standoff Base

C.R. Laurence S0B11412PS 316 Polished Stainless 1-1/4" Diameter by 1/2" Standoff Base offers a sophisticated solution for showcasing glass, plastic, or wood panels in a variety of settings. With its 1-1/4" (32 mm) diameter, this versatile standoff base is ideal for both commercial and residential projects, allowing for a modern aesthetic that complements any design scheme. The S0B11412PS is available in several lengths, ranging from 1/4" to 6" (6 to 152.4 mm), ensuring a perfect fit for your specific application. Each base is drilled and tapped with a 5/16"-18 thread throughout its length, facilitating easy installation. Custom lengths and finishes can be requested by contacting the Technical Sales Department, providing flexibility to meet your design needs. Constructed from durable 316 polished stainless steel, this standoff base is not only visually appealing but also resistant to corrosion, ensuring longevity. It pairs seamlessly with CRL's Edge Grips and Swivel Fittings for enhanced versatility. Please note that the minimum material thickness required for the standoff bases is 1/4" (6 mm) for standard caps and 3/8" (10 mm) for flush mount caps. For installation assistance or additional design support, the CRL Technical Sales Department is readily available to help.

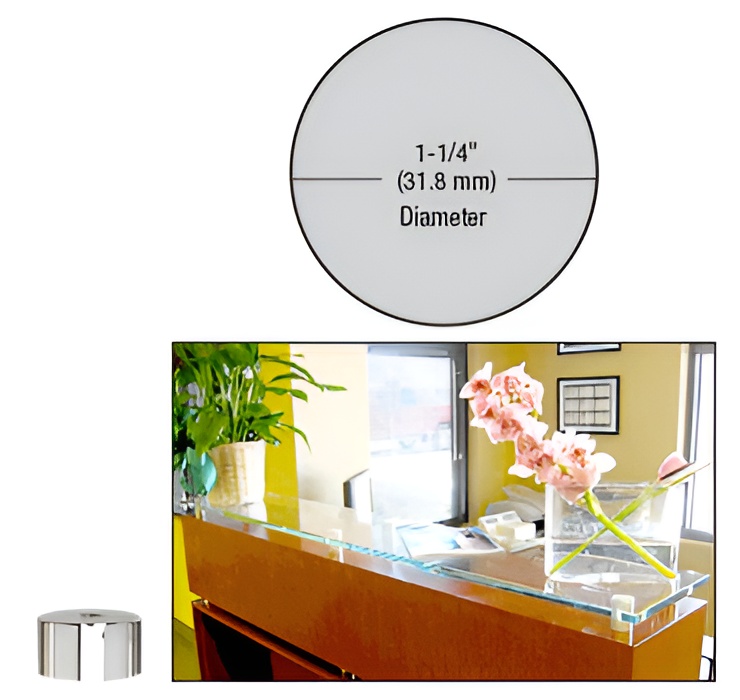

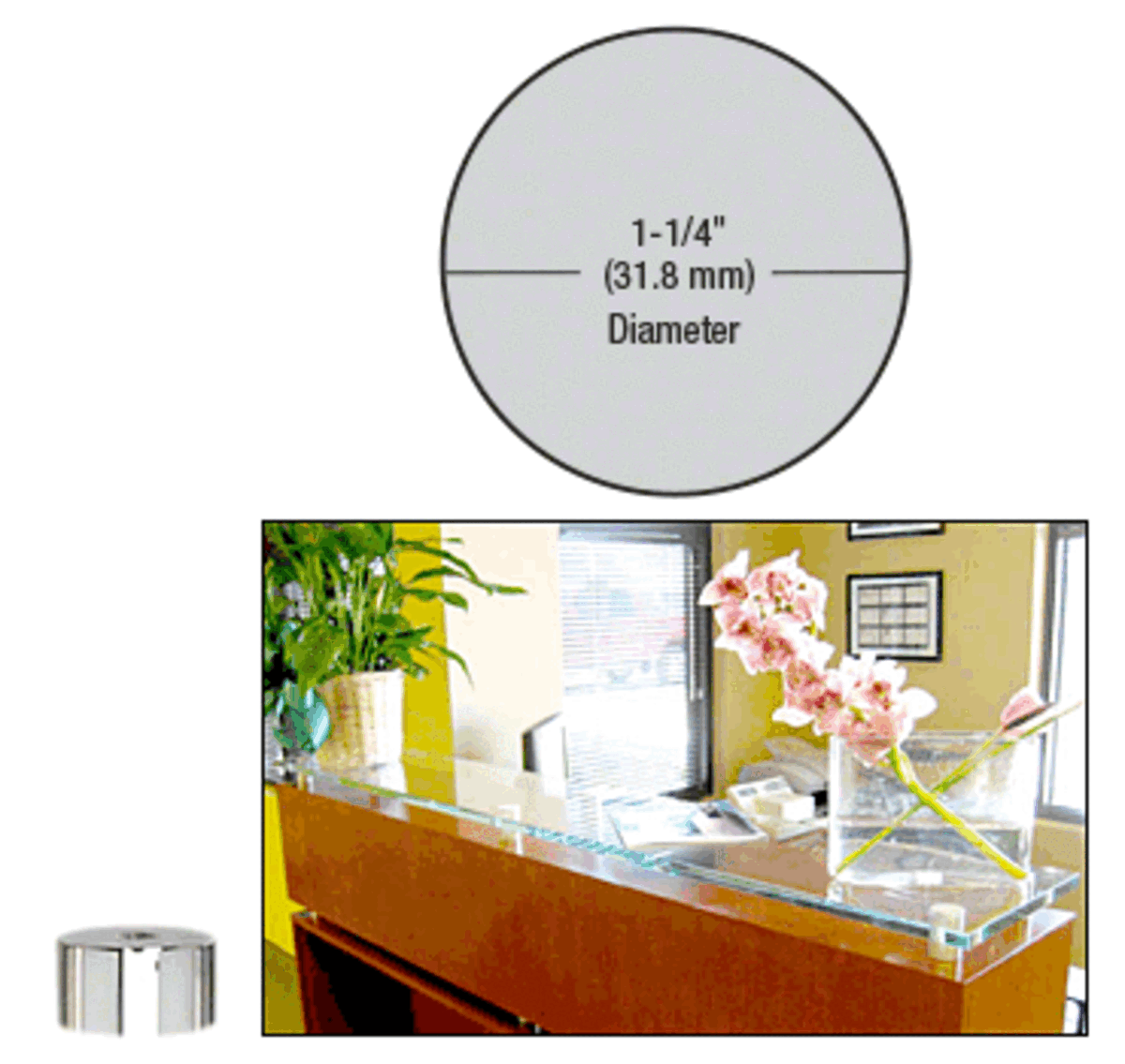

316 Polished Stainless 1-1/4" Diameter by 1/2" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• CRL Standoff Systems Typical Mounting Application
• Installation Instructions 06sc 10sc 12sc 13sc 16sc Rnd-ins.pdf
• Round Standoff Instructions
