CRL S0B11414BS Brushed Stainless 1.25" x 0.25" Standoff Base

CRL S0B11414BS Brushed Stainless 1.25" x 0.25" Standoff Base

C.R. Laurence S0B11414BS Brushed Stainless 1-1/4" Diameter by 1/4" Standoff Base offers a versatile solution for creating stunning visual displays in retail, commercial, and residential settings. With a sleek brushed stainless finish, this standoff base not only enhances aesthetics but also provides a durable mounting option for monolithic tempered glass and other materials. This standoff system is compatible with a variety of lengths, available from 1/4" to 6" (6 to 152.4 mm), and can be customized upon request. Each base features a 5/16"-18 threaded hole that runs the entire length, making installation seamless. The system’s flexibility allows for the incorporation of CRL Edge Grips and Swivel Fittings, providing maximum versatility for any design. For optimal performance, the minimum material thickness is 1/4" (6 mm) for Standard and Low Profile Caps, and 3/8" (10 mm) for Flush Mount Caps. It's essential to note that weight limitations depend on wall or substrate anchoring and material strengths, ensuring safety and reliability in your installations. Crafted from high-quality 316 stainless steel, the standoff base is resistant to corrosion, though periodic maintenance is advised to preserve its finish. Perfect for sophisticated design projects, the C.R. Laurence S0B11414BS standoff base elevates both style and functionality.

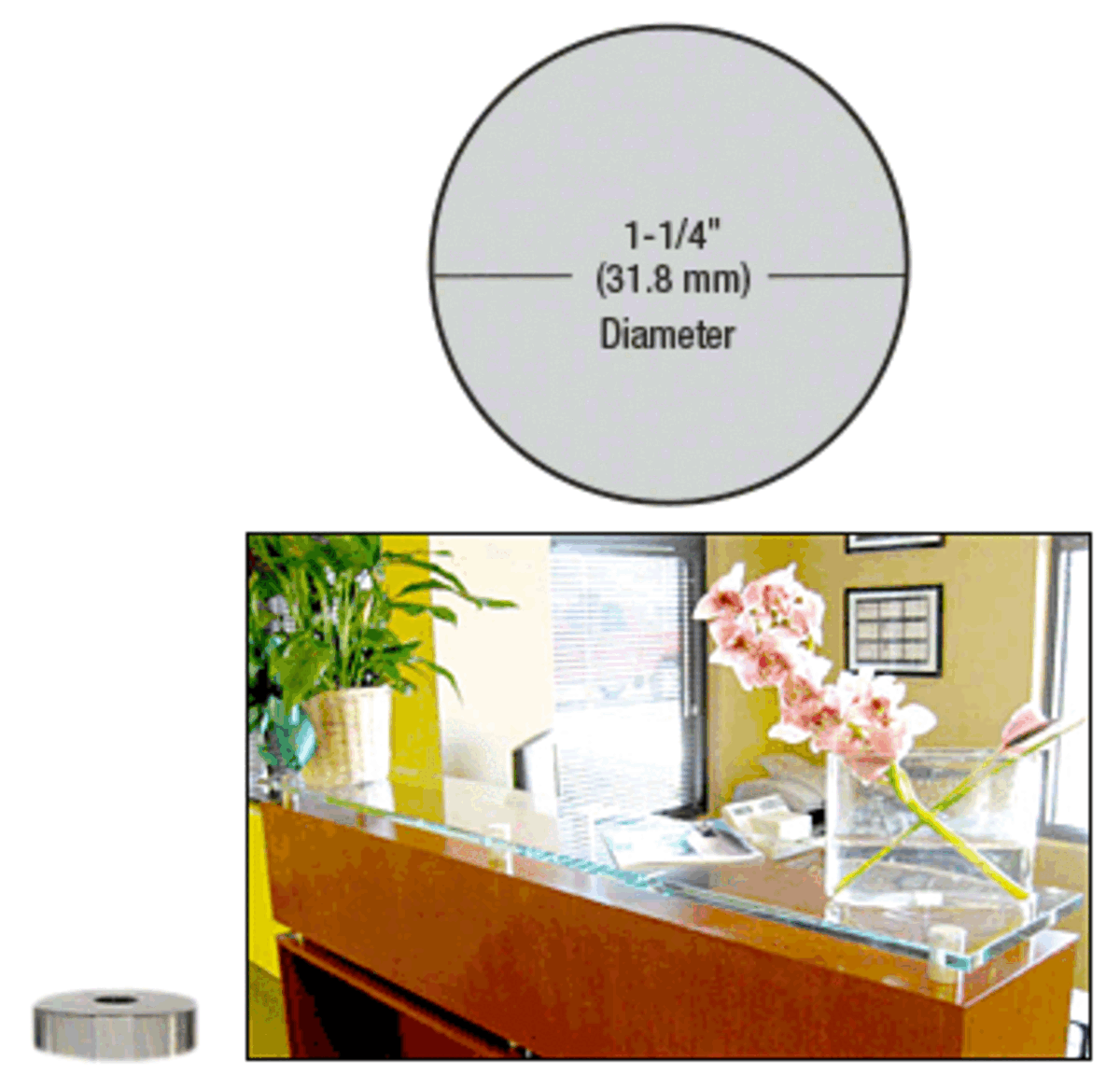

Brushed Stainless 1-1/4" Diameter by 1/4" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• CRL Standoff Systems Typical Mounting Application
• Round Standoff Instructions
