CRL S0B11414PS Polished Stainless 1.25" Dia x 0.25" Standoff Base

CRL S0B11414PS Polished Stainless 1.25" Dia x 0.25" Standoff Base

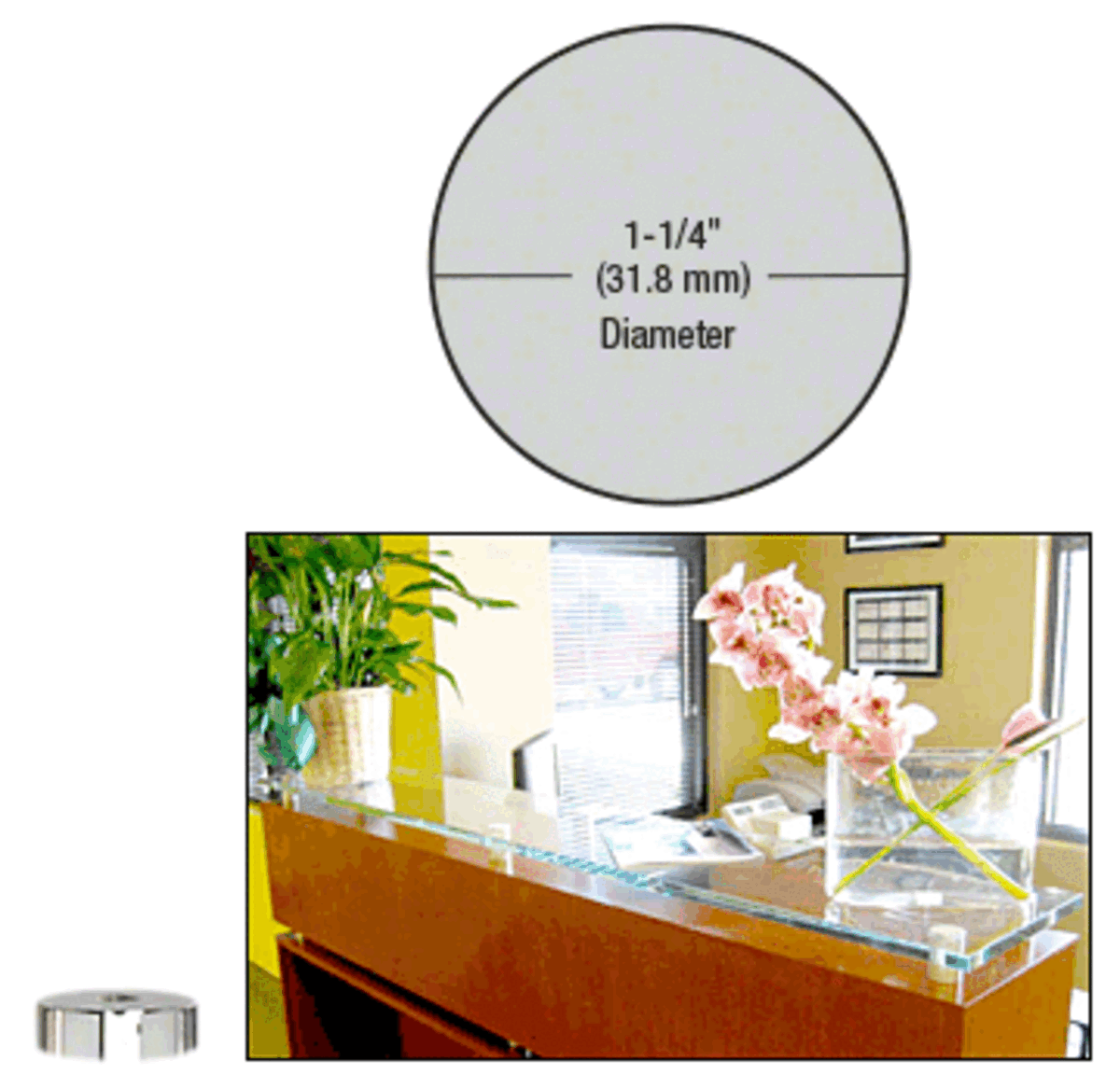

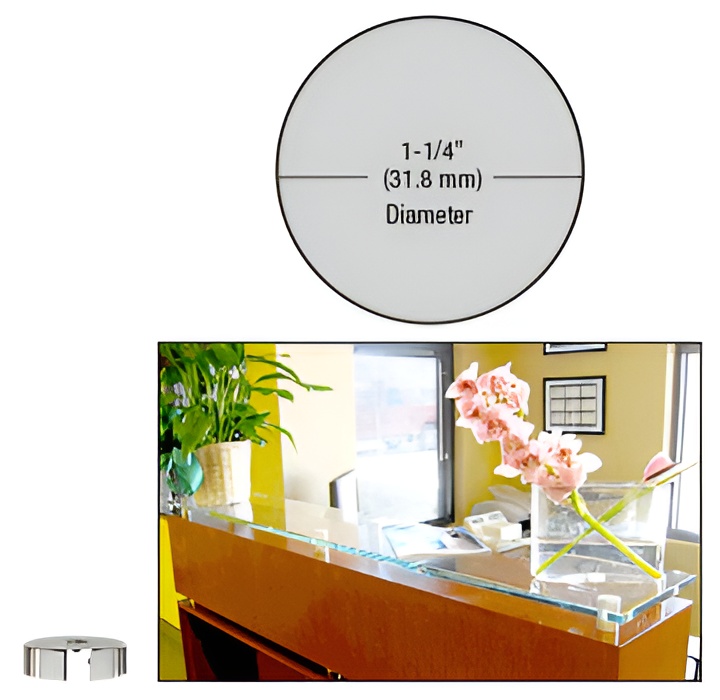

C.R. Laurence S0B11414PS Polished Stainless 1-1/4" Diameter by 1/4" Standoff Base offers a modern solution for showcasing glass, plastic, or wood panels in a variety of settings, including retail, commercial, and residential projects. This robust standoff system features a polished stainless steel finish that not only enhances aesthetic appeal but also ensures durability. Designed for versatility, the 1-1/4" (32 mm) diameter standoff can be used with monolithic tempered glass, providing a sleek, contemporary look when installed correctly. With multiple lengths available-from 1/4" to 6" (6 to 152.4 mm)-and the option for custom lengths and finishes, you can tailor the system to meet your specific design needs. Each base is drilled and tapped 5/16"-18, facilitating easy installation. For added flexibility, the standoff system can integrate with CRL Edge Grips and Swivel Fittings. Ordering matching cap assemblies separately allows for a complete installation tailored to your project demands. Ensure your material thickness is suitable, with minimum requirements of 1/4" (6 mm) for standard caps, and 3/8" (10 mm) for flush mount caps. With C.R. Laurence’s commitment to quality and customization, the S0B11414PS Standoff Base is an ideal choice for professionals seeking both functionality and design excellence.

Polished Stainless 1-1/4" Diameter by 1/4" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• CRL Standoff Systems Typical Mounting Application
• Round Standoff Instructions
