CRL S0B11414SC Satin Chrome 1.25" x 0.25" Standoff Base

CRL S0B11414SC Satin Chrome 1.25" x 0.25" Standoff Base

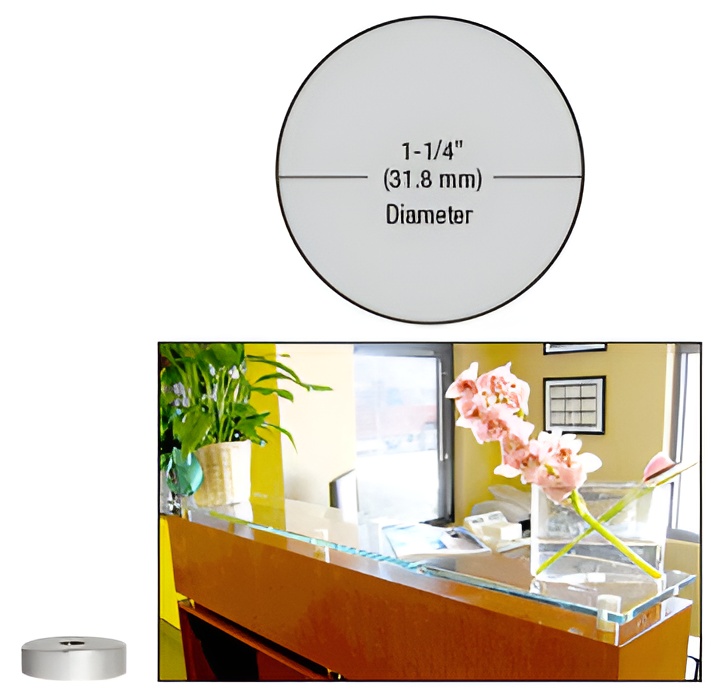

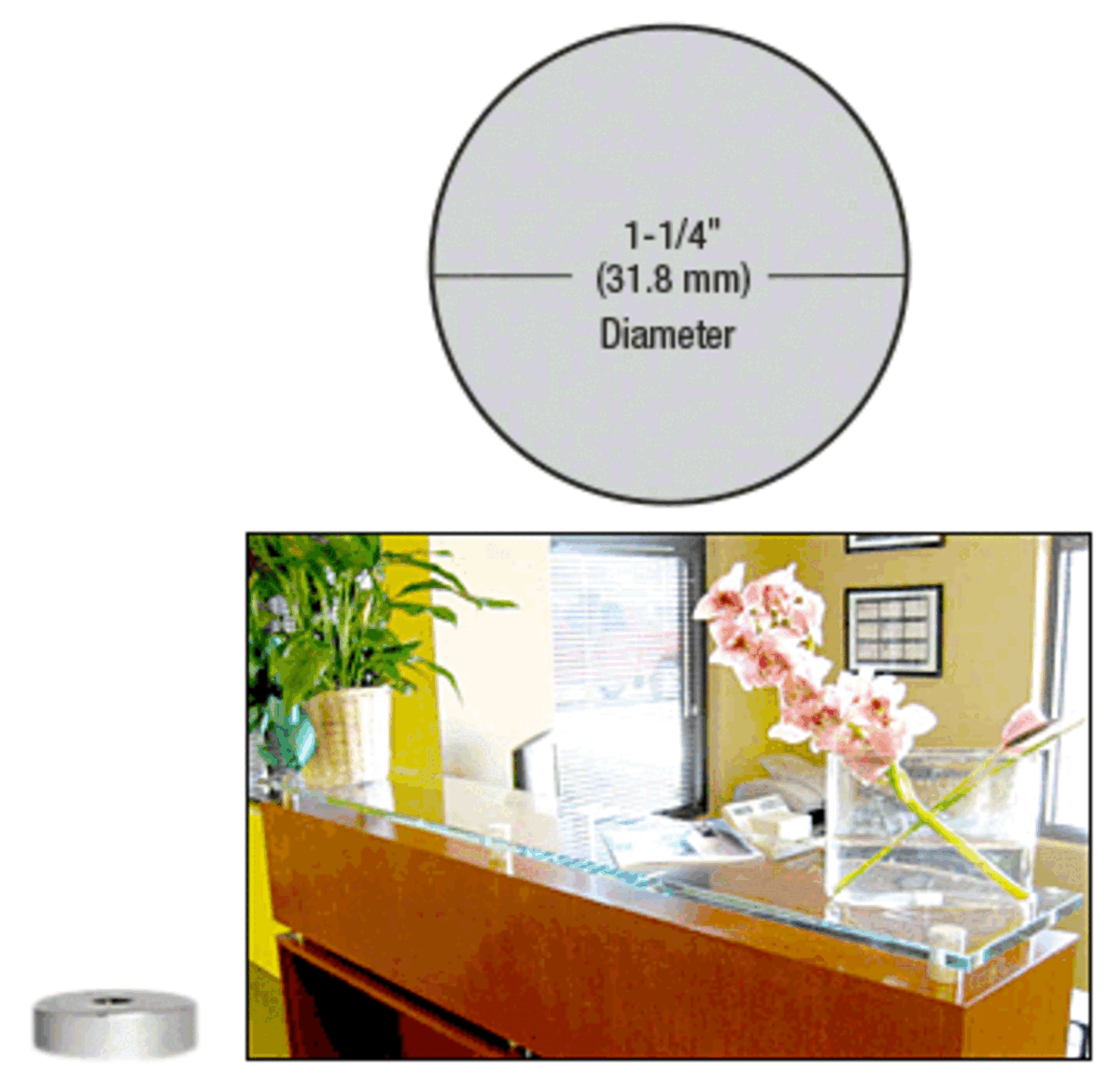

C.R. Laurence S0B11414SC Satin Chrome 1-1/4" Diameter by 1/4" Standoff Base offers a sophisticated solution for your architectural needs. Designed for versatility, this standoff system allows you to achieve a variety of contemporary looks across retail, commercial, or residential projects. The standoff base, with a diameter of 1-1/4" (32 mm), is compatible with monolithic tempered glass and can be easily installed by drilling 5/8" (16 mm) holes in glass, plastic, or wood panels. Available in several lengths ranging from 1/4" to 6" (6 to 152.4 mm), the S0B11414SC standoff base can be customized to fit your specific project requirements, with additional custom lengths and finishes available upon request. Each base is drilled and tapped 5/16"-18 through the complete length, ensuring robust installation. The standoff system is complemented by matching cap assemblies, which must be ordered separately, to enhance visual appeal. With a choice of six popular decorator finishes, including a sleek satin chrome, this system allows for seamless integration into various design aesthetics. Please note the minimum material thickness requirements and weight limitations based on anchoring and material strengths. For expert guidance, the CRL Technical Sales Department is readily available to assist with installation and design.

Satin Chrome 1-1/4" Diameter by 1/4" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Resources

• CRL Standoff Systems Typical Mounting Application
• Round Standoff Instructions
