CRL S0B1141BR Brass 1.25" Dia x 1" Standoff BaseC.R. Laurence S0B1141BR Brass 1-1/4" Diameter by 1" Standoff Base offers a versatile solution for creating stunning architectural applications in retail, commercial, and residential settings. This standoff base, designed with a 1-1/4" (32 mm) diameter, allows for the easy installation of monolithic tempered glass, plastic, or wood panels. By simply drilling 5/8" (16 mm) holes and polishing the edges, you can achieve a modern aesthetic that enhances any space. Available in several lengths ranging from 1/4" to 6" (6 to 152.4 mm), this standoff base is also customizable, with options for different lengths and finishes upon request. The polished brass finish not only adds a touch of elegance but is also part of a flexible system that accommodates various design needs, including the incorporation of CRL Edge Grips and Swivel Fittings. The 1-1/4" Standoff System is equipped with a drilled and tapped 5/16"-18 hole throughout its length, facilitating straightforward installation. However, it's essential to note that the minimum material thickness required is 1/4" (6 mm) for standard caps and 3/8" (10 mm) for flush mount caps. With a full range of mounting accessories available, you can tailor your installation to suit specific project requirements.

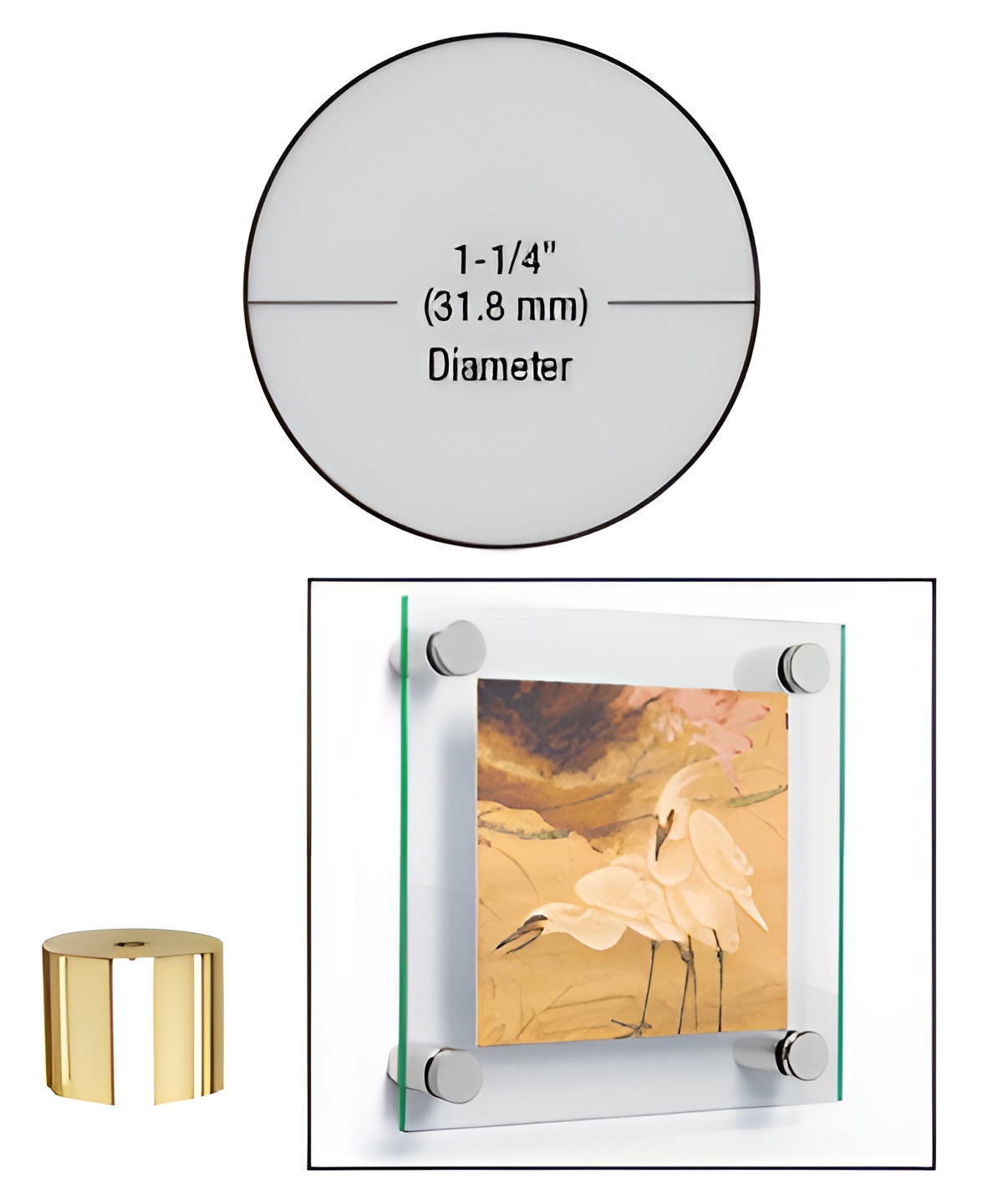

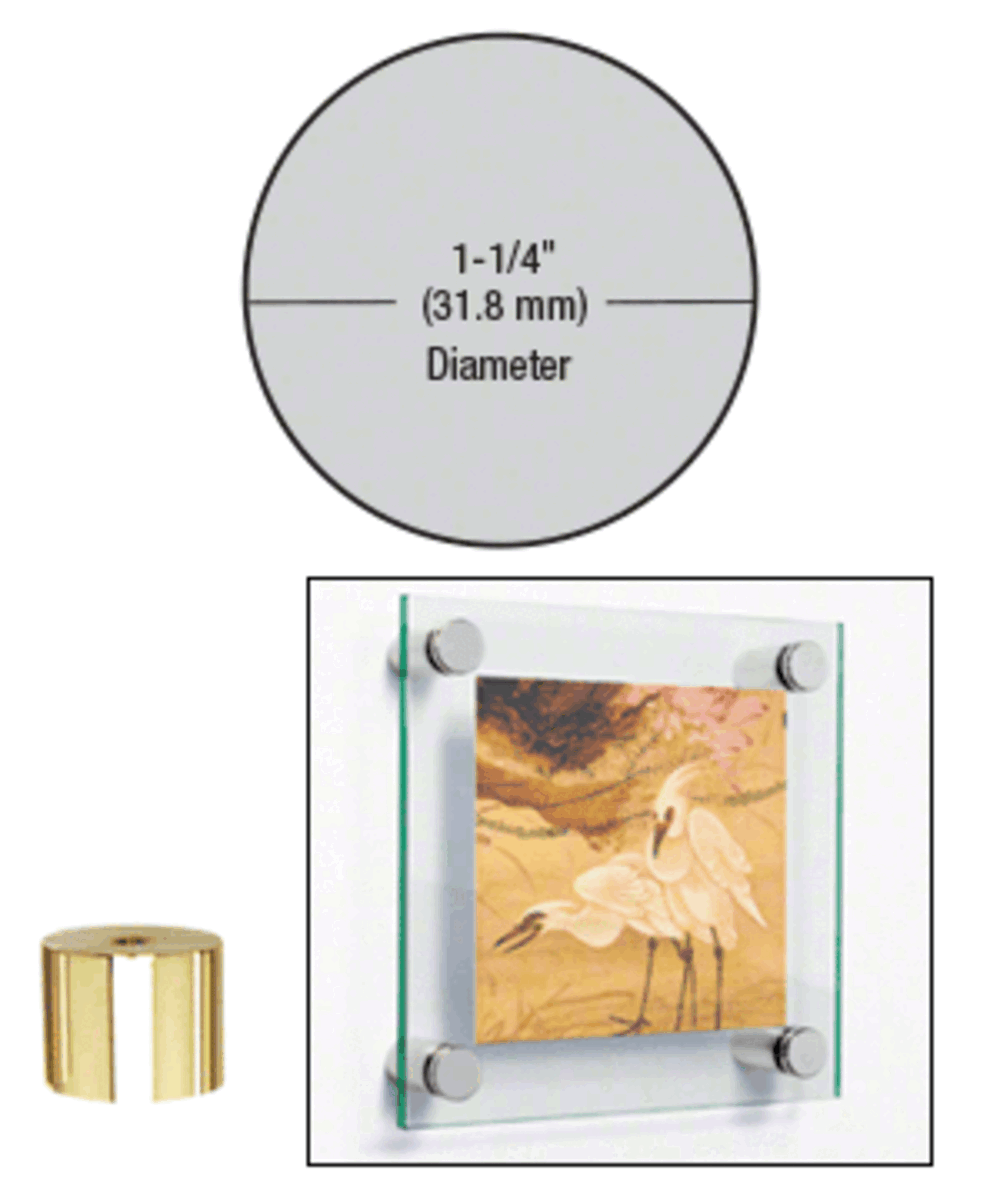

Brass 1-1/4" Diameter by 1" Standoff Base
- Available in Several Lengths
- Custom Lengths and Finishes Available
- Six Popular Decorator Finishes
- Use Monolithic Tempered Glass
With
CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.
Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL
Edge Grips and
Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm).
Matching Cap Assemblies must be ordered separately.
The CRL Standoff System incorporates a complete range of
Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.
NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4
Finish/ Color:: Polished Brass
Length: 1
Material: Brass
Shipping Limitations: None
