CRL S0B1141CH Chrome 1.25" Diameter x 1" Standoff Base

CRL S0B1141CH Chrome 1.25" Diameter x 1" Standoff Base

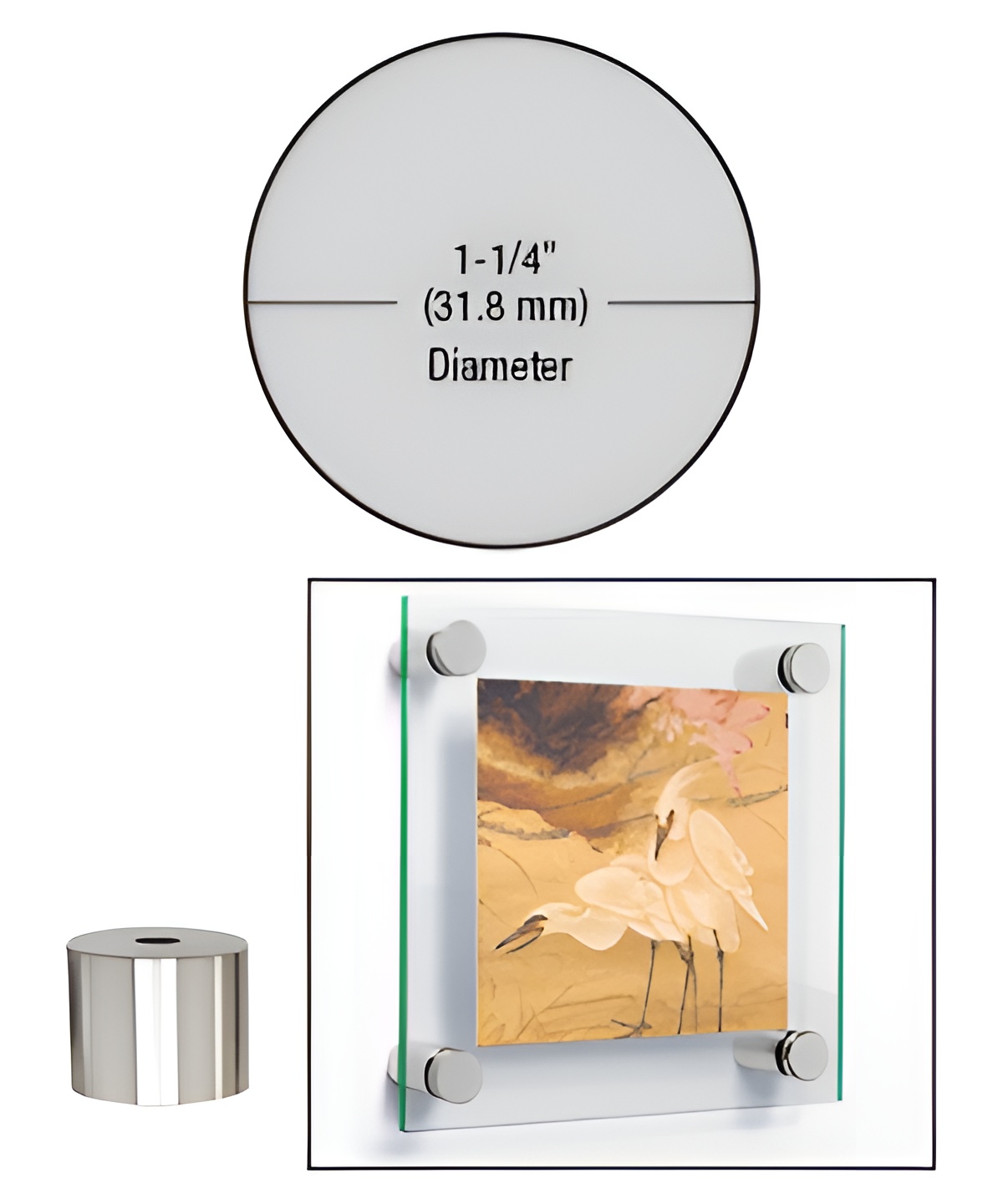

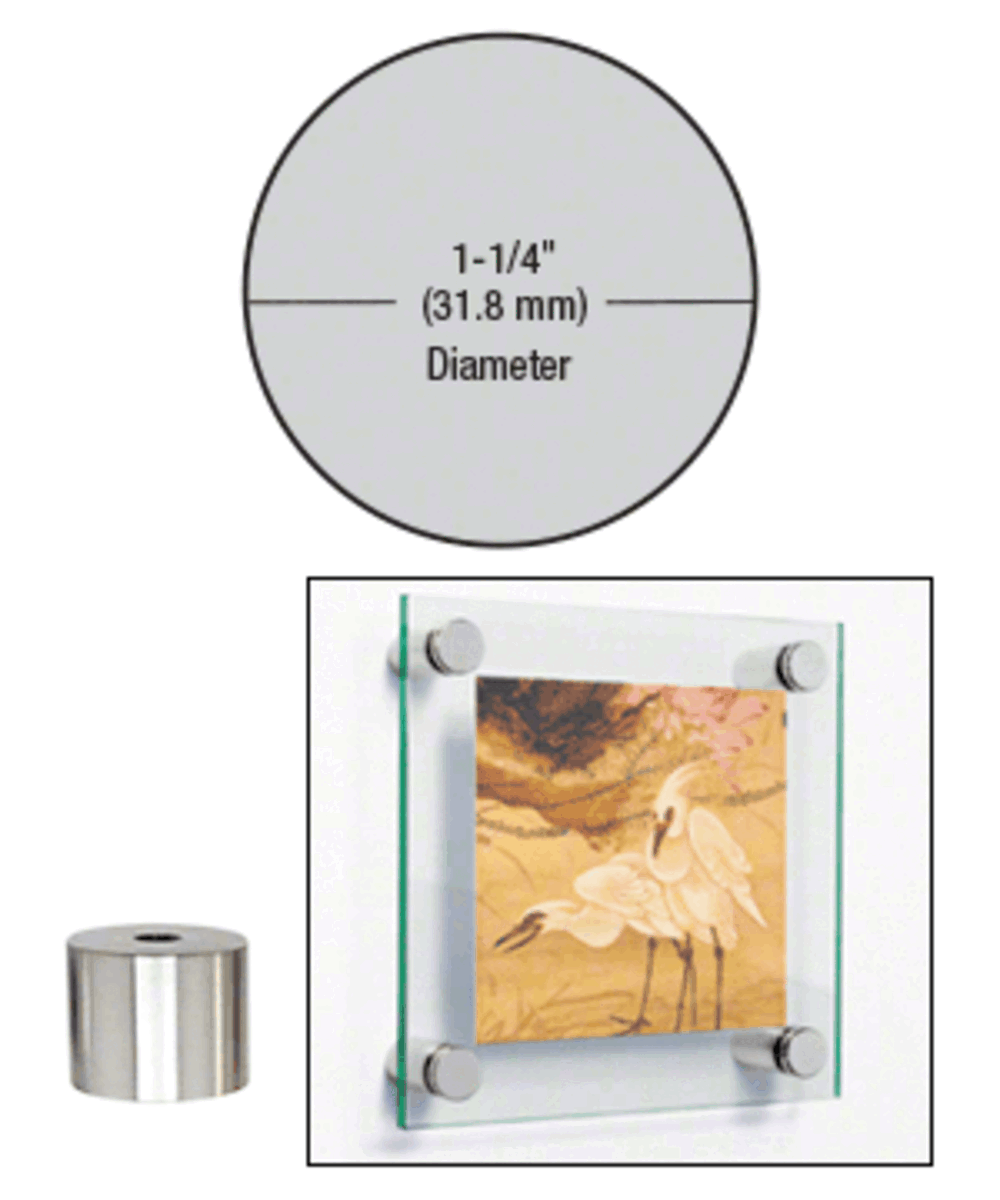

C.R. Laurence S0B1141CH Chrome 1-1/4" Diameter by 1" Standoff Base offers a versatile solution for enhancing modern designs in retail, commercial, or residential projects. This standoff system features a 1-1/4" (32 mm) diameter, allowing for a striking display of monolithic tempered glass, plastic, or wood panels. The base is pre-drilled and tapped with a 5/16"-18 thread, ensuring a secure fit while maintaining a sleek appearance. Available in several lengths from 1/4" to 6" (6 to 152.4 mm), the S0B1141CH can be customized further with various finishes and lengths upon request. This adaptability allows you to achieve a unique look tailored to your specific project needs. Designed with high-quality brass and finished in polished chrome, this standoff base not only looks sophisticated but also offers durability. For maximum versatility, the standoff system can be paired with CRL Edge Grips and Swivel Fittings. It’s important to note that the minimum material thickness required is 1/4" (6 mm) for standard caps and 3/8" (10 mm) for flush mount options. With a complete range of mounting accessories available, you can order exactly what you need, minimizing excess components and maximizing efficiency.

Chrome 1-1/4" Diameter by 1" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Resources

• CRL Standoff Systems Typical Mounting Application
• Round Standoff Instructions
