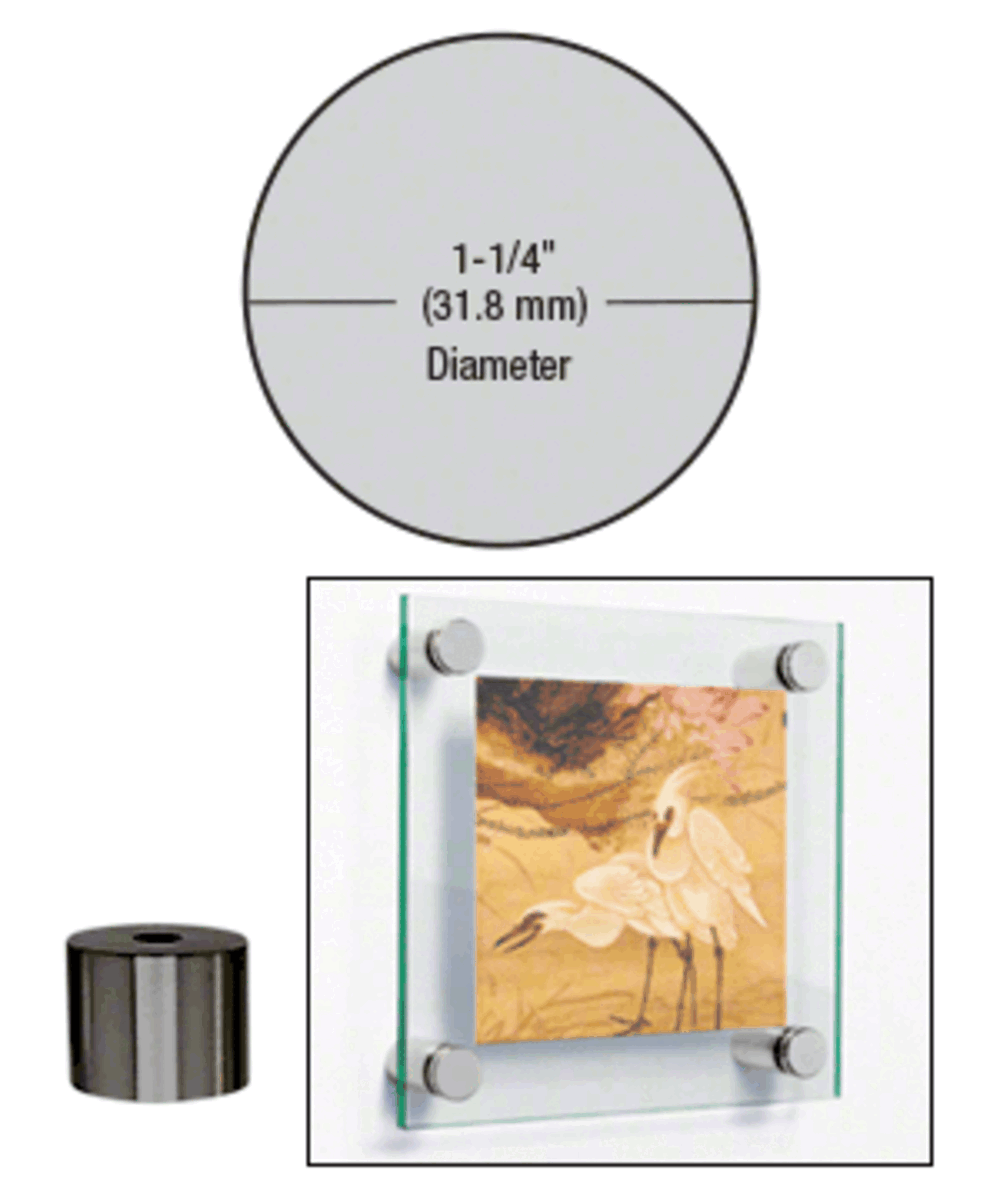

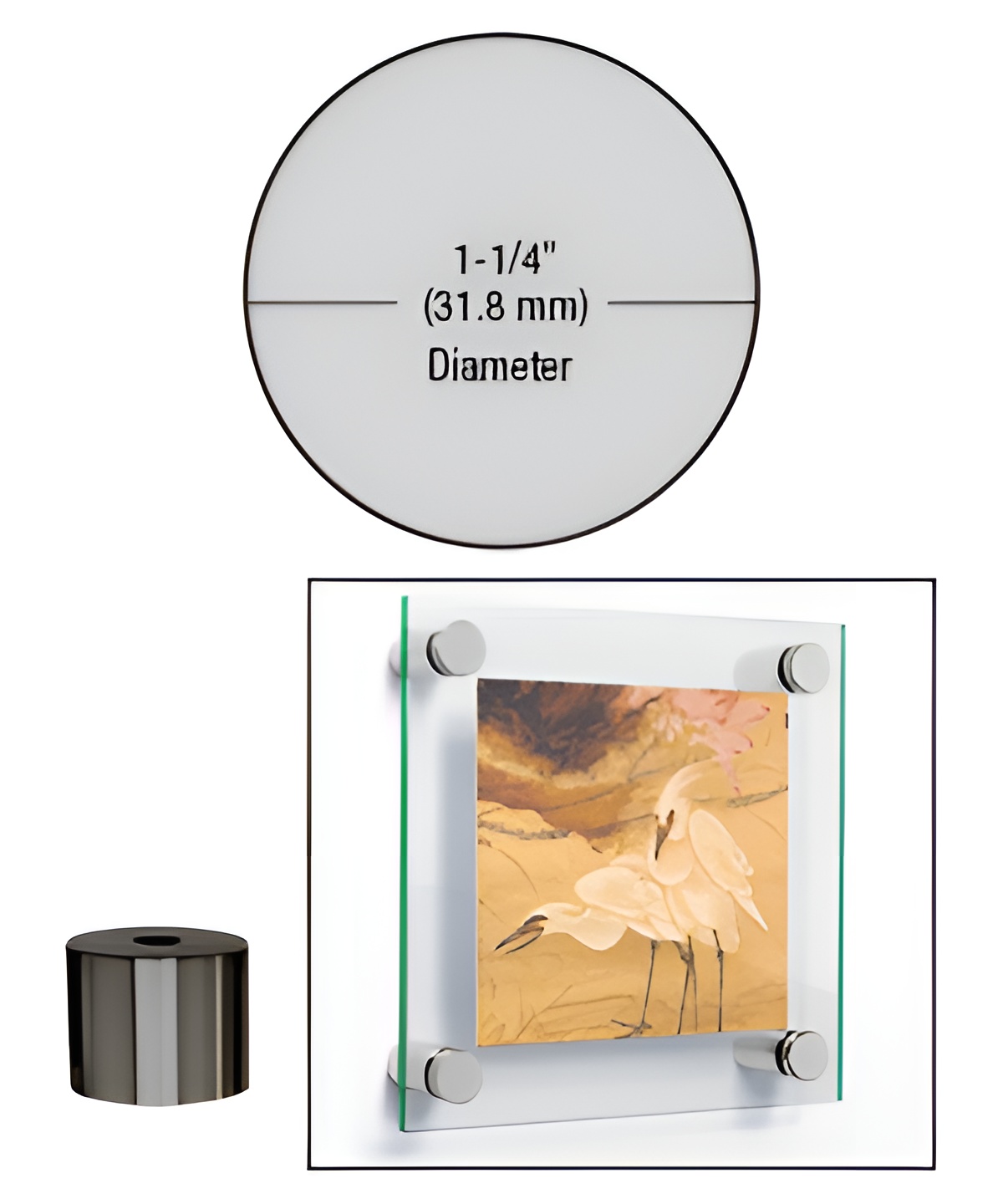

CRL S0B1141GM Gun Metal 1.25" Diameter x 1" Standoff Base

CRL S0B1141GM Gun Metal 1.25" Diameter x 1" Standoff Base

C.R. Laurence S0B1141GM Gun Metal 1-1/4" Diameter by 1" Standoff Base offers a sleek and sophisticated solution for modern glass installations. Crafted from durable brass, this standoff base features a 1-1/4" diameter and is available in multiple lengths, ranging from 1/4" to 6". The gun metal finish provides an elegant touch that complements a variety of design aesthetics, making it ideal for retail, commercial, or residential projects. Designed for versatility, the standoff system allows for easy installation by simply drilling 5/8" holes in glass, plastic, or wood panels. With the option of custom lengths and finishes available upon request, you can achieve a tailored look that meets your specific project requirements. Each base is drilled and tapped 5/16"-18 through its entire length, ensuring secure and reliable mounting. To enhance functionality, the CRL Standoff System can be paired with matching cap assemblies, edge grips, and swivel fittings, providing a comprehensive solution for any design. It’s crucial to note that the minimum material thickness for standard and low-profile caps is 1/4", while flush mount caps require a thickness of 3/8". For installation tips or design assistance, the CRL Technical Sales Department is ready to assist, ensuring your project comes together seamlessly.

Gun Metal 1-1/4" Diameter by 1" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Resources

• CRL Standoff Systems Typical Mounting Application
• Round Standoff Instructions
