CRL S0B1141MBL Matte Black 1.25" x 1" Standoff Base

CRL S0B1141MBL Matte Black 1.25" x 1" Standoff Base

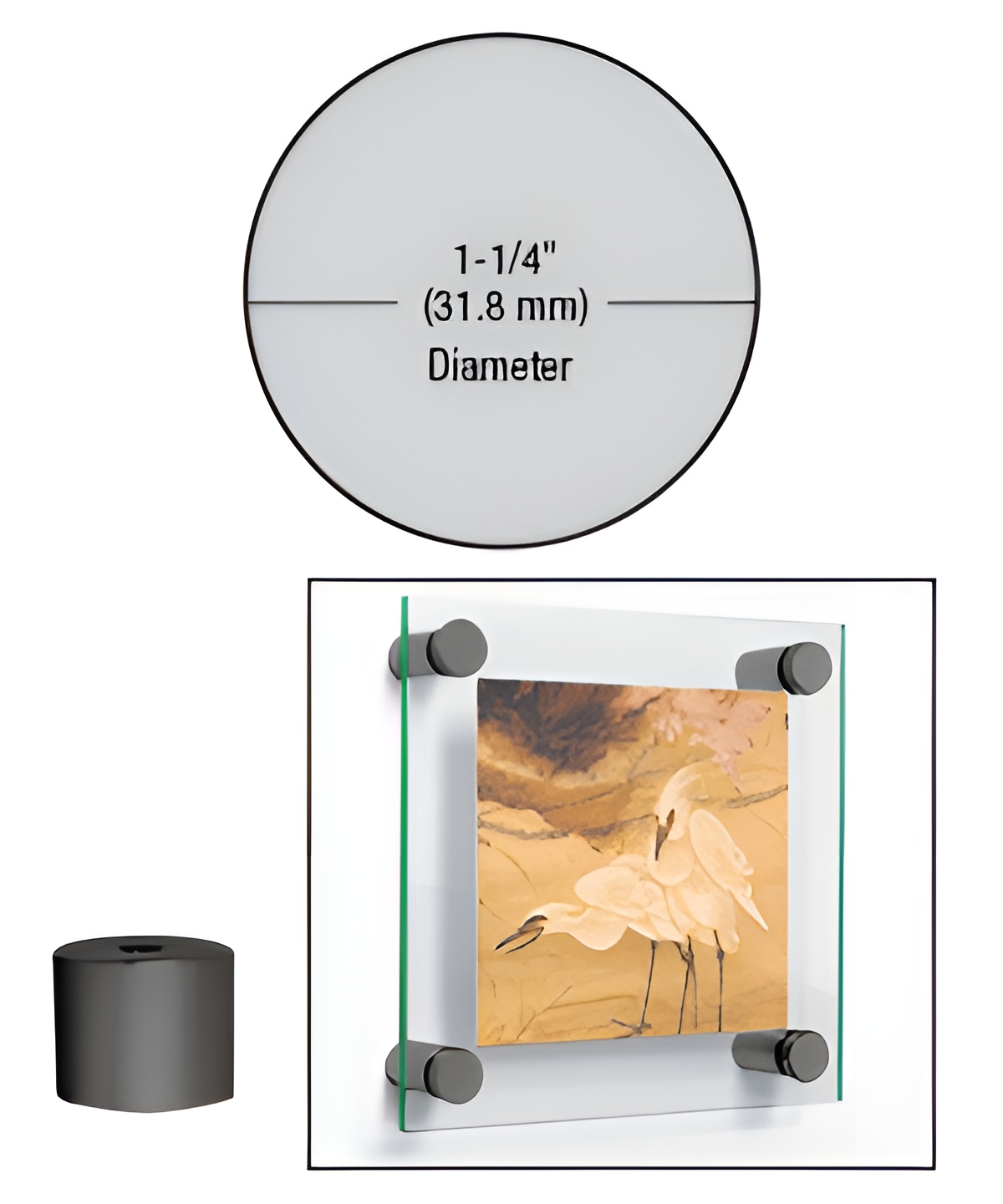

C.R. Laurence S0B1141MBL Matte Black 1-1/4" Diameter by 1" Standoff Base offers an innovative solution for creating stunning displays in retail, commercial, or residential settings. This versatile standoff system features a 1-1/4" (32 mm) diameter design, drilled and tapped 5/16"-18 through its entire length, enabling seamless installation. With a minimum material thickness requirement of 1/4" (6 mm) for standard caps and 3/8" (10 mm) for flush mount caps, this product ensures a secure and reliable fit. Available in eight distinct lengths, ranging from 1/4" to 6" (6 to 152.4 mm), the S0B1141MBL is customizable, with additional lengths and finishes available upon request. The matte black finish adds a contemporary touch, while the ability to pair it with CRL Edge Grips and Swivel Fittings expands design possibilities. This standoff base is designed for use with monolithic tempered glass, plastic, or wood panels, allowing for a modern aesthetic by simply drilling 5/8" (16 mm) holes and finishing the edges. CRL's comprehensive range of mounting accessories ensures you can order exactly what you need, minimizing waste and maximizing efficiency. For any installation inquiries or design assistance, the CRL Technical Sales Department is readily available to help.

Matte Black 1-1/4" Diameter by 1" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Resources

• CRL Standoff Systems Typical Mounting Application
• Round Standoff Instructions
