CRL S0B1141SC Satin Chrome 1.25" Diameter x 1" Standoff Base

CRL S0B1141SC Satin Chrome 1.25" Diameter x 1" Standoff Base

C.R. Laurence S0B1141SC Satin Chrome 1-1/4" Diameter by 1" Standoff Base offers a versatile solution for creating stunning displays in retail, commercial, or residential settings. This standoff base is engineered for use with monolithic tempered glass, allowing for a sleek, modern aesthetic that can elevate any space. With a diameter of 1-1/4" (32 mm), each standoff is designed to be drilled and tapped 5/16"-18 through its entire length, ensuring a secure installation. Available in various lengths from 1/4" to 6" (6 to 152.4 mm), this system can be customized to fit your project’s specific requirements. Additionally, CRL provides the option for custom lengths and finishes, accommodating unique design preferences. The S0B1141SC is offered in six popular decorator finishes, including Satin Chrome, allowing it to seamlessly blend with any decor. This high-tech design not only emphasizes visual appeal but also maximizes functionality when paired with CRL Edge Grips and Swivel Fittings. For installation, a minimum material thickness of 1/4" (6 mm) is recommended for standard and low-profile caps, while a thickness of 3/8" (10 mm) is required for flush mount caps. Ensure your projects stand out with the reliable quality of C.R. Laurence's Standoff System.

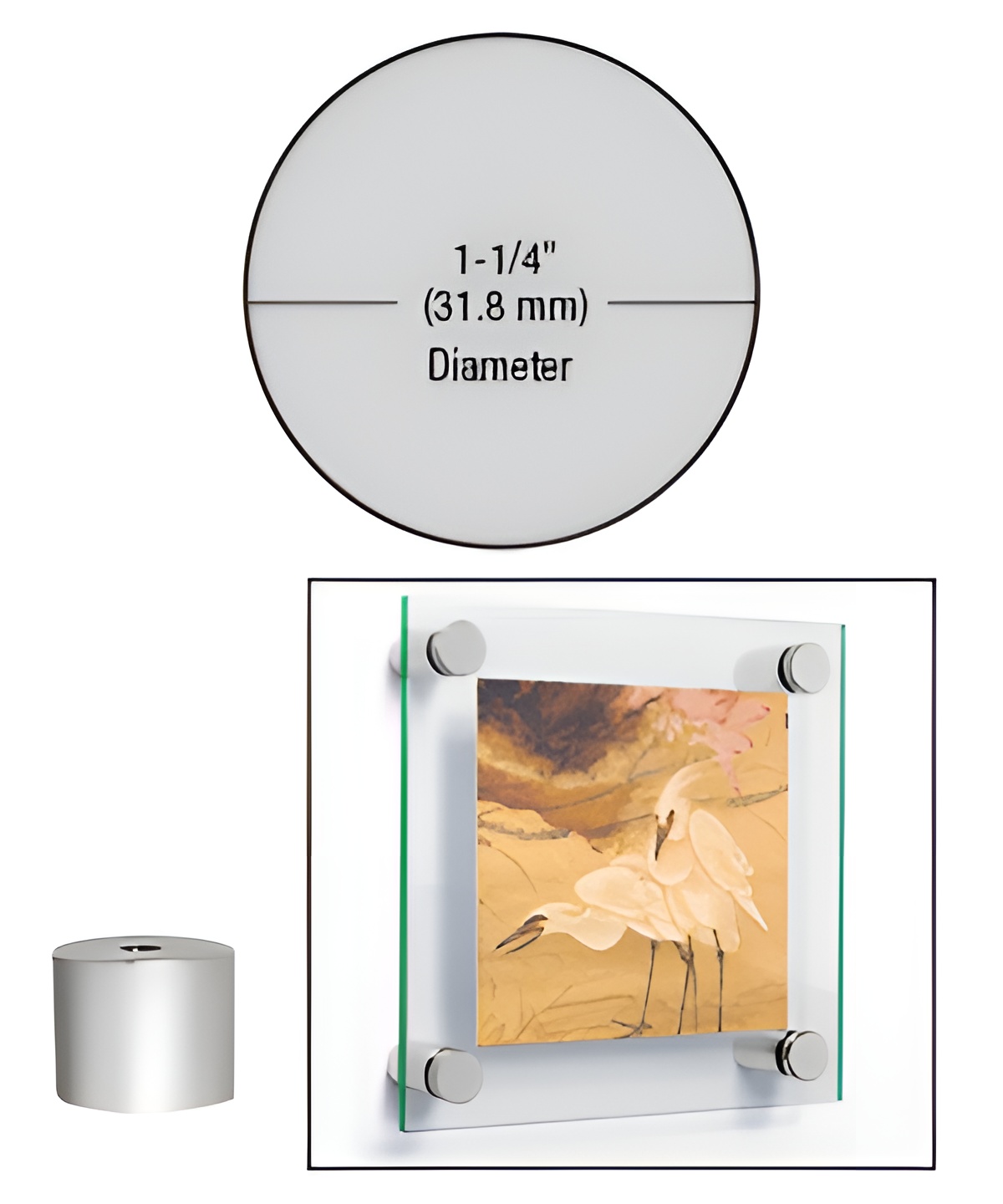

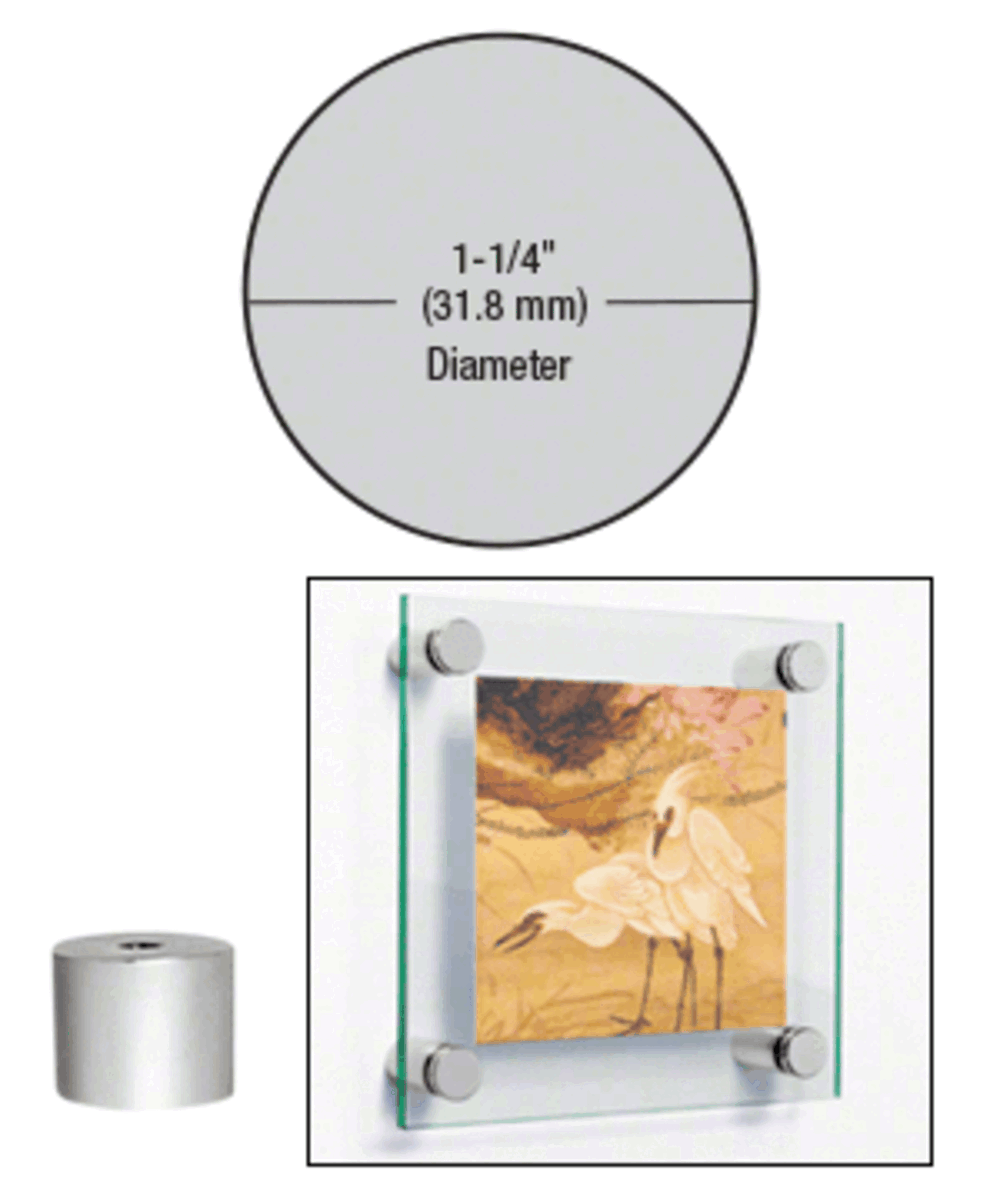

Satin Chrome 1-1/4" Diameter by 1" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of Bases and Caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Resources

• CRL Standoff Systems Typical Mounting Application
• Round Standoff Instructions
