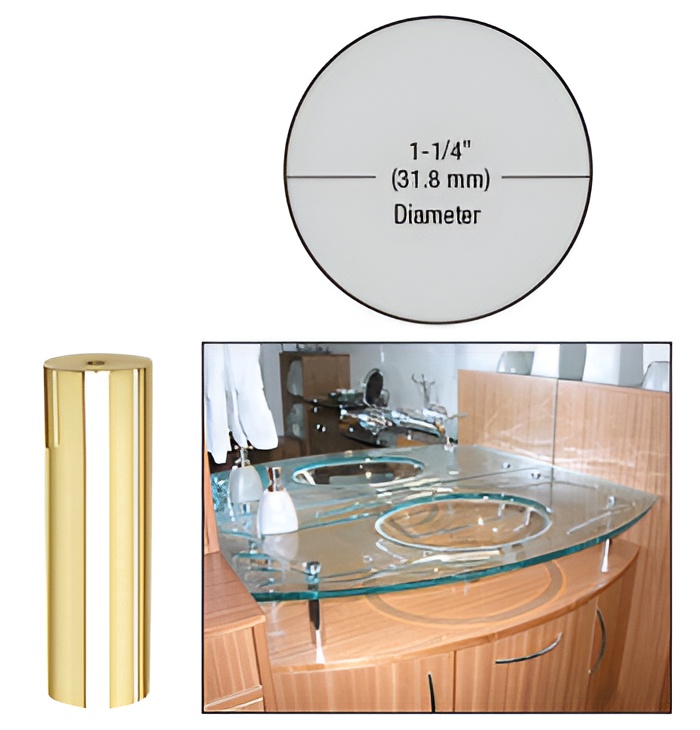

CRL S0B1144BR Brass 1.25" Diameter x 4" Standoff Base

C.R. Laurence S0B1144BR Brass 1-1/4" Diameter by 4" Standoff Base is an essential component for creating sophisticated glass installations in retail, commercial, or residential projects. With a sturdy brass construction and a polished finish, this standoff base seamlessly combines elegance with durability, ensuring a contemporary aesthetic. Available in multiple lengths, including custom options, the 1-1/4" (32 mm) diameter standoff allows for versatile design possibilities. Simply drill 5/8" (16 mm) holes in glass, plastic, or wood panels to achieve a sleek appearance that enhances your space. Each base is drilled and tapped 5/16"-18 through its entire length, providing reliable support for monolithic tempered glass applications. The CRL Standoff System also includes a variety of matching caps and accessories for maximum flexibility. Notably, the system can integrate with CRL Edge Grips and Swivel Fittings to further expand design choices. It is important to note that the minimum material thickness for use with this standoff base is 1/4" (6 mm) for Standard and Low Profile Caps and 3/8" (10 mm) for Flush Mount Caps. For installation guidance or to discuss your custom needs, the Technical Sales Department is readily available to assist. Transform your glass installations with the C.R. Laurence S0B1144BR Standoff Base, where form meets function.

Brass 1-1/4" Diameter by 4" Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of bases and caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.


Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System incorporates a complete range of Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using our Standoffs, contact the our Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.


Product Warning:

Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.

Brass Finish Advisory:

Resources

• Brass Finish Disclaimer
• CRL Standoff Systems Typical Mounting Application
• Round Standoff Instructions
