CRL S0B1146BR Brass 1.25" Diameter x 6" Standoff BaseC.R. Laurence S0B1146BR Brass 1-1/4" Diameter by 6" Standoff Base offers an innovative solution for creating sleek and contemporary displays in various settings, including retail, commercial, and residential projects. With a diameter of 1-1/4" (32 mm) and a height of 6", this standoff base allows for the secure mounting of monolithic tempered glass, plastic, or wood panels by simply drilling 5/8" (16 mm) holes. Crafted from durable brass, the S0B1146BR is available in several lengths and a selection of six popular decorator finishes, ensuring that you can achieve the desired aesthetic for your installation. Custom lengths and finishes can be requested through CRL's Technical Sales Department, providing flexibility to meet unique project requirements. Each base is drilled and tapped 5/16"-18 throughout its length, ensuring reliable performance. The standoff system can be paired with CRL Edge Grips and Swivel Fittings, enhancing versatility for diverse design applications. It's important to note that the minimum material thickness for use is 1/4" (6 mm) with standard caps and 3/8" (10 mm) with flush mount caps. For installation guidance or design assistance, CRL’s Technical Sales Department is readily available to help.

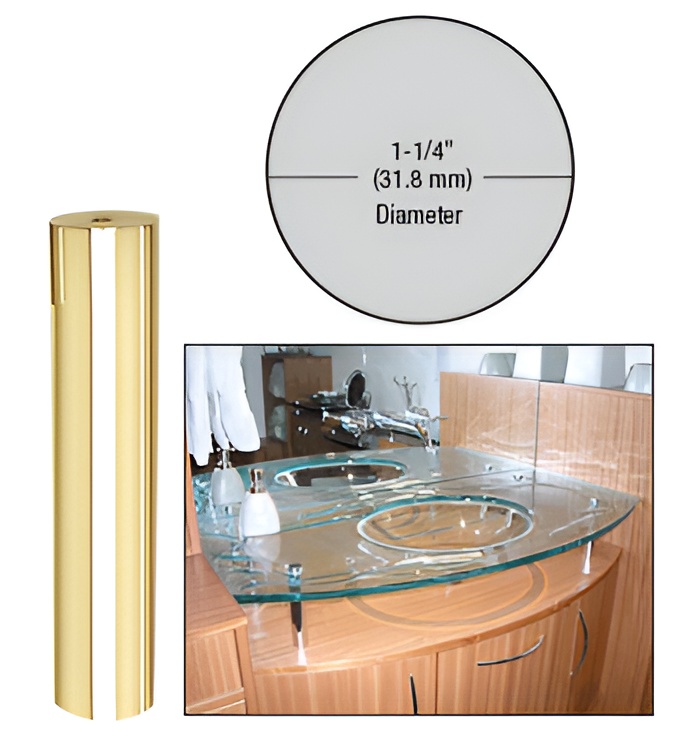

Brass 1-1/4" Diameter by 6" Standoff Base
- Available in Several Lengths
- Custom Lengths and Finishes Available
- Six Popular Decorator Finishes
- Use Monolithic Tempered Glass
With
CRL's 1-1/4" Diameter Standoff System you can create a combination of different looks with our 1-1/4" (32 mm) Standoff System. The variety of bases and caps allows you to design a series of retail, commercial or residential projects. By simply drilling 5/8" (16 mm) holes in glass, plastic or wood panels, and polishing or finishing the edges, a completely different and contemporary look can be achieved. Each stock size 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 thru the complete length. Custom lengths and finishes are available by requesting a quote from our Technical Sales Department.
Available in many distinctive and popular finishes, CRL's Standoffs are "high-tech" in both design and appearance. They are part of a uniquely flexible system which can also incorporate CRL
Edge Grips and
Swivel Fittings for maximum versatility. 1-1/4" (32 mm) Standoff Bases come in eight different lengths, from 1/4" to 6" (6 to 152.4 mm).
Matching Cap Assemblies must be ordered separately.
The CRL Standoff System incorporates a complete range of
Mounting Accessories that you can order in any quantity required to complete the job, with no unused "leftover" components. For installation techniques or design assistance using our Standoffs, contact the our Technical Sales Department.
NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter Standoff Bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4
Finish/ Color:: Polished Brass
Length: 6
Material: Brass
Shipping Limitations: None
