CRL S0GC01MBL Matte Black Ceiling Mount Glass Clamp - Sleeve Over

C.R. Laurence S0GC01MBL Matte Black Ceiling Mount "Sleeve Over" Glass Clamp is engineered to securely hold glass panels ranging from 5/16" to 1/2" (8 to 12 mm) thick, ensuring a robust installation without the need for special glass fabrication. This clamp mounts directly to the ceiling, providing a reliable mechanical fastener that effectively manages shear forces exerted on the glass panels. Constructed from solid brass, the matte black finish not only enhances aesthetics but also contributes to durability and corrosion resistance. The design allows for seamless installation, using nylon-tipped Allen set screws to secure the clamps in place, which also facilitates straightforward adjustments. Additionally, these clamps can maintain the position of glass panels while silicone sealant cures, effectively preventing water leakage and ensuring a strong bond. Included with the clamp are gaskets to provide a secure fit. Importantly, the S0GC01MBL is not intended to replace headers or support bars, making it essential to consult C.R. Laurence’s Frameless Shower Technical Sales Department for further guidance. This versatile clamp is suitable for both square cut and mitered glass panels, making it an ideal choice for various architectural and glazing applications.

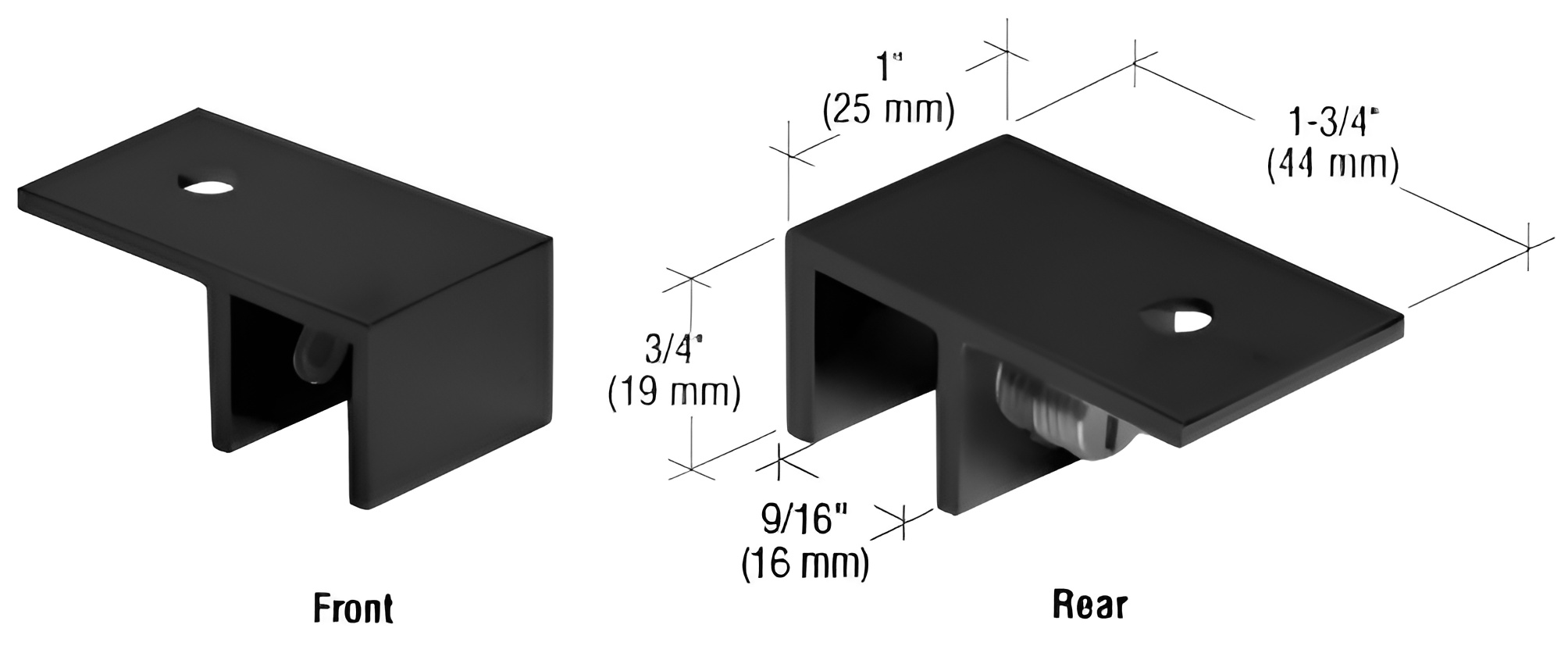

Matte Black Ceiling Mount "Sleeve Over" Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Mounts to Ceiling
• Use Monolithic Tempered Glass
• Solid Brass
• Assists With Shear Forces
• Holds Glass Panels in Position While Sealant Cures
