CRL S0GC135BN Brushed Nickel 135 Sleeve Over Glass Clamp

C.R. Laurence S0GC135BN Brushed Nickel 135 Degree "Sleeve Over" Glass Clamp offers a robust solution for securing glass panels at a 135-degree angle. Designed for use with monolithic tempered glass, this clamp accommodates glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm) without the need for special fabrication. Constructed from solid brass, the S0GC135BN not only provides excellent durability but also enhances the aesthetic appeal of your installation with its elegant brushed nickel finish. This clamp effectively assists with shear forces, ensuring that glass panels remain securely in position while silicone sealant cures. The nylon-tipped Allen set screws ensure a tight grip without damaging the glass. Included with the clamp are gaskets that contribute to a secure fit, and for added convenience, replacement screws are available through CRL P612. Please note that these clamps are not intended to replace headers or support bars, making them ideal for glass-to-glass applications on both square cut and mitered panels. Whether you're a building professional or a knowledgeable homeowner, the C.R. Laurence S0GC135BN provides both functionality and style in your architectural projects.

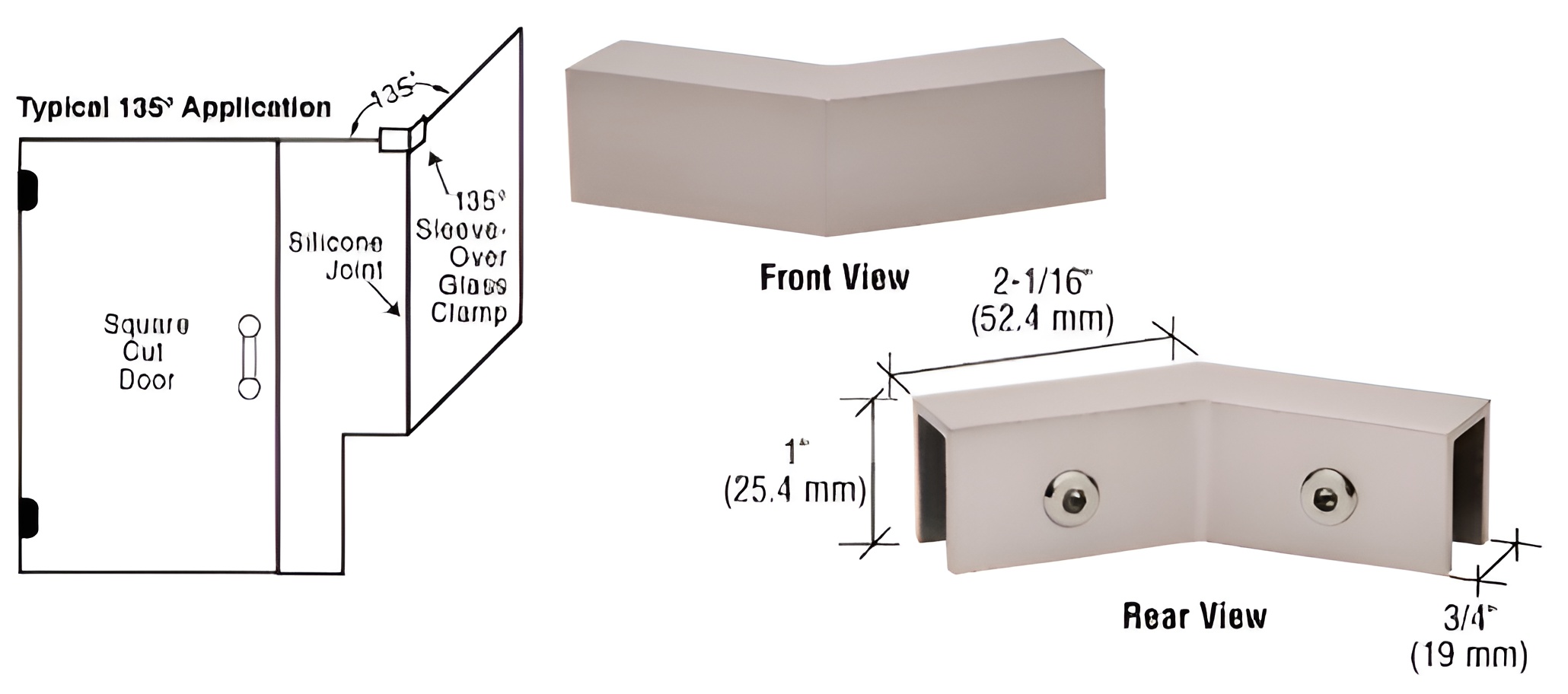

Brushed Nickel 135 Degree "Sleeve Over" Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Solid Brass
• Use Monolithic Tempered Glass
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
