C.R. Laurence S0GC135SB Satin Brass 135 Degree "Sleeve Over" Glass Clamp is expertly designed to provide robust support for your glass installations. Crafted from solid brass, this clamp accommodates glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), ensuring compatibility with a variety of tempered glass panels. The innovative "sleeve over" design allows for easy installation without the need for special glass fabrication, making it a practical choice for professionals and DIY enthusiasts alike. This clamp not only assists with shear forces acting on the glass but also holds panels securely in place while sealants cure, promoting lasting adhesion and water resistance. Secured with nylon-tipped Allen set screws, it offers a reliable grip without damaging the glass surface. Included gaskets enhance the fit, ensuring stability and performance. The satin brass finish adds a touch of elegance to any setting, although it is essential to note that brass may oxidize over time, leading to a distinctive patina. These clamps are suitable for both square cut and mitered glass panels, providing versatility in design. Please remember that they are not intended to replace headers or support bars. For additional specifications or inquiries, reach out to the CRL Frameless Shower Technical Sales Department.

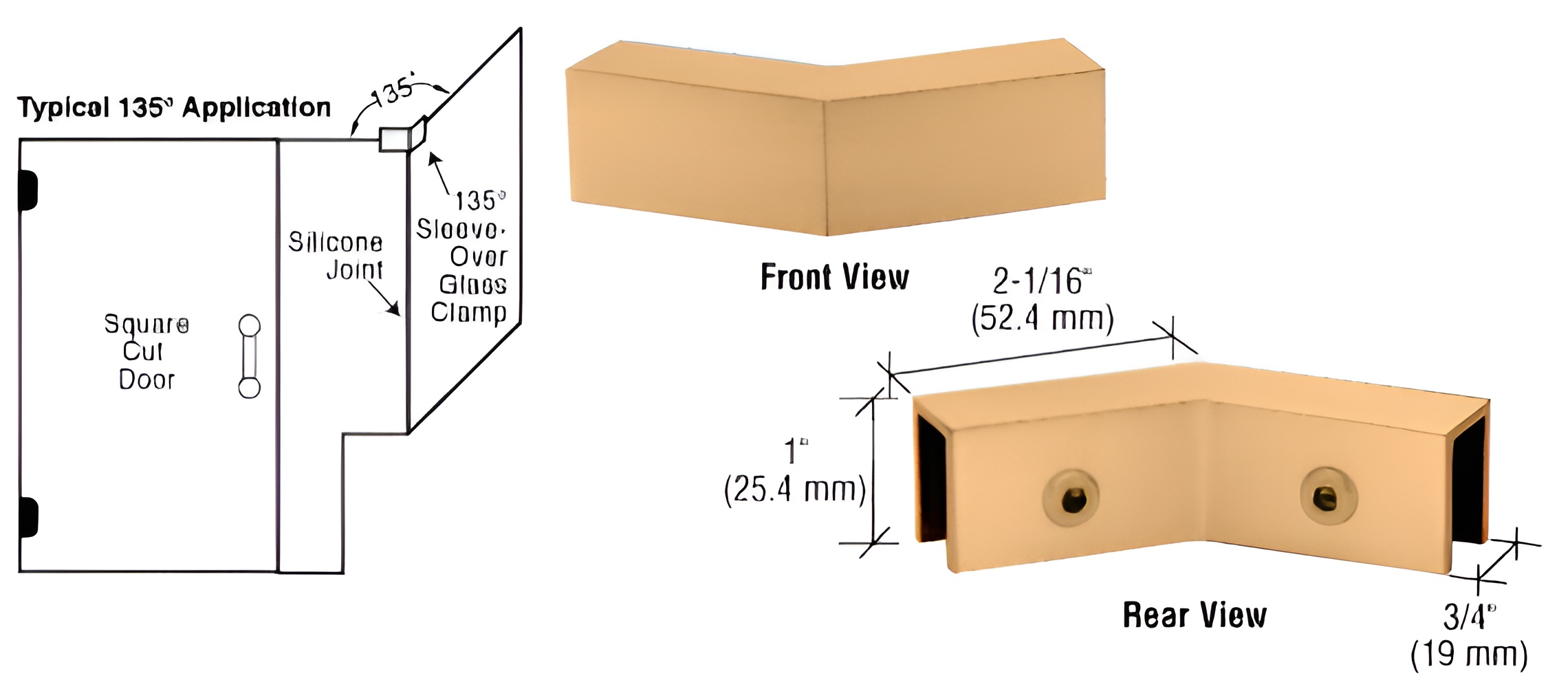

Satin Brass 135 Degree "Sleeve Over" Glass Clamp
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
P612** replacement screws
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Brass
Glass To Glass Angle: 135
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Material: Brass
Mounting Type: Glass To Glass
Shipping Limitations: None
