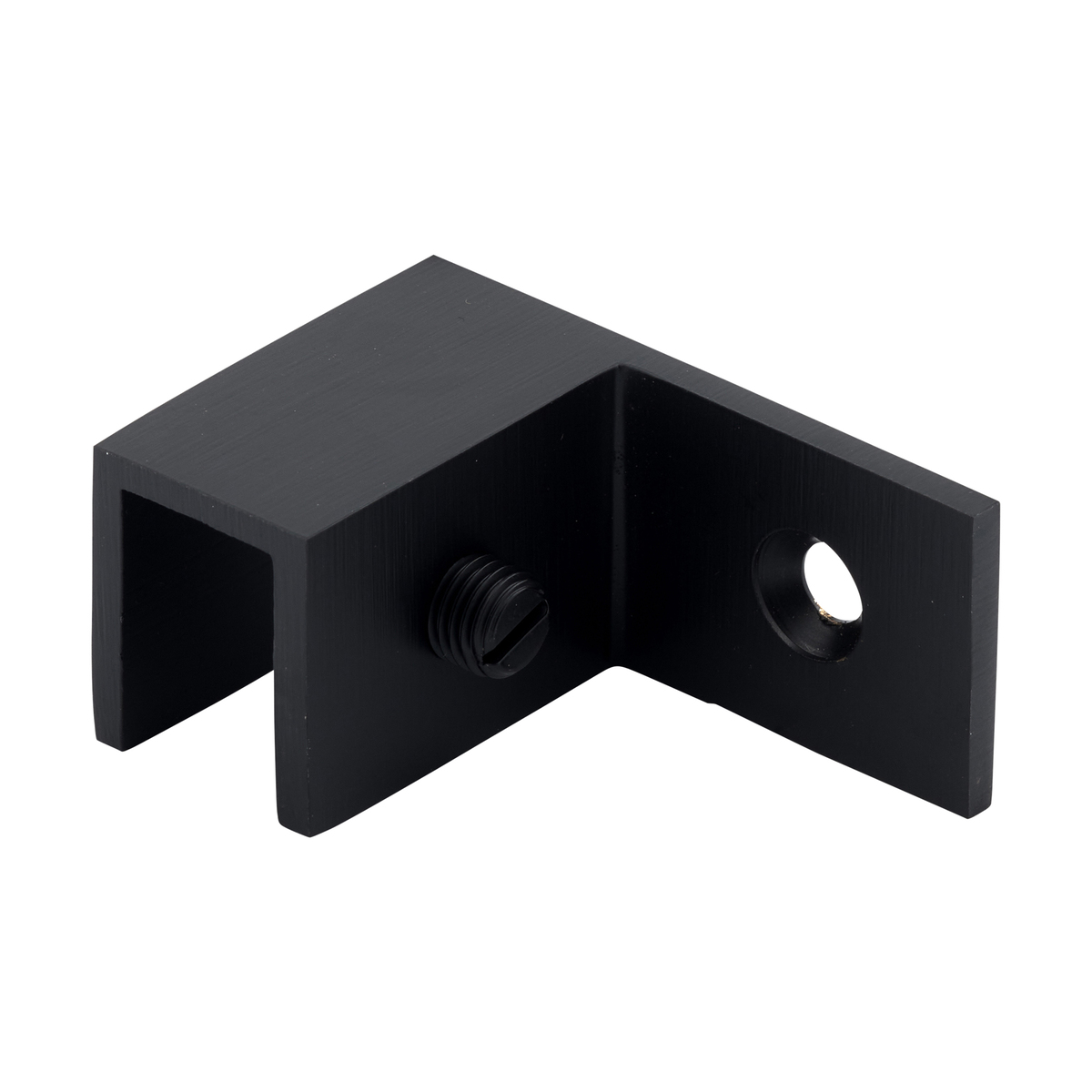

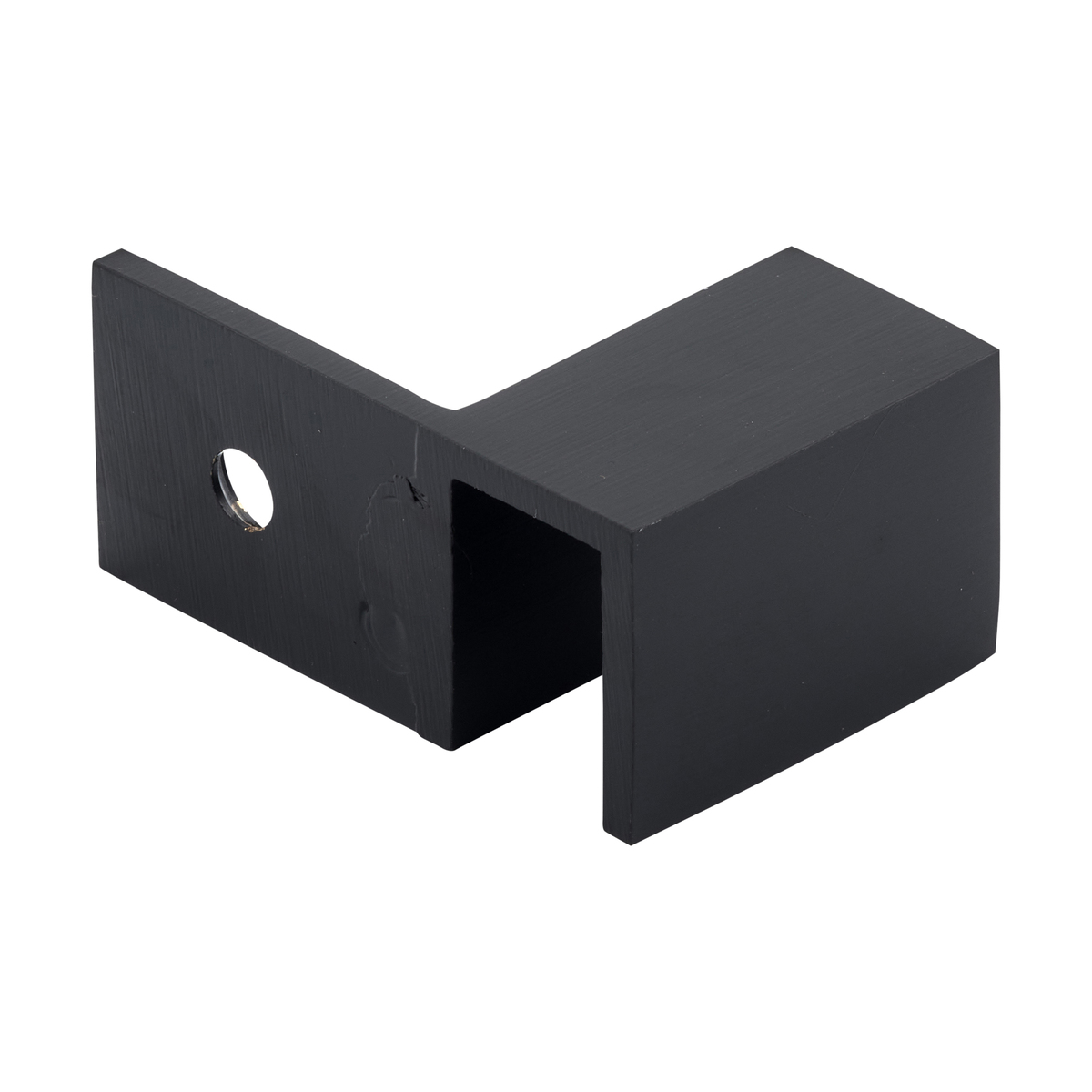

CRL S0GC37L0RB Oil Rubbed Bronze Left Hand Wall Mount Glass Clamp

C.R. Laurence S0GC37L0RB Oil Rubbed Bronze Left Hand "Sleeve Over" Wall Mount Glass Clamp is an essential component for securing glass panels in various architectural applications. Designed specifically for 5/16" to 1/2" (8 to 12 mm) thick monolithic tempered glass, this clamp showcases a robust construction using solid brass, ensuring durability and a sleek appearance. The clamp is engineered to effectively manage shear forces exerted on glass panels, providing a reliable mechanical fastening solution. Its innovative design allows for easy installation without the need for special glass fabrication, making it a convenient choice for professionals and skilled homeowners alike. The nylon-tipped Allen set screws securely fasten the glass, allowing the silicone sealant to cure effectively while keeping panels in position. This left-handed clamp, as viewed from outside the shower, is accompanied by gaskets for an optimal fit, ensuring a snug and secure installation. It's important to note that while these clamps are vital for maintaining the integrity of glass installations, they should not replace headers or support bars. For further inquiries, CRL Frameless Shower Technical Sales can provide additional guidance. With its elegant oil-rubbed bronze finish, the S0GC37L0RB clamp combines functionality with aesthetic appeal, making it an ideal choice for modern glass projects.

Oil Rubbed Bronze Left Hand "Sleeve Over" Wall Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Left-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
