CRL S0GC37LBBRZ Brushed Bronze Left Hand Wall Mount Glass Clamp

C.R. Laurence S0GC37LBBRZ Brushed Bronze Left Hand "Sleeve Over" Wall Mount Glass Clamp is expertly crafted to enhance the stability and aesthetic of your glass installations. Designed for 5/16" to 1/2" (8 to 12 mm) thick monolithic tempered glass, this clamp ensures a secure fit without requiring any special fabrication. Constructed from solid brass, it presents a sleek brushed bronze finish that complements modern design elements. This wall mount glass clamp not only assists with shear forces but also provides critical support while the silicone sealant cures, preventing water leakage and maintaining the integrity of your glass panels. Secured using nylon-tipped Allen set screws, it holds the glass firmly in position, making it a practical choice for both residential and commercial applications. Specifically designed as a left-handed option when viewed from outside the shower, it integrates seamlessly into your existing design. The package includes gaskets for optimal performance, ensuring a tight seal. Please note that these clamps are not a substitute for headers or support bars, and it’s advisable to consult CRL Frameless Shower Technical Sales for further assistance. With its robust construction and elegant finish, the C.R. Laurence Glass Clamp is the ideal solution for achieving both functionality and style in your glass installations.

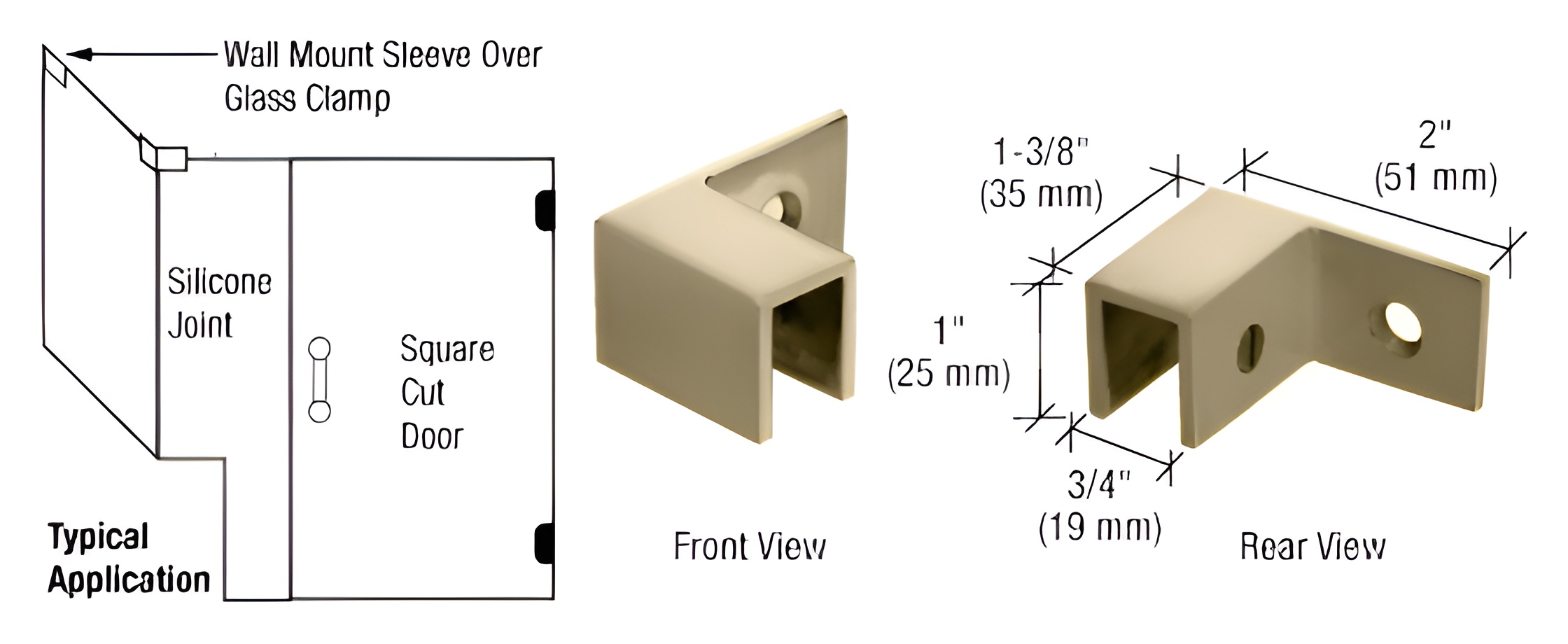

Brushed Bronze Left Hand "Sleeve Over" Wall Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Left-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
