CRL S0GC37LBN Brushed Nickel Left-Hand Wall Mount Glass Clamp

C.R. Laurence S0GC37LBN Brushed Nickel Left Hand "Sleeve Over" Wall Mount Glass Clamp is expertly crafted to provide robust support for glass panels. Designed for use with monolithic tempered glass, this clamp accommodates thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), making it versatile for various installations. The solid brass construction ensures durability while the brushed nickel finish adds a contemporary aesthetic. This clamp is engineered to counteract shear forces acting on the glass, allowing for secure positioning of glass panels during the curing process of silicone sealant. By preventing water leakage and maintaining structural integrity, it enhances the longevity of your installations. The clamp is secured with nylon-tipped Allen set screws, ensuring a tight fit without the need for special glass fabrication. Specifically designed for left-handed applications as viewed from outside the shower, this wall mount clamp includes gaskets for improved sealing. It's important to note that while this clamp provides essential support, it should not replace headers or support bars. For any additional technical inquiries, consulting with CRL Frameless Shower Technical Sales is recommended. Experience the perfect blend of functionality and style with the CRL S0GC37LBN clamp in your next project.

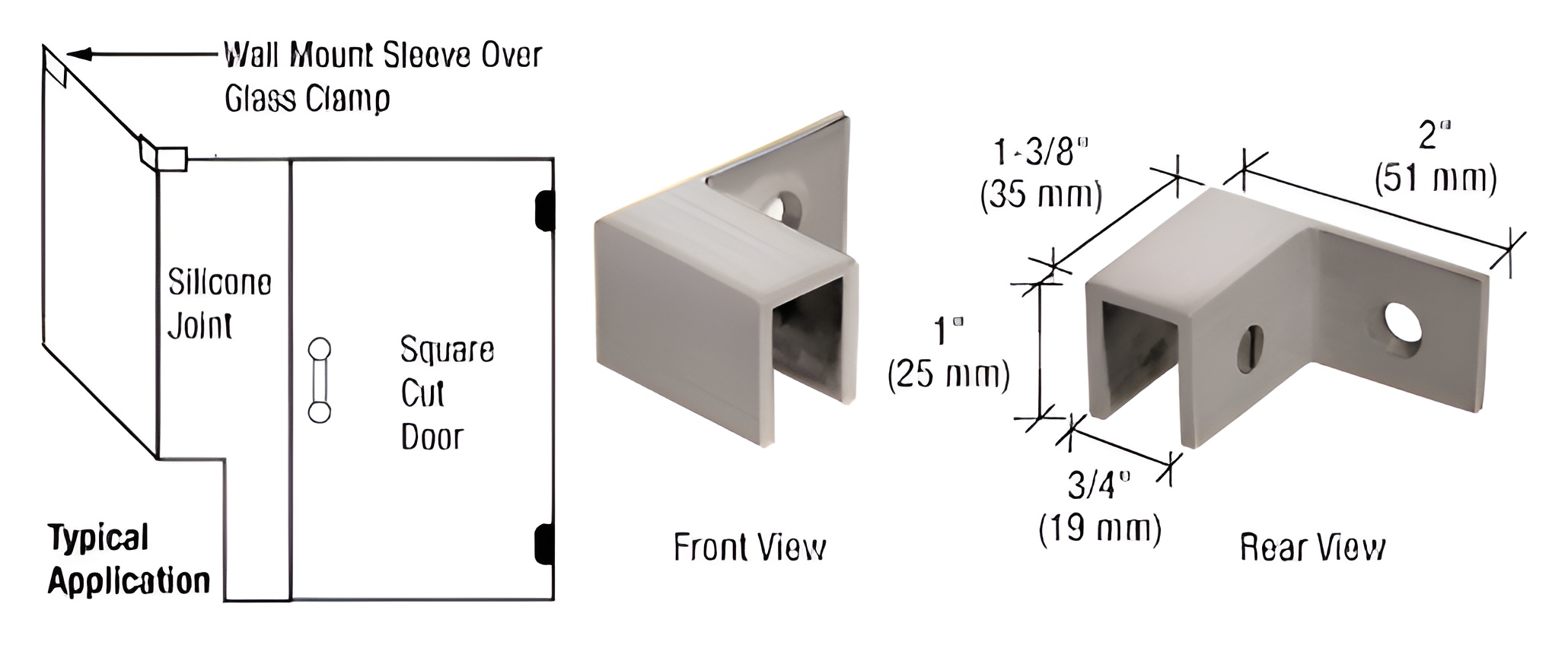

Brushed Nickel Left Hand "Sleeve Over" Wall Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Left-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
