CRL S0GC37LCH Polished Chrome Left-Hand Wall Mount Glass Clamp

C.R. Laurence S0GC37LCH Polished Chrome Left Hand "Sleeve Over" Wall Mount Glass Clamp offers an elegant and durable solution for securing glass panels in place. Designed for use with monolithic tempered glass ranging from 5/16" to 1/2" (8 to 12 mm) thick, this clamp is crafted from solid brass, ensuring both strength and a polished appearance that enhances any modern shower setting. The innovative design of the sleeve over clamp provides a mechanical fastener that effectively manages shear forces acting on the glass panels. It secures the glass using nylon-tipped Allen set screws, providing a reliable hold while the silicone sealant cures, minimizing the risk of water leakage and maintaining structural integrity. Importantly, no special fabrication of the glass is required, making installation straightforward. This clamp is specifically designed for left-handed applications as viewed from outside the shower, offering versatility in layout design. Included gaskets further support a snug fit, while the polished chrome finish adds a touch of sophistication to your glass installations. Please note that these clamps are not intended to replace headers or support bars. For additional assistance, contact CRL Frameless Shower Technical Sales.

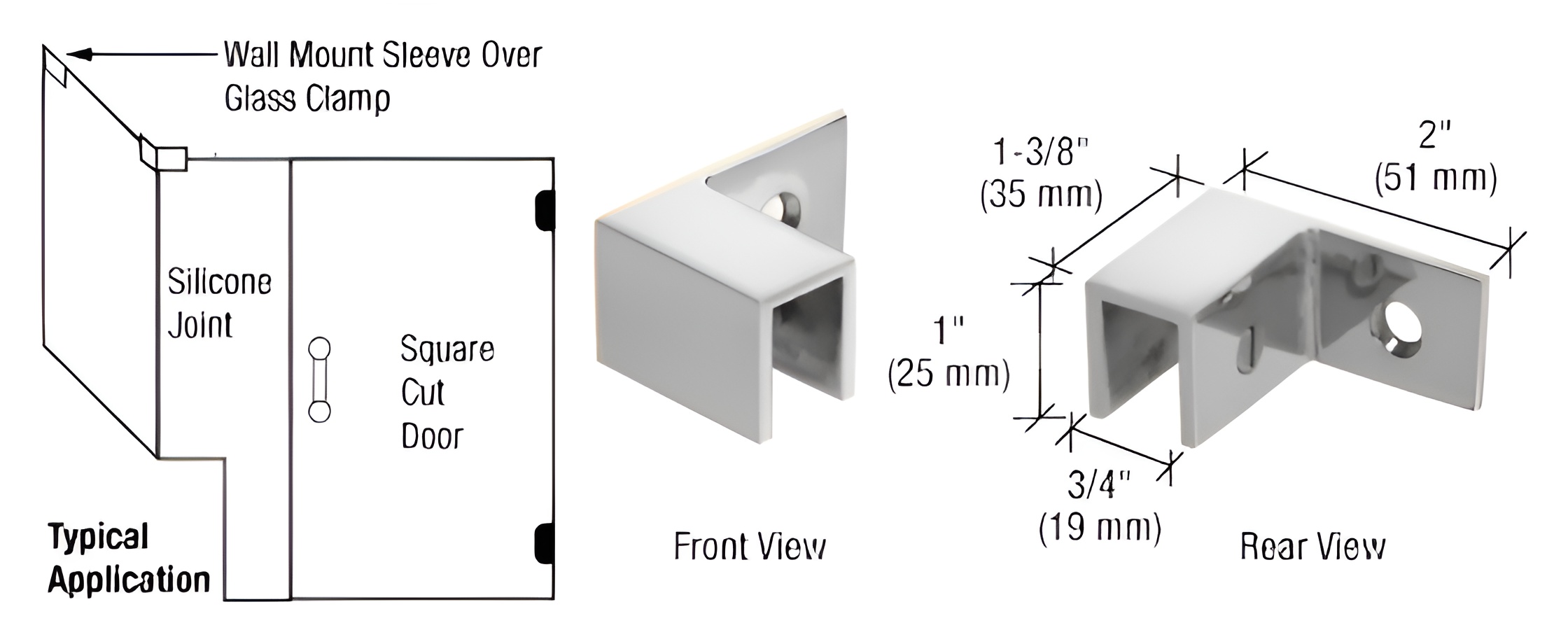

Polished Chrome Left Hand "Sleeve Over" Wall Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Left-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
