CRL S0GC37LSB Satin Brass Left Hand Wall Mount Glass Clamp

C.R. Laurence S0GC37LSB Satin Brass Left Hand "Sleeve Over" Wall Mount Glass Clamp is engineered for reliable performance, accommodating glass thicknesses from 5/16" to 1/2" (8 to 12 mm). Crafted from solid brass, this clamp not only offers durability but also lends an elegant finish, making it an ideal choice for modern shower enclosures and glass installations. Designed to assist with shear forces, the clamp secures glass panels in place while silicone sealant cures, ensuring a watertight seal and preventing separation. The use of nylon-tipped Allen set screws enhances stability, providing a secure attachment without the need for special glass fabrication. This left-handed clamp is specifically configured for installation as viewed from outside the shower, making it a versatile option for various layouts. Included with the clamp are gaskets to enhance the seal and protect the glass. However, it is important to note that these clamps should not replace headers or support bars. For those looking for reliability and aesthetic appeal, the C.R. Laurence S0GC37LSB offers both functionality and style, making it a valuable addition to any architectural project.

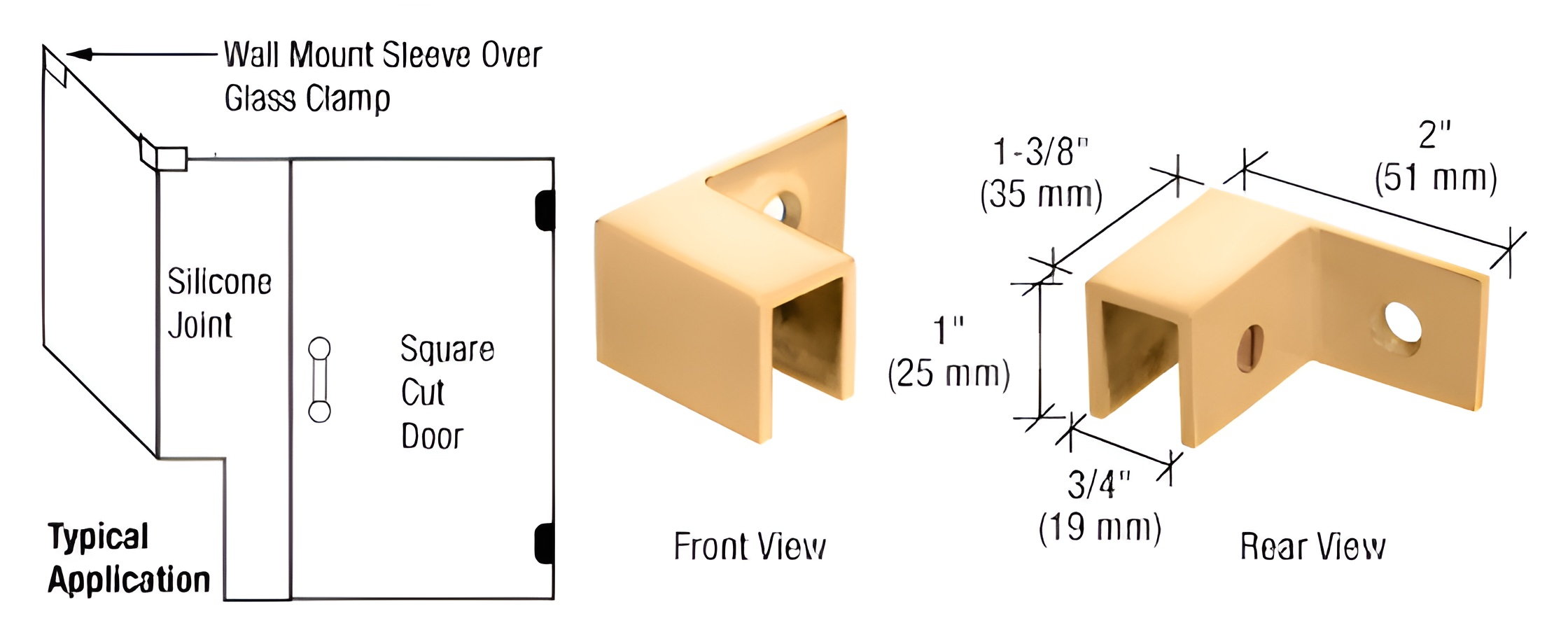

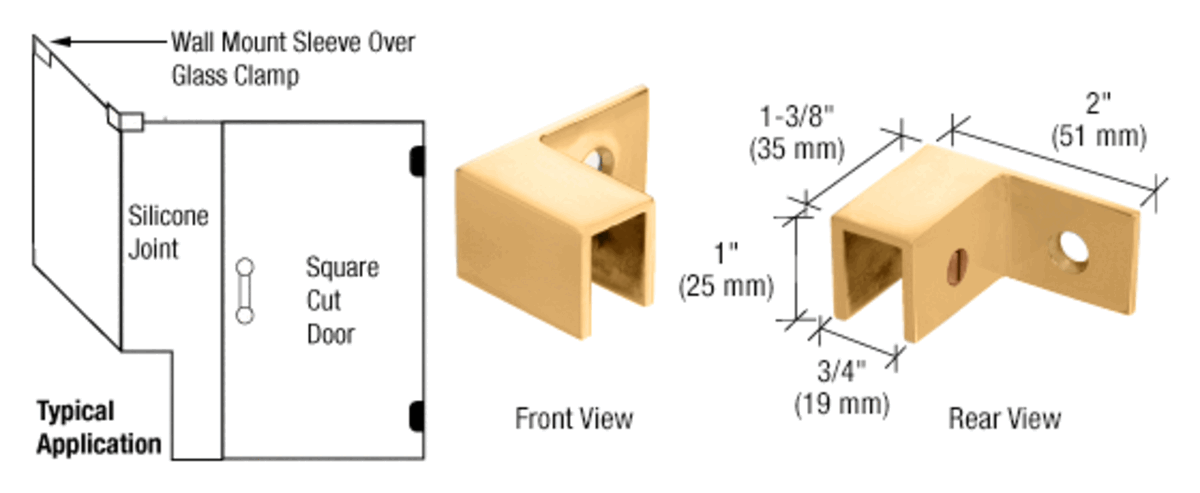

Satin Brass Left Hand "Sleeve Over" Wall Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Left-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
