CRL S0GC37RBBRZ Brushed Bronze Right-Hand Wall Mount Glass Clamp

C.R. Laurence S0GC37RBBRZ Brushed Bronze Right Hand "Sleeve Over" Wall Mount Glass Clamp offers a reliable solution for securing glass panels in a variety of settings. Designed for monolithic tempered glass ranging from 5/16" to 1/2" (8 to 12 mm) thick, this clamp is constructed from solid brass, ensuring durability and resistance to corrosion. The innovative design features nylon-tipped Allen set screws that provide a secure attachment without the need for special glass fabrication. These clamps effectively assist with shear forces, making them ideal for holding glass panels in place while silicone sealant cures, preventing water leakage and ensuring a strong bond between the panels. The right-handed orientation is convenient when viewed from outside the shower, adding to its functional appeal. Each clamp includes gaskets for a snug fit, enhancing performance while maintaining an elegant brushed bronze finish that complements a variety of design aesthetics. It is important to note that this clamp is not intended to replace headers or support bars, and additional guidance can be provided by CRL Frameless Shower Technical Sales. Elevate your glass installation projects with the dependability and style of the C.R. Laurence Brushed Bronze Glass Clamp.

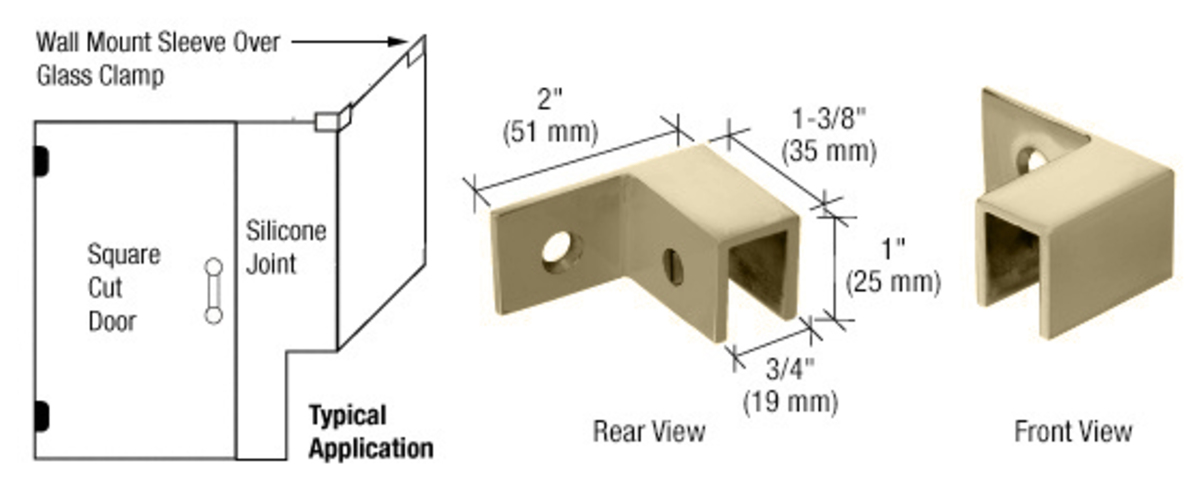

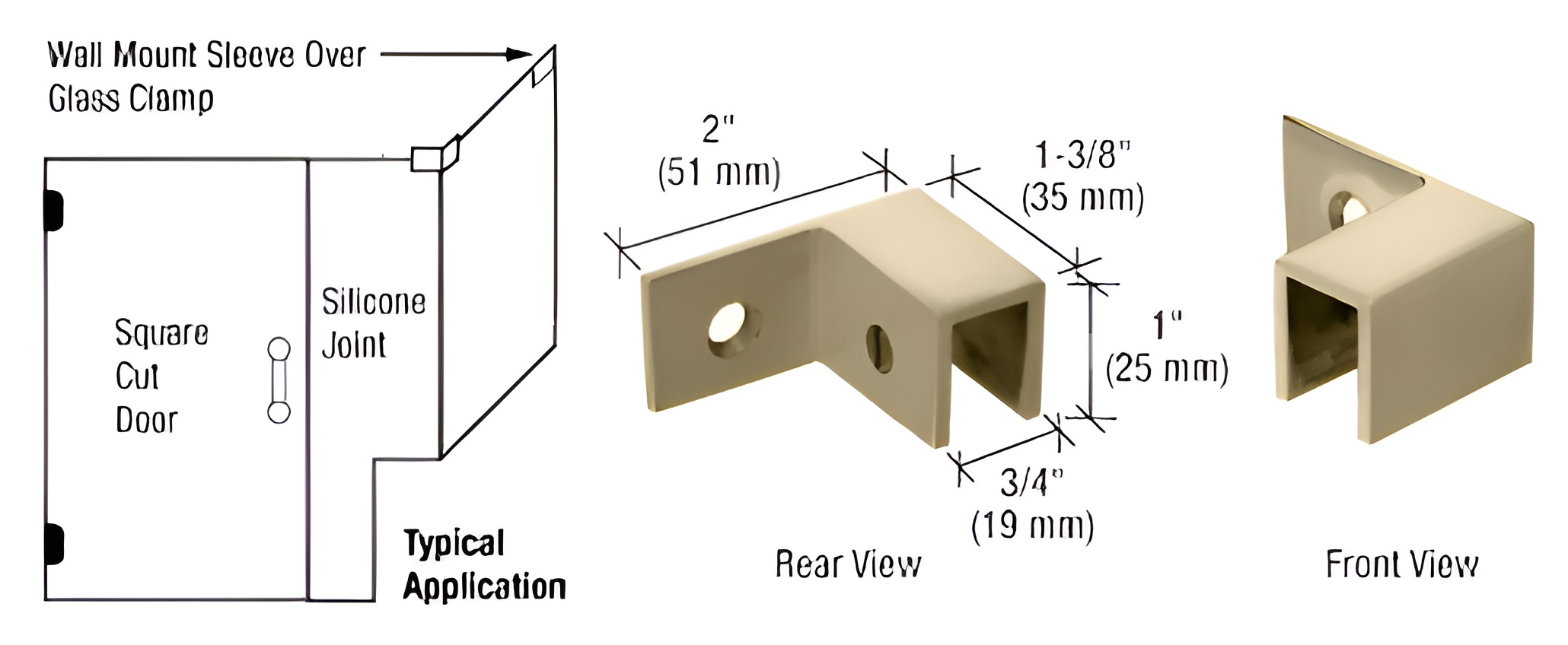

Brushed Bronze Right Hand "Sleeve Over" Wall Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Right-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
