CRL S0GC37RMBL Matte Black Right-Hand Wall Mount Glass Clamp

C.R. Laurence S0GC37RMBL Matte Black Right Hand "Sleeve Over" Wall Mount Glass Clamp is engineered for robust performance and aesthetic appeal in glass installations. Designed to accommodate glass thicknesses from 5/16" to 1/2" (8 to 12 mm), this clamp provides a secure and reliable solution for monolithic tempered glass. Crafted from solid brass, it combines strength with a sleek matte black finish, making it an ideal choice for modern interiors. The clamp is secured to the glass with nylon-tipped Allen set screws, ensuring stability and ease of installation. It effectively assists with shear forces and holds glass panels in position while silicone sealant cures, preventing water leakage and maintaining the integrity of your installation. Notably, no special glass fabrication is required, simplifying the process for builders and contractors. This right-handed clamp is designed for use as viewed from outside the shower, making it a practical choice for frameless shower enclosures. It’s important to note that these clamps are not intended to replace headers or support bars. For additional information, C.R. Laurence’s Frameless Shower Technical Sales team is available to assist. Enhance your glass installations with the durability and elegance of the C.R. Laurence S0GC37RMBL clamp.

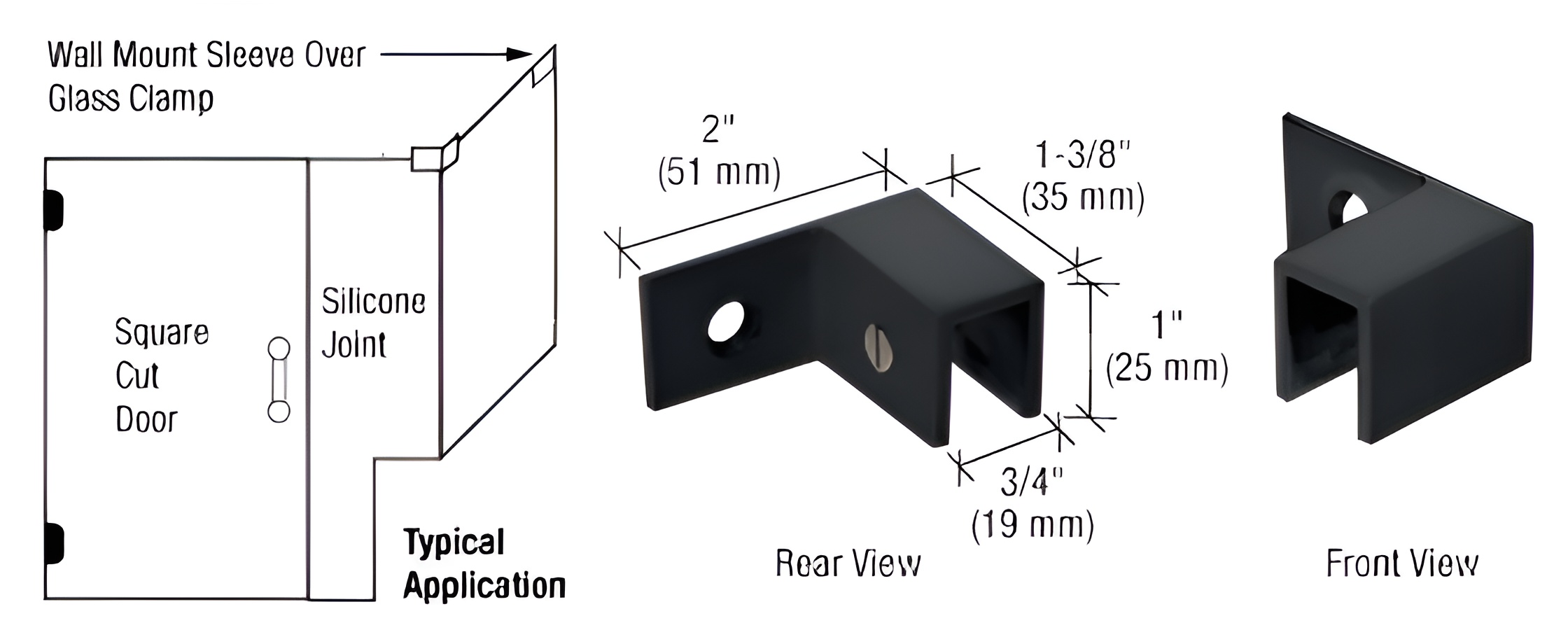

Matte Black Right Hand "Sleeve Over" Wall Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Right-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws
