CRL S0GC37RSB Satin Brass Right Hand Wall Mount Glass Clamp

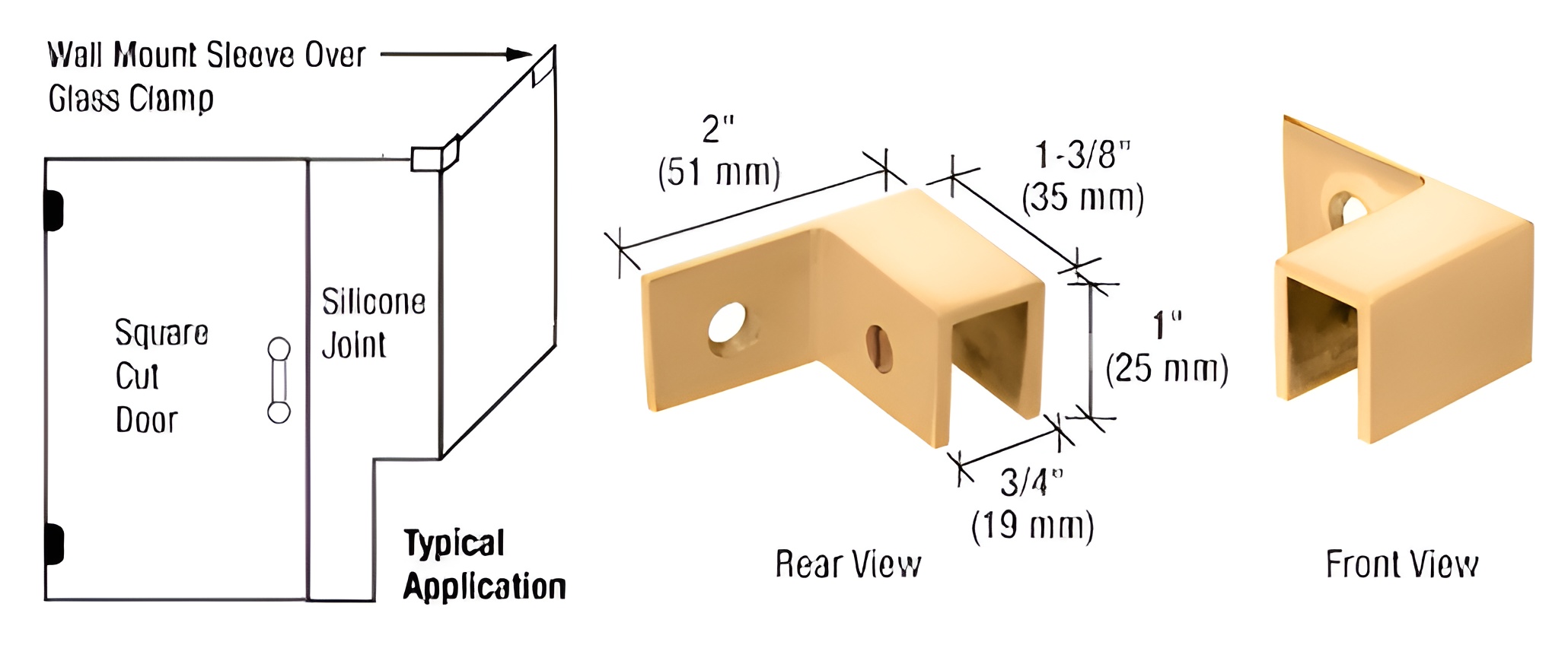

C.R. Laurence S0GC37RSB Satin Brass Right Hand "Sleeve Over" Wall Mount Glass Clamp is expertly engineered to secure glass panels ranging from 5/16" to 1/2" (8 to 12 mm) thick. Crafted from solid brass, this clamp provides a robust mechanical fastening solution, effectively handling shear forces exerted on glass surfaces. Its innovative design allows for installation without the need for special glass fabrication, making it a practical choice for various applications. The clamp is specifically designed for use with monolithic tempered glass and is secured to the glass using nylon tipped Allen set screws, ensuring a tight and reliable fit. Additionally, it holds glass panels in position while silicone sealant cures, preventing water leakage and enhancing the structural integrity of the installation. Designed with a right-hand orientation as viewed from outside the shower, the S0GC37RSB clamp also includes gaskets to further secure the installation. Please note that while this clamp is durable, it is not intended to replace headers or support bars. With its elegant satin brass finish, this clamp not only ensures functionality but also adds a touch of sophistication to any glass enclosure. For a reliable and stylish solution, choose the C.R. Laurence S0GC37RSB clamp for your next project.

Satin Brass Right Hand "Sleeve Over" Wall Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Right-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.

P612** replacement screws

Brass Finish Advisory:
